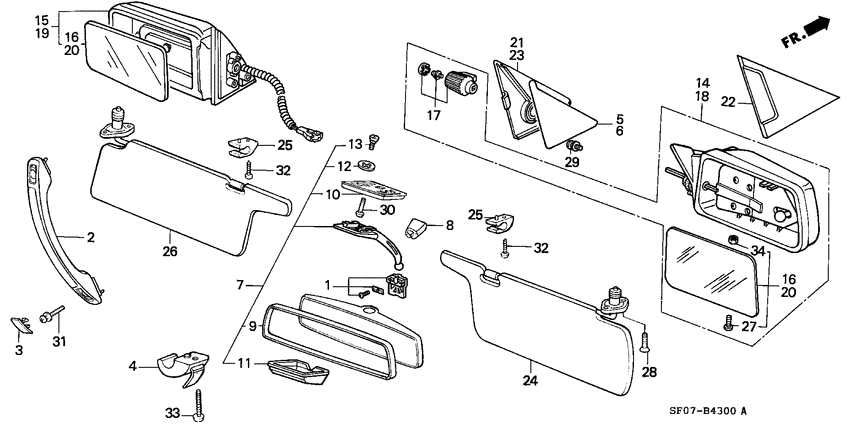

Mirror/sunvisor Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06764-SG0-000
Bracket set
|
06764-SG0-000 |
— | ||
|
2
|
2
71850-SB0-000ZB RailGRAB *B39L* |
71850-SB0-000ZB |
US $22.91 |
||
|
3
|
3
71851-SB0-000ZB
Cap
|
71851-SB0-000ZB |
— | ||
|
4
|
4
71855-SB2-000ZC HangerCOAT *B39L* |
71855-SB2-000ZC |
US $5.04 |
||
|
5
|
5
75827-SB0-670
Seal
|
75827-SB0-670 |
— | ||
|
6
|
6
75837-SB0-670
Seal
|
75837-SB0-670 |
— | ||
|
7
|
7
88140-SB0-033ZB
Mirror
00000000 - 0C300000 |
88140-SB0-033ZB |
— | ||
|
8
|
8
88141-SB0-000
Holder
|
88141-SB0-000 |
— | ||
|
9
|
9
88144-SA6-003ZF
Packing *b39l*
00000000 - 0C300000 |
88144-SA6-003ZF |
— | ||
|
10
|
10
88145-SA5-951 BaseSTAY |
88145-SA5-951 |
US $9.38 |
||
|
11
|
11
88146-SA5-013ZC CoverSTAY *B39L*(MATSUYAMA) 00000000 - 0C300000 |
88146-SA5-013ZC |
US $8.82 |
||
|
12
|
12
88147-SA5-003
Washer
|
88147-SA5-003 |
— | ||
|
13
|
13
88148-SA5-003 BoltLOCK, 6X7 (MATSUYAMA) |
88148-SA5-003 |
US $1.61 |
||
|
14
|
14
88150-SB0-673
Mirror assy
|
88150-SB0-673 |
— | ||
|
16
|
16
88153-SB0-673
Mirror
|
88153-SB0-673 |
— | ||
|
17
|
17
88154-SB0-672
Knob assy
00000000 - 0C300000 |
88154-SB0-672 |
— | ||
|
18
|
18
88155-SB0-673
Mirror assy
|
88155-SB0-673 |
— | ||
|
20
|
20
88158-SB0-673
Mirror
|
88158-SB0-673 |
— | ||
|
21
|
21
88171-SB0-660
Garnish
00000000 - 0C300000 |
88171-SB0-660 |
— | ||
|
23
|
23
88176-SB0-660
Garnish
|
88176-SB0-660 |
— | ||
|
24
|
24
88210-SB0-662ZB
Sunvisor assy.
|
88210-SB0-662ZB |
— | ||
|
25
|
25
88217-SB0-000ZE
Holder
|
88217-SB0-000ZE |
— | ||
|
26
|
26
88220-SB0-662ZB
Sunvisor assy.
|
88220-SB0-662ZB |
— | ||
|
27
|
27
93500-040-164-J ScrewPAN, 4X16 00000000 - 0C300000 |
93500-040-164-J |
from US $0.52 |
||
|
28
|
28
93600-050-160-A ScrewFLAT, 5X16 |
93600-050-160-A |
from US $0.37 |
||
|
29
|
29
93891-050-120-8 Screw-washer5X12 00000000 - 0C300000 |
93891-050-120-8 |
from US $0.44 |
||
|
31
|
31
93891-050-200-8 Screw-washer5X20 00000000 - 0C300000 |
93891-050-200-8 |
from US $0.44 |
||
|
32
|
32
93901-15310
Screw
|
93901-15310 |
— | ||
|
33
|
33
93903-25680 ScrewTAPPING, 5X30 |
93903-25680 |
US $0.44 |
||
|
34
|
34
94001-044-900-S NutHEX., 4MM |
94001-044-900-S |
US $0.52 |
