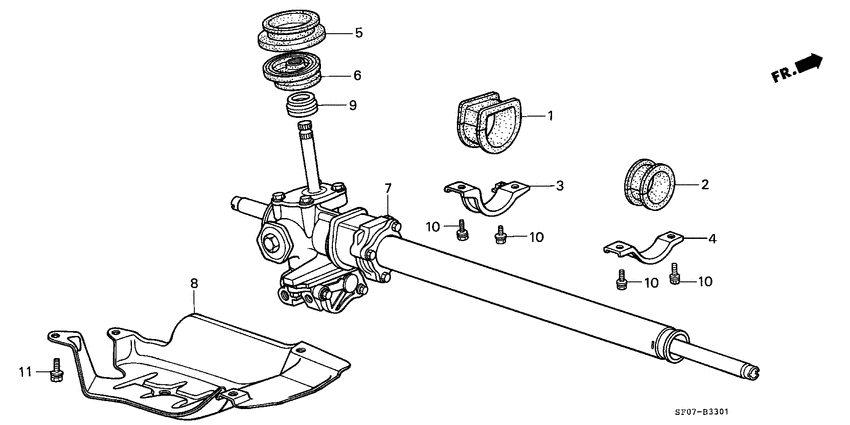

P.s. gear box Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53435-SB0-951 Cushion aPOWER STEERING GEAR BOX 00000000 - 0C300000 |
53435-SB0-951 |
US $9.24 |
||
|
2
|
2
53436-SA5-950 Cushion bPOWER STEERING GEAR BOX |
53436-SA5-950 |
US $9.10 |
||
|
3
|
3
53437-SB0-670
Bracket a
|
53437-SB0-670 |
— | ||
|
4
|
4
53438-SB0-950
Bracket b
|
53438-SB0-950 |
— | ||
|
5
|
5
53501-SB0-000
Grommet a
|
53501-SB0-000 |
— | ||
|
6
|
6
53502-SB0-000
Grommet b
|
53502-SB0-000 |
— | ||
|
7
|
7
53601-SB0-675 Box assyPOWER STEERING GEAR 00000000 - 0C300000 |
53601-SB0-675 |
US $1,429.76 |
||
|
8
|
8
53692-SB0-670
Guard
|
53692-SB0-670 |
— | ||
|
9
|
9
53760-SA5-950
Rubber
|
53760-SA5-950 |
— | ||
|
10
|
10
93482-080-200-8 Bolt-washer8X20 |
93482-080-200-8 |
from US $0.59 |
||
|
11
|
11
93492-060-120-8 Bolt-washer6X12 |
93492-060-120-8 |
from US $0.52 |
||
| replacement | |||||
|
11
|
11
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
