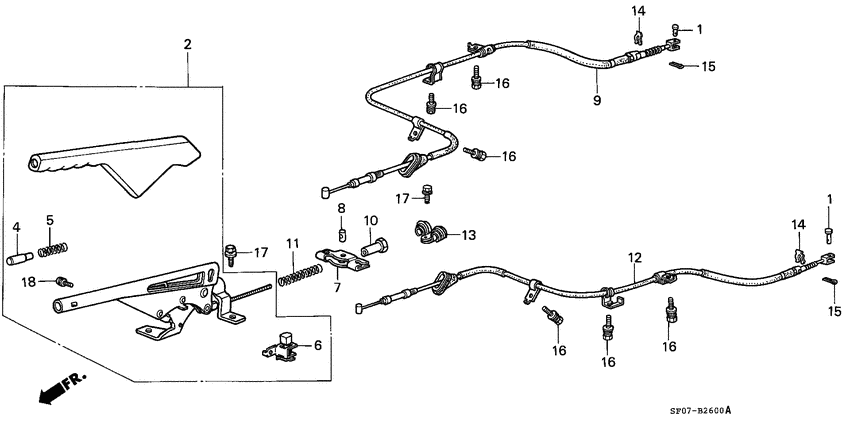

Parking brake Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43471-SB0-000 PinBRAKE WIRE END 00000000 - 0C215668 |
43471-SB0-000 |
US $2.94 |
||
|
1
|
1
43471-SD2-930 PinBRAKE WIRE END 0C215669 - |
43471-SD2-930 |
US $1.92 |
||
|
2
|
2
47105-SB0-000ZA
Lever assy.
00000000 - 0C300000 |
47105-SB0-000ZA |
— | ||
|
4
|
4
47142-659-310 KnobPARKING BRAKE PUSH ROD |
47142-659-310 |
from US $4.07 |
||
|
5
|
5
47143-671-310 SpringPUSH ROD |
47143-671-310 |
from US $4.07 |
||
|
6
|
6
47342-SA5-013
Switch
|
47342-SA5-013 |
— | ||
|
7
|
7
47360-SB2-000 Equalizer |
47360-SB2-000 |
from US $6.44 |
||
|
8
|
8
47365-538-000 PinEQUALIZER |
47365-538-000 |
from US $3.08 |
||
|
9
|
9
47510-SB0-033
Wire a
00000000 - 0C300000 |
47510-SB0-033 |
— | ||
|
10
|
10
47522-594-000 NutPARKING BRAKE ADJUSTING |
47522-594-000 |
US $3.34 |
||
|
11
|
11
47537-671-670 SpringPARKING BRAKE ROD |
47537-671-670 |
US $4.49 |
||
|
12
|
12
47560-SB0-033
Wire a
00000000 - 0C300000 |
47560-SB0-033 |
— | ||
|
13
|
13
47572-SB0-300
Base
|
47572-SB0-300 |
— | ||
|
14
|
14
90651-538-000 ClipBRAKE HOSE |
90651-538-000 |
from US $2.74 |
||
|
15
|
15
90705-SB0-000 PinLOCK, 6MM 00000000 - 0C215668 |
90705-SB0-000 |
US $2.94 |
||
|
15
|
15
90705-SD2-931 PinSNAP, 6MM 0C215669 - 0C300000 |
90705-SD2-931 |
from US $1.63 |
||
|
16
|
16
93482-060-120-8 Bolt-washer6X12 |
93482-060-120-8 |
from US $0.52 |
||
| replacement | |||||
|
16
|
16
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
17
|
17
93482-080-200-8 Bolt-washer8X20 |
93482-080-200-8 |
from US $0.59 |
||
|
18
|
18
93892-040-120-8 Screw-washer4X12 |
93892-040-120-8 |
from US $0.49 |
||
