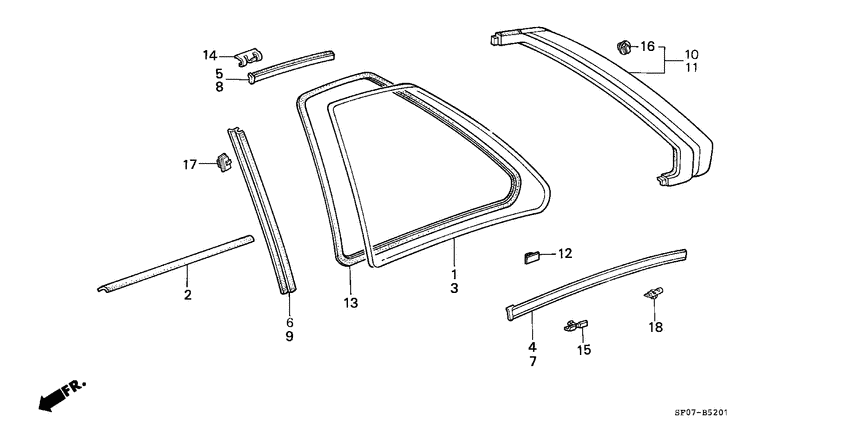

Quarter window Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73101-SB0-000
Glass
|
73101-SB0-000 |
— | ||
|
2
|
2
73102-SB0-000
Rubber
|
73102-SB0-000 |
— | ||
|
3
|
3
73201-SB0-000
Glass
|
73201-SB0-000 |
— | ||
|
4
|
4
73801-SB0-000
Molding
|
73801-SB0-000 |
— | ||
|
5
|
5
73803-SB0-000
Molding
|
73803-SB0-000 |
— | ||
|
6
|
6
73804-SB0-000
Molding
|
73804-SB0-000 |
— | ||
|
7
|
7
73806-SB0-000
Molding
|
73806-SB0-000 |
— | ||
|
8
|
8
73808-SB0-000
Molding
|
73808-SB0-000 |
— | ||
|
9
|
9
73809-SB0-000
Molding
|
73809-SB0-000 |
— | ||
|
10
|
10
73812-SB0-000
Molding
00000000 - 0C300000 |
73812-SB0-000 |
— | ||
| replacement | |||||
|
10
|
10
73812-SB0-010
Molding
00000000 - 0C300000 |
73812-SB0-010 |
— | ||
|
11
|
11
73817-SB0-000
Molding
00000000 - 0C300000 |
73817-SB0-000 |
— | ||
| replacement | |||||
|
11
|
11
73817-SB0-010
Molding
00000000 - 0C300000 |
73817-SB0-010 |
— | ||
|
12
|
12
73851-647-660
Clip
|
73851-647-660 |
— | ||
|
13
|
13
73861-SB0-000ZD
Trim
00000000 - 0C300000 |
73861-SB0-000ZD |
— | ||
|
13
|
13
73861-SB0-000ZE
Trim
00000000 - 0C300000 |
73861-SB0-000ZE |
— | ||
|
14
|
14
90656-SB0-013
Clip
|
90656-SB0-013 |
— | ||
|
15
|
15
90658-SB0-003
Clip
|
90658-SB0-003 |
— | ||
|
16
|
16
90659-SB0-003
Clip
|
90659-SB0-003 |
— | ||
|
17
|
17
90712-SB0-003
Clip
|
90712-SB0-003 |
— | ||
|
18
|
18
90713-SB0-003
Clip
|
90713-SB0-003 |
— | ||
