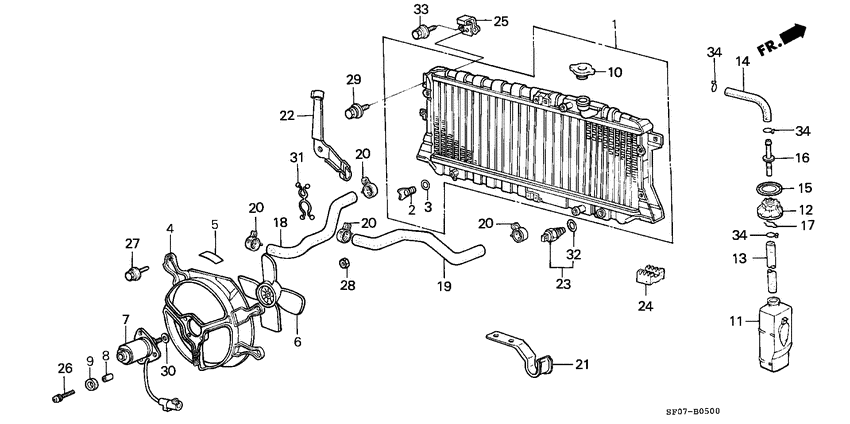

Radiator Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19010-PC7-662 Radiator comp. |
19010-PC7-662 |
US $1,332.48 |
||
|
2
|
2
19011-671-000
Bolt
|
19011-671-000 |
— | ||
|
3
|
3
19012-671-300 PackingDRAIN (DENSO) |
19012-671-300 |
from US $1.85 |
||
|
4
|
4
19015-PC6-013
Shroud comp.
|
19015-PC6-013 |
— | ||
|
5
|
5
19018-657-000
Label
|
19018-657-000 |
— | ||
|
6
|
6
19020-PC6-003
Fan
|
19020-PC6-003 |
— | ||
|
7
|
7
19030-PC6-003 MotorFAN 00000000 - 0C300000 |
19030-PC6-003 |
US $282.88 |
||
|
8
|
8
19040-611-003
Bush
|
19040-611-003 |
— | ||
| replacement | |||||
|
8
|
8
N9491-940-040
Collar
|
N9491-940-040 |
— | ||
|
9
|
9
19041-611-003 RubberBUSHING |
19041-611-003 |
from US $2.29 |
||
|
10
|
10
19045-692-003 Cap comp.RADIATOR (DENSO) |
19045-692-003 |
from US $33.46 |
||
|
11
|
11
19101-PC6-010
Tank
|
19101-PC6-010 |
— | ||
|
12
|
12
19102-PA0-020 CapRESERVE TANK |
19102-PA0-020 |
from US $9.52 |
||
|
13
|
13
19103-PC6-000 HoseRESERVE TANK |
19103-PC6-000 |
US $9.66 |
||
|
14
|
14
19104-PC6-010
Tube
|
19104-PC6-010 |
— | ||
|
15
|
15
19105-PA0-010 MarkRESERVE TANK |
19105-PA0-010 |
from US $3.43 |
||
|
16
|
16
19106-689-000 JointRESERVE TANK |
19106-689-000 |
from US $5.60 |
||
|
17
|
17
19107-PA0-000 ClipRESERVE TANK JOINT |
19107-PA0-000 |
from US $1.96 |
||
|
18
|
18
19501-PC6-000
Hose
|
19501-PC6-000 |
— | ||
|
19
|
19
19502-PC6-901
Hose
|
19502-PC6-901 |
— | ||
|
20
|
20
19511-PA6-003 ClipWATER HOSE(CHUO SPRING) |
19511-PA6-003 |
from US $3.70 |
||
|
22
|
22
36533-PC7-000
Clamp a
|
36533-PC7-000 |
— | ||
|
23
|
23
37773-PB1-003
Switch assy
00000000 - 0C300000 |
37773-PB1-003 |
— | ||
|
24
|
24
60785-SB0-000
Cushion a
|
60785-SB0-000 |
— | ||
|
25
|
25
60866-SB0-000
Cushion b
|
60866-SB0-000 |
— | ||
|
26
|
26
90041-PA6-003 Screw-washer4X18 (DENSO) |
90041-PA6-003 |
US $2.94 |
||
|
27
|
27
90042-PC1-003 Bolt-washer6X14 (DENSO) |
90042-PC1-003 |
US $2.66 |
||
|
28
|
28
90043-PD2-003 NutHEX., 5MM (DENSO) |
90043-PD2-003 |
from US $2.44 |
||
|
29
|
29
90128-692-000
Bolt-washer
|
90128-692-000 |
— | ||
|
30
|
30
90403-679-003 WasherPLAIN, 6.8MM (DENSO) |
90403-679-003 |
US $4.23 |
||
| replacement | |||||
|
30
|
30
90501-671-003 WasherSPECIAL |
90501-671-003 |
US $7.33 |
||
|
31
|
31
90647-PC6-003
Clip
|
90647-PC6-003 |
— | ||
|
32
|
32
91307-611-000 O-ring13.5X1.4 |
91307-611-000 |
from US $1.55 |
||
| replacement | |||||
|
32
|
32
91307-PH7-660 O-ring13.5X1.4 |
91307-PH7-660 |
from US $2.44 |
||
|
33
|
33
93491-060-160-8 Bolt-washer6X16 |
93491-060-160-8 |
US $0.52 |
||
|
34
|
34
95002-70000 ClipTUBE (C11) |
95002-70000 |
from US $0.44 |
||
