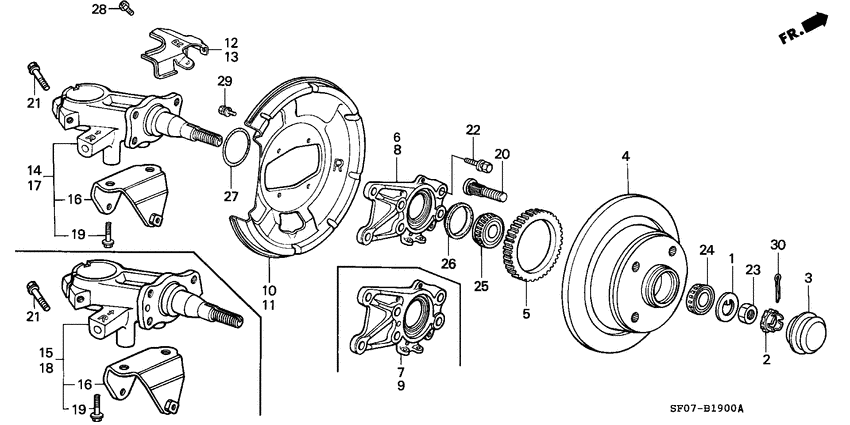

Rear brake disk Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42324-671-010
Washer
|
42324-671-010 |
— | ||
|
2
|
2
42325-671-000
Holder
|
42325-671-000 |
— | ||
|
3
|
3
42326-SA0-000 CapHUB |
42326-SA0-000 |
US $9.24 |
||
|
4
|
4
42510-SA5-950 DiskRR. BRAKE |
42510-SA5-950 |
US $211.20 |
||
|
6
|
6
43250-SB0-951 BracketR. CALIPER 00000000 - 0C300000 |
43250-SB0-951 |
US $42.88 |
||
|
8
|
8
43251-SB0-951 BracketL. CALIPER 00000000 - 0C300000 |
43251-SB0-951 |
US $42.88 |
||
|
10
|
10
43253-SB0-984
Guard
|
43253-SB0-984 |
— | ||
|
11
|
11
43254-SB0-984
Guard
|
43254-SB0-984 |
— | ||
|
12
|
12
43255-SA5-952
Protector
00000000 - 0C300000 |
43255-SA5-952 |
— | ||
|
13
|
13
43256-SA5-952
Protector
00000000 - 0C300000 |
43256-SA5-952 |
— | ||
|
14
|
14
52210-SB0-010
Carrier comp.
|
52210-SB0-010 |
— | ||
|
16
|
16
52212-SB0-300
Bracket
|
52212-SB0-300 |
— | ||
|
17
|
17
52215-SB0-010
Carrier comp.
|
52215-SB0-010 |
— | ||
|
19
|
19
90102-SA5-000
Bolt
|
90102-SA5-000 |
— | ||
|
20
|
20
90113-SA0-023 BoltWHEEL (TOKAI TRW) |
90113-SA0-023 |
US $2.96 |
||
| replacement | |||||
|
20
|
20
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
20
|
20
90113-SA0-015 BoltWHEEL (NAGOYA RASHI) |
90113-SA0-015 |
US $2.96 |
||
| replacement | |||||
|
20
|
20
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
21
|
21
90120-SB0-003 BoltSHOCK ABSORBER LOCK, 10X42 |
90120-SB0-003 |
US $4.29 |
||
|
22
|
22
90199-692-000 Bolt-washer8X25 00000000 - 0C300000 |
90199-692-000 |
US $3.22 |
||
|
23
|
23
90402-SA0-000
Nut
|
90402-SA0-000 |
— | ||
|
24
|
24
91052-671-008
Bearing assy
|
91052-671-008 |
— | ||
|
24
|
24
91052-671-004
Bearing assy
|
91052-671-004 |
— | ||
|
25
|
25
91053-671-008
Bearing assy
|
91053-671-008 |
— | ||
|
25
|
25
91053-671-004 Bearing assyRR. HUB (B) (KOYO SEIKO) |
91053-671-004 |
US $32 |
||
|
26
|
26
91252-692-931
Seal
|
91252-692-931 |
— | ||
|
27
|
27
91352-692-003
O-ring
|
91352-692-003 |
— | ||
|
28
|
28
92300-06010-0A BoltRECESSED, 6X10 |
92300-06010-0A |
from US $0.52 |
||
| replacement | |||||
|
28
|
28
92301-06010-0A Bolt (6x10) |
92301-06010-0A |
from US $0.52 |
||
|
29
|
29
93493-060-120-8 Bolt-washer6X12 |
93493-060-120-8 |
from US $0.59 |
||
| replacement | |||||
|
29
|
29
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
30
|
30
94201-40250 PinSPLIT, 4.0X25 |
94201-40250 |
from US $0.44 |
||
