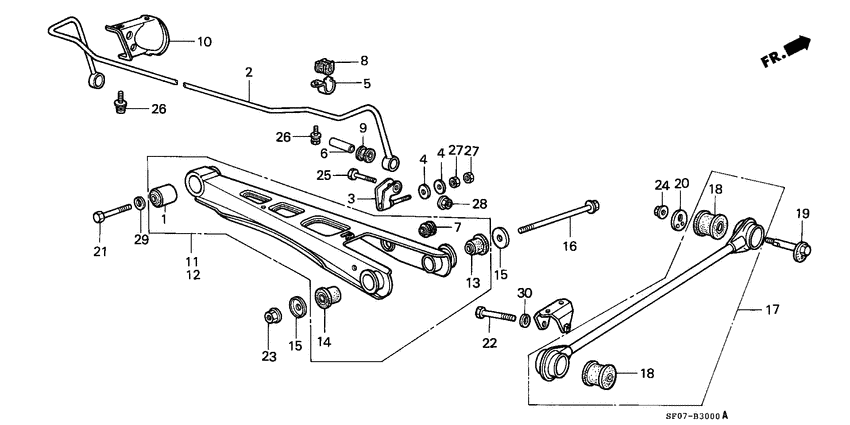

Rear stabilizer/ rear lower arm Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52355-SA5-672
Bush comp
|
52355-SA5-672 |
— | ||
|
2
|
2
52300-SB0-000
Spring
|
52300-SB0-000 |
— | ||
|
3
|
3
52306-SB0-000 LinkRR. STABILIZER 00000000 - 0C217175 |
52306-SB0-000 |
US $19.58 |
||
|
3
|
3
52306-SB0-010
Link
0C217176 - |
52306-SB0-010 |
— | ||
|
4
|
4
52307-SB0-000
Washer
00000000 - 0C217175 |
52307-SB0-000 |
— | ||
|
4
|
4
52307-SB0-010
Washer
0C217176 - |
52307-SB0-010 |
— | ||
|
5
|
5
52308-SA5-000 BracketL. RR. STABILIZER LOWER BUSH |
52308-SA5-000 |
US $3.57 |
||
|
6
|
6
52312-SA5-000 CollarSTABILIZER INNER BUSH END |
52312-SA5-000 |
US $2.94 |
||
|
7
|
7
52314-SB0-000
Bush
00000000 - 0C217175 |
52314-SB0-000 |
— | ||
|
7
|
7
52314-SB0-010
Bush
0C217176 - |
52314-SB0-010 |
— | ||
|
8
|
8
52315-SB0-000
Bush
|
52315-SB0-000 |
— | ||
|
9
|
9
52316-SA5-000 BushSTABILIZER END |
52316-SA5-000 |
from US $2.57 |
||
|
10
|
10
52318-SB0-000
Bracket
|
52318-SB0-000 |
— | ||
|
11
|
11
52350-SB0-621
Arm comp
|
52350-SB0-621 |
— | ||
|
12
|
12
52360-SB0-621
Arm comp
|
52360-SB0-621 |
— | ||
|
13
|
13
52361-SB0-000
Bush b
|
52361-SB0-000 |
— | ||
|
14
|
14
52361-634-941
Bush a
|
52361-634-941 |
— | ||
|
15
|
15
52364-634-020
Washer
|
52364-634-020 |
— | ||
|
16
|
16
52366-SB0-000 BoltHUB CARRIER 00000000 - 0C400000 |
52366-SB0-000 |
US $13.31 |
||
|
17
|
17
52370-SA5-672
Rod assy
|
52370-SA5-672 |
— | ||
|
18
|
18
52384-SB0-014
Bush
|
52384-SB0-014 |
— | ||
|
19
|
19
52385-SB0-000
Bolt
|
52385-SB0-000 |
— | ||
|
20
|
20
52388-SB0-000
Plate a
|
52388-SB0-000 |
— | ||
|
21
|
21
90118-SB0-003 BoltLOWER ARM, (10X79) (JYUJI) |
90118-SB0-003 |
US $9.24 |
||
|
22
|
22
90124-SB0-004
Bolt
|
90124-SB0-004 |
— | ||
|
23
|
23
90215-SB0-003 NutSELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
90215-SB0-003 |
from US $3.20 |
||
|
24
|
24
90216-SB0-004 NutRR. RADIUS ROD, 10MM |
90216-SB0-004 |
US $5.04 |
||
|
25
|
25
92200-08035-0H BoltHEX., 8X35 |
92200-08035-0H |
US $0.59 |
||
|
26
|
26
93492-080-160-8 Bolt-washer8X16 |
93492-080-160-8 |
from US $0.59 |
||
| replacement | |||||
|
26
|
26
93402-080-160-8 Bolt-washer8X16 |
93402-080-160-8 |
from US $0.67 |
||
|
27
|
27
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
27
|
27
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
28
|
28
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
29
|
29
94111-10800 WasherSPRING, 10MM |
94111-10800 |
from US $0.44 |
||
|
30
|
30
94111-12800 WasherSPRING, 12MM |
94111-12800 |
from US $0.44 |
||
