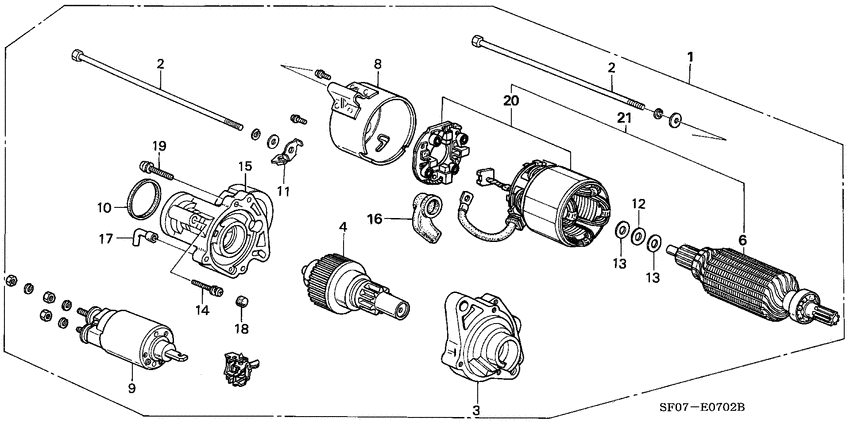

Starter motor component (MITSUBA) Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31200-PC6-664 Motor assy.STARTER (MITSUBA) (SM-302-08) 2540052 - |
31200-PC6-664 |
US $1,209.60 |
||
|
1
|
1
31200-PC6-663 Motor assy.STARTER (MITSUBA) (SM-302-08) 00000000 - 2540051 |
31200-PC6-663 |
US $1,209.60 |
||
|
2
|
2
31202-PC2-681 BoltTHROUGH (###) |
31202-PC2-681 |
US $9.21 |
||
|
3
|
3
31203-PD2-016 CoverGEAR 00000000 - 2540051 |
31203-PD2-016 |
US $111.36 |
||
|
3
|
3
31203-PD2-026
Cover
2540052 - |
31203-PD2-026 |
— | ||
|
4
|
4
31204-PC2-016 Gear assy.PINION |
31204-PC2-016 |
US $410.88 |
||
|
8
|
8
31209-PC2-682 CoverRR. 00000000 - 2540051 |
31209-PC2-682 |
US $48.64 |
||
|
8
|
8
31209-PG6-913
Cover
2540052 - |
31209-PG6-913 |
— | ||
|
9
|
9
31210-PD2-016
Switch assy
00000000 - 2540051 |
31210-PD2-016 |
— | ||
|
9
|
9
31210-PD2-026
Switch assy
2540052 - |
31210-PD2-026 |
— | ||
|
10
|
10
31211-PC2-006
Ring
|
31211-PC2-006 |
— | ||
|
11
|
11
31213-PC6-000
Stay
|
31213-PC6-000 |
— | ||
|
14
|
14
31217-PC2-006 Screw-washer4X28 (MITSUBA) |
31217-PC2-006 |
from US $1.47 |
||
|
15
|
15
31229-PC2-016
Case comp.
|
31229-PC2-016 |
— | ||
|
16
|
16
31235-PD2-016 CoverTERMINAL (MITSUBA) |
31235-PD2-016 |
US $4.90 |
||
|
17
|
17
31251-PD2-016 TubeLABYRINTH |
31251-PD2-016 |
US $3.11 |
||
|
18
|
18
31252-PD2-006 RubberBUSH (MITSUBA) |
31252-PD2-006 |
from US $1.96 |
||
|
19
|
19
93892-060-281-8 Screw-washer6X28 |
93892-060-281-8 |
US $0.59 |
||
|
21
|
21
31260-PK2-006
Stator set
00000000 - 4700000 |
31260-PK2-006 |
— |
