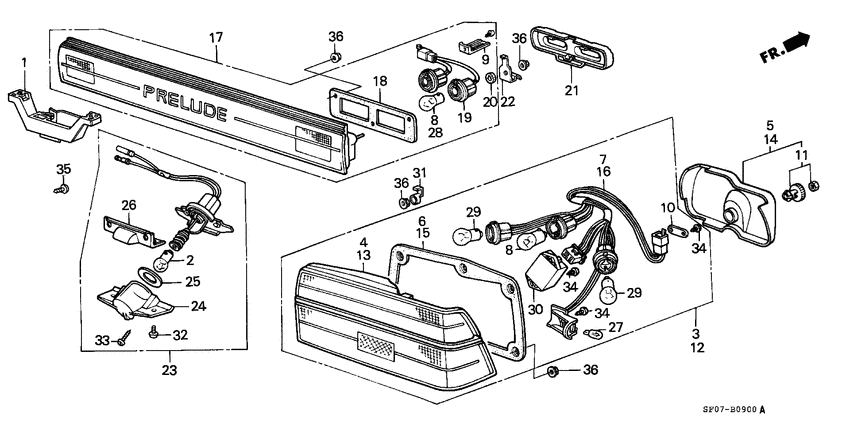

Taillight/back light Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32813-SB0-670
Clip
00000000 - 0C400000 |
32813-SB0-670 |
— | ||
|
2
|
2
34909-505-003 Bulb12V8W |
34909-505-003 |
US $37.40 |
||
| replacement | |||||
|
2
|
2
34904-634-611 BULB (12V 5W) (ECE)(12V, 5W) ECE |
34904-634-611 |
from US $1.41 |
||
|
3
|
3
33500-SB0-672
Taillight assy.
|
33500-SB0-672 |
— | ||
|
4
|
4
33501-SB0-671 Lens & housing comp.R. TAILLIGHT |
33501-SB0-671 |
US $263.68 |
||
|
5
|
5
33502-SB0-003
Cover assy.
|
33502-SB0-003 |
— | ||
|
6
|
6
33502-SB0-671
Packing
|
33502-SB0-671 |
— | ||
|
7
|
7
33503-SB0-671
Cord comp
|
33503-SB0-671 |
— | ||
|
8
|
8
34903-634-671 Bulb12V27W |
34903-634-671 |
US $2.17 |
||
|
9
|
9
33507-SA0-003
Stay
00000000 - 0C300000 |
33507-SA0-003 |
— | ||
|
10
|
10
33507-SB0-671
Stay
|
33507-SB0-671 |
— | ||
|
11
|
11
33509-692-003ZJ NutSPECIAL *NH22L* |
33509-692-003ZJ |
US $2.80 |
||
|
12
|
12
33550-SB0-672
Taillight assy.
|
33550-SB0-672 |
— | ||
|
13
|
13
33551-SB0-671 Lens & housing comp.L. TAILLIGHT |
33551-SB0-671 |
US $263.68 |
||
|
14
|
14
33552-SB0-013
Cover assy.
|
33552-SB0-013 |
— | ||
|
15
|
15
33552-SB0-671 PackingL. BASE |
33552-SB0-671 |
US $35.33 |
||
|
16
|
16
33553-SB0-671
Cord comp
|
33553-SB0-671 |
— | ||
|
17
|
17
33700-SB0-672
Garnish
|
33700-SB0-672 |
— | ||
|
18
|
18
33702-SB0-671
Packing
|
33702-SB0-671 |
— | ||
|
19
|
19
33703-SB0-671
Cord comp
|
33703-SB0-671 |
— | ||
|
20
|
20
33704-SB0-671
Packing
|
33704-SB0-671 |
— | ||
|
21
|
21
33705-SB0-000
Cover
|
33705-SB0-000 |
— | ||
|
22
|
22
33706-SB0-000
Spring
|
33706-SB0-000 |
— | ||
|
23
|
23
34100-SB0-672
Light assy
|
34100-SB0-672 |
— | ||
|
24
|
24
34101-SA4-901
Lens
|
34101-SA4-901 |
— | ||
|
25
|
25
34102-SA4-901
Packing
|
34102-SA4-901 |
— | ||
|
26
|
26
34104-SB0-672
Stay
|
34104-SB0-672 |
— | ||
|
27
|
27
34901-SB0-671 Bulb12V 5W 3CP) (STANLEY |
34901-SB0-671 |
from US $0.99 |
||
|
29
|
29
34906-341-671 BulbTAILLIGHT (12V 32/3CP) |
34906-341-671 |
US $4.27 |
||
| replacement | |||||
|
29
|
29
34906-MG9-771 Bulb (12v27/7w) |
34906-MG9-771 |
from US $5.10 |
||
|
30
|
30
37540-689-672
Sensor
|
37540-689-672 |
— | ||
|
31
|
31
90607-SB0-000
Clip
|
90607-SB0-000 |
— | ||
|
32
|
32
91500-SB0-671
Screw
|
91500-SB0-671 |
— | ||
|
33
|
33
93901-22320 ScrewTAPPING, 3X12 |
93901-22320 |
from US $0.37 |
||
|
34
|
34
93901-24320 ScrewTAPPING, 4X12 |
93901-24320 |
from US $0.37 |
||
|
35
|
35
93901-24420 ScrewTAPPING, 4X16 |
93901-24420 |
from US $0.37 |
||
|
36
|
36
94071-05080 Nut-washer5MM |
94071-05080 |
from US $0.47 |
||
