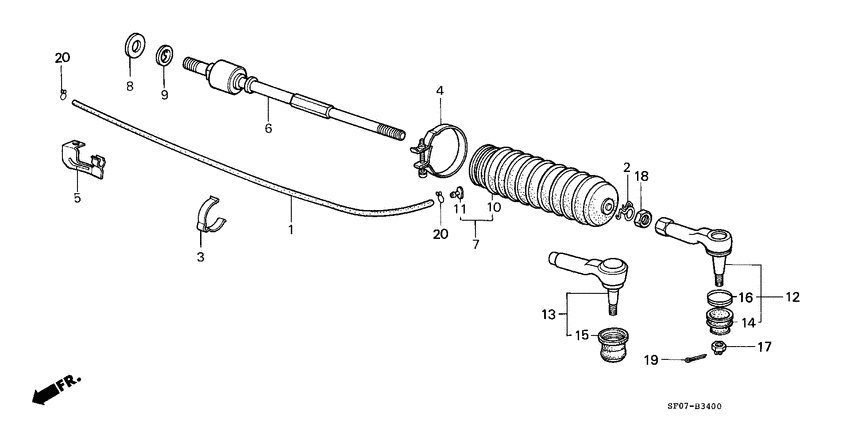

Tie rod Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53411-SB0-951
Tube
|
53411-SB0-951 |
— | ||
|
3
|
3
53448-SB0-950
Clip
|
53448-SB0-950 |
— | ||
|
4
|
4
53449-579-000 BandBELLOWS |
53449-579-000 |
US $5.18 |
||
|
5
|
5
53459-SB0-670
Stay
|
53459-SB0-670 |
— | ||
|
6
|
6
53521-SB0-003
End comp
00000000 - 0C401173 |
53521-SB0-003 |
— | ||
|
7
|
7
53534-SA5-950 Dust seal comp.TIE ROD 00000000 - 0C400000 |
53534-SA5-950 |
US $22.14 |
||
|
8
|
8
53535-SA0-000
Washer
|
53535-SA0-000 |
— | ||
|
9
|
9
53536-SB2-000 WasherTIE ROD LOCK |
53536-SB2-000 |
US $5.37 |
||
|
11
|
11
53539-538-310
Joint
|
53539-538-310 |
— | ||
|
12
|
12
53540-SB0-003 End compTIE ROD (MUSASHI) |
53540-SB0-003 |
US $62.59 |
||
|
13
|
13
53540-679-004
End comp
|
53540-679-004 |
— | ||
| replacement | |||||
|
13
|
13
53540-SC2-004
End,r tie rod
|
53540-SC2-004 |
— | ||
|
14
|
14
53546-SA0-003 BootTIE ROD END (MUSASHI) |
53546-SA0-003 |
US $13.44 |
||
|
15
|
15
53546-679-004 SealBALL JOINT (TOKAI) |
53546-679-004 |
US $15.74 |
||
|
16
|
16
53548-SA0-003
Circlip
|
53548-SA0-003 |
— | ||
|
17
|
17
90320-601-000 NutCASTLE, 10MM |
90320-601-000 |
from US $3.15 |
||
|
18
|
18
94030-12280 NutHEX., 12MM |
94030-12280 |
from US $0.43 |
||
|
19
|
19
94201-29220
Pin
|
94201-29220 |
— | ||
| replacements | |||||
|
19
|
19
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
19
|
19
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
20
|
20
95002-02074 ClipTUBE (B7) |
95002-02074 |
US $0.44 |
||
|
20
|
20
95002-45000 ClipTUBE(C8) |
95002-45000 |
from US $0.37 |
||
