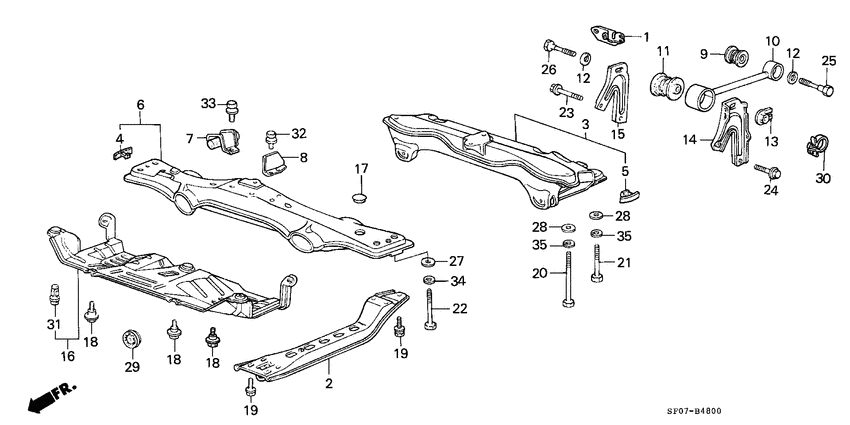

Torque rod/center beam Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32744-PC6-000
Holder
|
32744-PC6-000 |
— | ||
|
2
|
2
50100-SB0-010
Beam
|
50100-SB0-010 |
— | ||
|
3
|
3
50200-SB0-672 BeamRR. 00000000 - 0C300000 |
50200-SB0-672 |
US $610.56 |
||
|
4
|
4
50210-SA5-000
Grommet
|
50210-SA5-000 |
— | ||
|
5
|
5
50210-SB0-000
Grommet
|
50210-SB0-000 |
— | ||
|
6
|
6
50250-SB0-000
Beam
|
50250-SB0-000 |
— | ||
|
7
|
7
50255-SB0-010
Damper
|
50255-SB0-010 |
— | ||
|
8
|
8
50812-SA5-000
Insulator
|
50812-SA5-000 |
— | ||
|
9
|
9
50834-SA0-010 Insulator aTORQUE ROD |
50834-SA0-010 |
US $17.54 |
||
|
10
|
10
50835-SB0-010
Rod
|
50835-SB0-010 |
— | ||
|
11
|
11
50836-SA5-000
Insulator b
|
50836-SA5-000 |
— | ||
|
12
|
12
50837-692-010
Washer
|
50837-692-010 |
— | ||
|
13
|
13
50839-692-000
Nut
|
50839-692-000 |
— | ||
|
14
|
14
50841-SA5-030
Bracket
|
50841-SA5-030 |
— | ||
|
15
|
15
50842-SB0-010
Bracket
|
50842-SB0-010 |
— | ||
|
16
|
16
60872-SB0-010
Guard
|
60872-SB0-010 |
— | ||
|
17
|
17
82874-538-000 PlugFLOOR HOLE |
82874-538-000 |
US $3.71 |
||
|
18
|
18
90113-GE4-000 BoltFLANGE, 6MM(BLACK) |
90113-GE4-000 |
from US $2.72 |
||
|
19
|
19
90122-SB0-000 Bolt-washer10X21 00000000 - 0C201417 |
90122-SB0-000 |
US $2.80 |
||
|
19
|
19
90122-SC5-003 Bolt-washerLOCK, 10X21 0C201418 - |
90122-SC5-003 |
US $3.43 |
||
|
20
|
20
90123-SB0-000 BoltHEX., 12X170 |
90123-SB0-000 |
US $13.16 |
||
|
21
|
21
90125-SB0-000
Bolt
|
90125-SB0-000 |
— | ||
|
22
|
22
90126-SB0-000
Bolt
|
90126-SB0-000 |
— | ||
|
23
|
23
90127-692-000
Bolt
|
90127-692-000 |
— | ||
|
24
|
24
90129-692-000
Bolt
|
90129-692-000 |
— | ||
|
25
|
25
90131-SA5-000
Bolt
|
90131-SA5-000 |
— | ||
|
26
|
26
90131-692-000
Bolt
|
90131-692-000 |
— | ||
|
27
|
27
90504-SA0-000 WasherPLAIN, 10MM |
90504-SA0-000 |
US $9.37 |
||
|
28
|
28
90504-SB0-000 WasherPLAIN, 12MM |
90504-SB0-000 |
from US $1.48 |
||
|
29
|
29
90621-SB0-003
Plug
|
90621-SB0-003 |
— | ||
|
31
|
31
90657-SB0-003 ClipSPLASH SHIELD |
90657-SB0-003 |
from US $2.45 |
||
|
32
|
32
93492-060-120-8 Bolt-washer6X12 |
93492-060-120-8 |
from US $0.52 |
||
| replacement | |||||
|
32
|
32
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
33
|
33
93492-100-200-8 Bolt-washer10X20 |
93492-100-200-8 |
US $0.74 |
||
|
34
|
34
94111-10800 WasherSPRING, 10MM |
94111-10800 |
from US $0.44 |
||
|
35
|
35
94111-12800 WasherSPRING, 12MM |
94111-12800 |
from US $0.44 |
||
