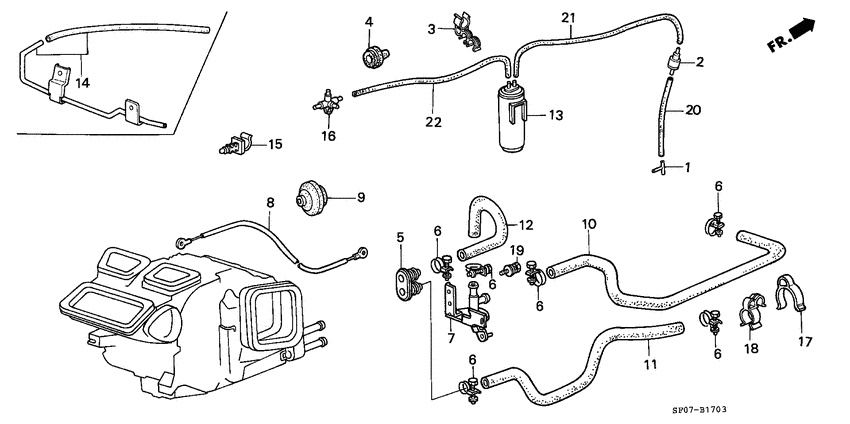

Water valve/hose Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
36145-PA6-661
Valve
|
36145-PA6-661 |
— | ||
| replacement | |||||
|
2
|
2
36145-PM4-004 ValveCHECK |
36145-PM4-004 |
from US $18.50 |
||
|
4
|
4
38989-671-000
Grommet
|
38989-671-000 |
— | ||
|
5
|
5
39214-SA5-000
Grommet
|
39214-SA5-000 |
— | ||
|
6
|
6
39223-671-000
Clamp
|
39223-671-000 |
— | ||
|
7
|
7
39270-SB0-013
Valve assy.
|
39270-SB0-013 |
— | ||
|
8
|
8
39273-SB0-000
Cable
|
39273-SB0-000 |
— | ||
|
9
|
9
39274-SA5-000
Grommet
|
39274-SA5-000 |
— | ||
|
10
|
10
39311-SB0-020 HoseWATER IN. |
39311-SB0-020 |
US $34.43 |
||
|
11
|
11
39312-SB0-010
Hose
|
39312-SB0-010 |
— | ||
|
12
|
12
39313-SB0-000
Hose
|
39313-SB0-000 |
— | ||
|
13
|
13
39321-SB0-003
Tank comp.
|
39321-SB0-003 |
— | ||
|
15
|
15
39492-SA5-003
Clip
|
39492-SA5-003 |
— | ||
|
16
|
16
39498-SB0-000
Joint
|
39498-SB0-000 |
— | ||
|
17
|
17
90661-SA0-000
Holder
|
90661-SA0-000 |
— | ||
|
19
|
19
93493-060-120-8 Bolt-washer6X12 |
93493-060-120-8 |
from US $0.59 |
||
| replacement | |||||
|
19
|
19
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
20
|
20
95005-351-301-0
Tube
|
95005-351-301-0 |
— | ||
| replacement | |||||
|
20
|
20
95005-352-0010S
Tube 35x200
|
95005-352-0010S |
— | ||
|
21
|
21
95005-352-501-0
Tube
|
95005-352-501-0 |
— | ||
|
22
|
22
95005-354-001-0 Tube3.5X400(95005-35001-10M) |
95005-354-001-0 |
US $4.14 |
||
