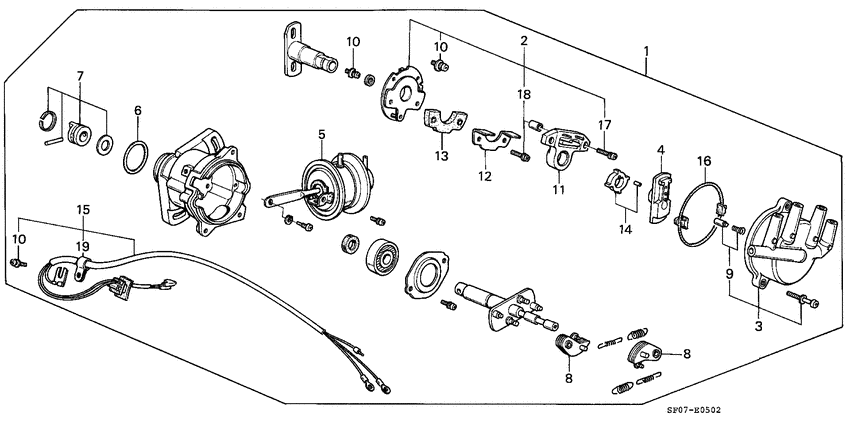

Distributor components (HITACHI) Diagram Honda PRELUDE
- Year
- 1987
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 4AT
- Number of doors
- 2
- grade
- EX
- power steering
- +
- area code
- KG
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30100-PC7-673
Distributor assy
4900001 - |
30100-PC7-673 |
— | ||
|
2
|
2
30101-PD2-005
Plate assy.
|
30101-PD2-005 |
— | ||
|
3
|
3
30102-PC6-005
Cap assy.
4900001 - |
30102-PC6-005 |
— | ||
|
4
|
4
30103-PB9-601 HeadROTOR 4900001 - |
30103-PB9-601 |
US $10.22 |
||
|
5
|
5
30104-PC7-672
Control assy.
4900001 - |
30104-PC7-672 |
— | ||
|
6
|
6
30110-PC6-005
O-ring
4900001 - |
30110-PC6-005 |
— | ||
|
7
|
7
30113-PD2-005
Coupling set
4900001 - |
30113-PD2-005 |
— | ||
| replacement | |||||
|
7
|
7
30113-P01-005
Coupling set
4900001 - |
30113-P01-005 |
— | ||
|
8
|
8
30114-PC6-005
Weight
4900001 - |
30114-PC6-005 |
— | ||
|
9
|
9
30115-634-005
Point assy
4900001 - |
30115-634-005 |
— | ||
|
10
|
10
30119-PC6-005
Screw kit
4900001 - |
30119-PC6-005 |
— | ||
|
11
|
11
30120-PA0-661 Igniter assy4900001 - |
30120-PA0-661 |
US $226.56 |
||
|
12
|
12
30121-PC6-005
Stator
4900001 - |
30121-PC6-005 |
— | ||
|
13
|
13
30123-PC1-005
Magnet set
4900001 - |
30123-PC1-005 |
— | ||
|
14
|
14
30126-PC6-005
Reluctor set
4900001 - |
30126-PC6-005 |
— | ||
|
15
|
15
30131-PC6-661
Harness assy
4900001 - |
30131-PC6-661 |
— | ||
|
16
|
16
30132-PC6-005
Packing
4900001 - |
30132-PC6-005 |
— | ||
|
17
|
17
30133-PA0-661
Screw-washer
4900001 - |
30133-PA0-661 |
— | ||
|
18
|
18
30134-PA0-661
Screw-washer
4900001 - |
30134-PA0-661 |
— | ||
|
19
|
19
30137-PB9-601
Clamp
4900001 - |
30137-PB9-601 |
— | ||
