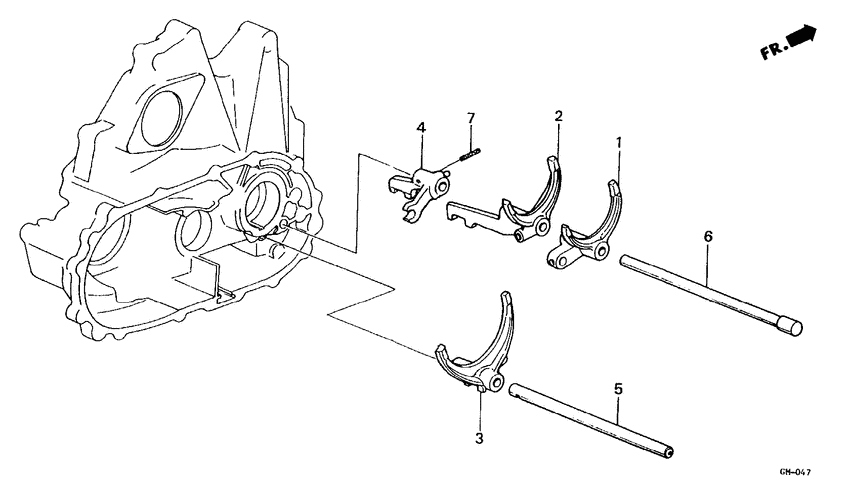

Shift fork/fork shaft Diagram Honda PRELUDE
- Year
- 1987
- Model code
- PRELUDE
- Sales region
- General
- Engine
- B20A
- transmission
- 5MT
- Number of doors
- 2
- grade
- 2.0I-16
- power steering
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- rear fog light
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24200-PF5-010
Fork comp
|
24200-PF5-010 |
— | ||
|
2
|
2
24210-PF5-010
Fork comp
|
24210-PF5-010 |
— | ||
|
3
|
3
24220-PF5-010
Fork comp
00000000 - 2001941 |
24220-PF5-010 |
— | ||
|
3
|
3
24220-PF5-020
Fork comp
2001942 - |
24220-PF5-020 |
— | ||
|
4
|
4
24243-PF5-000
Piece
|
24243-PF5-000 |
— | ||
|
5
|
5
24261-PF5-000
Shaft
|
24261-PF5-000 |
— | ||
|
6
|
6
24271-PF5-000
Shaft
|
24271-PF5-000 |
— | ||
|
7
|
7
94305-50222 PinSPRING, 5X22 |
94305-50222 |
from US $0.89 |
