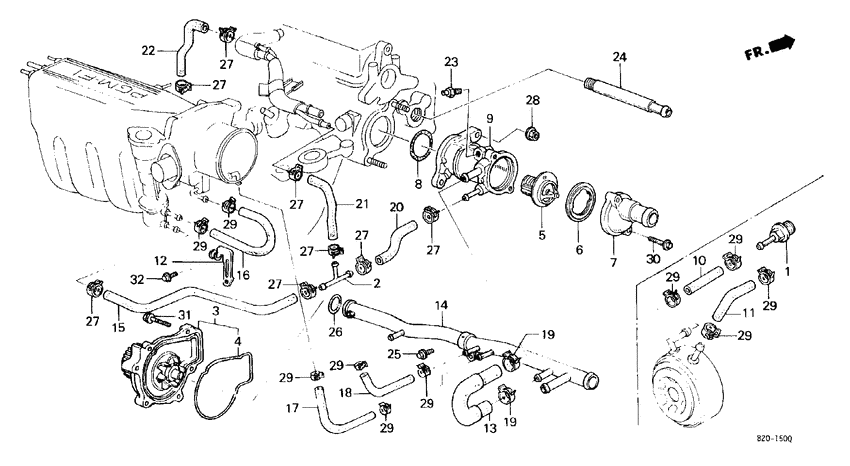

Water pump/thermostat (DOHC) Diagram Honda PRELUDE
- Year
- 1987
- Model code
- PRELUDE
- Sales region
- General
- Engine
- B20A
- transmission
- 5MT
- Number of doors
- 2
- grade
- 2.0I-16
- power steering
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- rear fog light
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11107-PH3-013 JointOIL COOLER |
11107-PH3-013 |
US $7.70 |
||
|
2
|
2
17373-PH3-000
Joint
2000001 - |
17373-PH3-000 |
— | ||
|
3
|
3
19200-PH3-000 Pump compWATER |
19200-PH3-000 |
US $165.12 |
||
|
4
|
4
19222-PH3-000
Packing
|
19222-PH3-000 |
— | ||
|
5
|
5
19300-PB2-003
Thermostat unit
|
19300-PB2-003 |
— | ||
| replacement | |||||
|
5
|
5
19300-PB2-023
Thermostat unit
|
19300-PB2-023 |
— | ||
|
5
|
5
19300-PB2-811
Thermostat unit
|
19300-PB2-811 |
— | ||
|
5
|
5
19300-PB2-024 Thermostat unit82) (FUJI SEIKO |
19300-PB2-024 |
US $32.01 |
||
|
5
|
5
19300-PB2-815
Thermostat unit
|
19300-PB2-815 |
— | ||
|
6
|
6
19305-PC6-000
Rubber
|
19305-PC6-000 |
— | ||
|
7
|
7
19311-PC6-000
Cover
|
19311-PC6-000 |
— | ||
|
8
|
8
19313-PH3-000
Gasket
|
19313-PH3-000 |
— | ||
|
9
|
9
19320-PH3-000
Case comp.
|
19320-PH3-000 |
— | ||
|
10
|
10
19421-PH3-010 Hose aOIL COOLER |
19421-PH3-010 |
US $13.31 |
||
|
11
|
11
19422-PH3-010 Hose bOIL COOLER |
19422-PH3-010 |
US $13.31 |
||
|
12
|
12
19503-PJ5-000
Clamp
|
19503-PJ5-000 |
— | ||
|
13
|
13
19504-PH3-000
Hose
|
19504-PH3-000 |
— | ||
|
14
|
14
19505-PH3-010
Pipe
|
19505-PH3-010 |
— | ||
|
15
|
15
19507-PH3-000 Hose aFAST IDLE CONTROL |
19507-PH3-000 |
US $16 |
||
|
16
|
16
19508-PH3-000
Hose b
|
19508-PH3-000 |
— | ||
|
17
|
17
19510-PH3-000
Hose
|
19510-PH3-000 |
— | ||
|
18
|
18
19511-PH3-000
Hose
|
19511-PH3-000 |
— | ||
|
19
|
19
19512-PC6-003 ClipHOSE, 18.7MM |
19512-PC6-003 |
from US $3.18 |
||
|
20
|
20
19512-PH3-000
Hose
|
19512-PH3-000 |
— | ||
|
21
|
21
19514-PH3-000
Hose a
|
19514-PH3-000 |
— | ||
|
22
|
22
19515-PH3-000
Hose b
|
19515-PH3-000 |
— | ||
|
23
|
23
19516-PC1-000 BoltBREATHING WATER |
19516-PC1-000 |
from US $5.62 |
||
|
24
|
24
19517-PH1-000
Joint
|
19517-PH1-000 |
— | ||
|
25
|
25
90002-PD2-000 BoltFLANGE, 8X16 |
90002-PD2-000 |
US $2.03 |
||
|
26
|
26
91314-634-000 O-ring |
91314-634-000 |
from US $2.86 |
||
|
27
|
27
91405-PD1-004 ClampTUBE(D12) |
91405-PD1-004 |
from US $3.92 |
||
|
28
|
28
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
29
|
29
95002-412-500-4 ClampTUBE (D12.5) |
95002-412-500-4 |
from US $0.74 |
||
|
30
|
30
95700-060-250-8 BoltFLANGE, 6X25 |
95700-060-250-8 |
US $27.50 |
||
| replacement | |||||
|
30
|
30
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
31
|
31
95700-060-280-8 BoltFLANGE, 6X28 |
95700-060-280-8 |
from US $0.59 |
||
| replacement | |||||
|
31
|
31
95701-060-280-8 BoltFLANGE, 6X28 |
95701-060-280-8 |
from US $0.74 |
||
|
32
|
32
95900-060-100-8 BoltFLANGE, 6X10 |
95900-060-100-8 |
from US $0.52 |
||
| replacement | |||||
|
32
|
32
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
