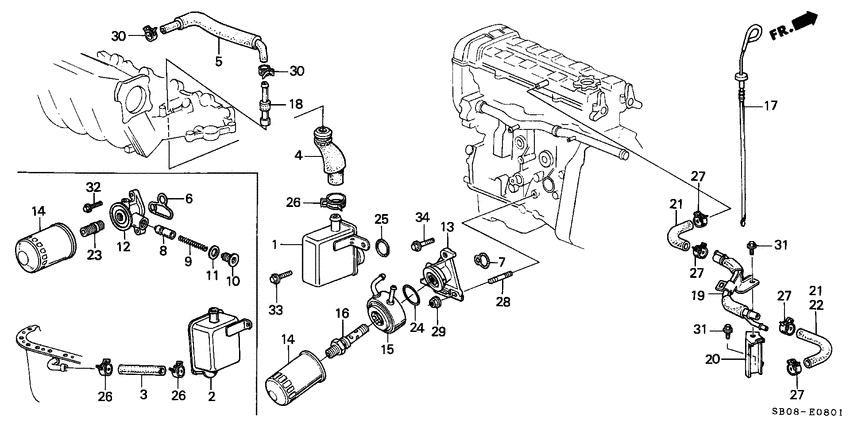

Breather chamber/ oil filter (PGM-FI) Diagram Honda PRELUDE
- Year
- 1986
- Model code
- PRELUDE
- Sales region
- General
- Engine
- A20A
- transmission
- 5MT
- Number of doors
- 2
- grade
- 2.0SI
- abs
- +
- power steering
- +
- area code
- KQ
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
11850-PJ0-660
Chamber
|
11850-PJ0-660 |
— | ||
|
3
|
3
11854-PC6-010
Tube
|
11854-PC6-010 |
— | ||
|
4
|
4
11855-PH3-000
Tube comp. a
|
11855-PH3-000 |
— | ||
|
5
|
5
11856-PH3-000
Tube comp. b
|
11856-PH3-000 |
— | ||
|
6
|
6
15205-PC6-003
Gasket
|
15205-PC6-003 |
— | ||
|
6
|
6
15205-PC6-014 GasketOIL FILTER BASE (ARAI) |
15205-PC6-014 |
US $3.92 |
||
|
8
|
8
15231-679-003
Valve
|
15231-679-003 |
— | ||
|
9
|
9
15232-PB2-000
Spring
|
15232-PB2-000 |
— | ||
|
10
|
10
15233-PC6-000 BoltSEALING, 18MM |
15233-PC6-000 |
from US $2.38 |
||
|
11
|
11
15234-PC6-000 WasherSEALING, 18MM |
15234-PC6-000 |
US $9.67 |
||
|
12
|
12
15301-PH1-000
Base
|
15301-PH1-000 |
— | ||
|
14
|
14
15400-PH1-003 CartridgeOIL FILTER (TOKYO ROKI) |
15400-PH1-003 |
US $16 |
||
|
14
|
14
15400-PH1-004 CartridgeOIL FILTER (TOYO ROKI) |
15400-PH1-004 |
US $16 |
||
|
17
|
17
15650-PH1-000
Gauge comp.
|
15650-PH1-000 |
— | ||
|
18
|
18
17130-PC6-003
Valve assy.
|
17130-PC6-003 |
— | ||
|
19
|
19
17135-PJ0-661
Pipe comp
|
17135-PJ0-661 |
— | ||
|
20
|
20
17136-PH3-000
Stay
|
17136-PH3-000 |
— | ||
|
21
|
21
17138-PH3-000
Tube
|
17138-PH3-000 |
— | ||
|
22
|
22
17138-PJ6-660
Tube
|
17138-PJ6-660 |
— | ||
|
23
|
23
90015-PH1-003 HolderOIL FILTER |
90015-PH1-003 |
US $4.62 |
||
|
26
|
26
91405-PC6-000 ClampTUBE (D29) |
91405-PC6-000 |
from US $3.43 |
||
|
27
|
27
91405-679-004 ClampTUBE (D17) |
91405-679-004 |
from US $3.92 |
||
| replacement | |||||
|
27
|
27
91405-PM5-004 ClampTUBE (D17) |
91405-PM5-004 |
from US $4.28 |
||
|
28
|
28
92900-08032-1B BoltSTUD, 8X32 |
92900-08032-1B |
from US $0.81 |
||
|
29
|
29
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
30
|
30
95002-412-000-4 ClampTUBE (D12) |
95002-412-000-4 |
from US $0.74 |
||
|
31
|
31
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
| replacement | |||||
|
31
|
31
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
32
|
32
95700-060-220-8 BoltFLANGE, 6X22 |
95700-060-220-8 |
US $15.60 |
||
| replacement | |||||
|
32
|
32
95701-060-220-8 BoltFLANGE, 6X22 |
95701-060-220-8 |
from US $0.65 |
||
