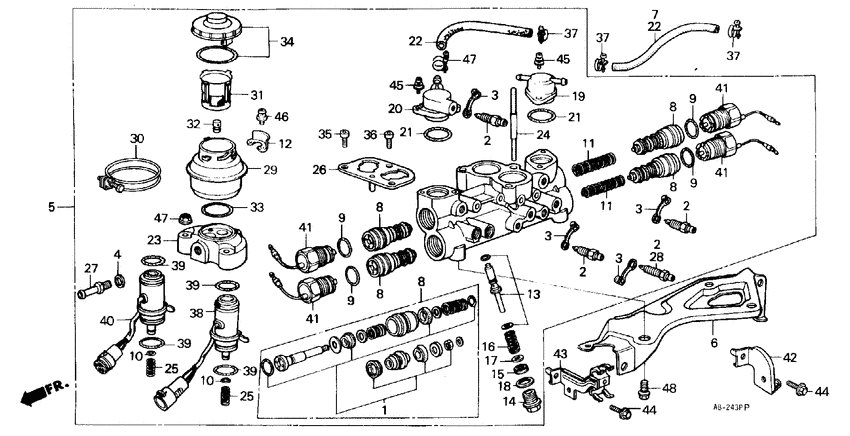

Modulator (A.L.B.) Diagram Honda PRELUDE
- Year
- 1986
- Model code
- PRELUDE
- Sales region
- General
- Engine
- A20A
- transmission
- 5MT
- Number of doors
- 2
- grade
- 2.0SI
- abs
- +
- power steering
- +
- area code
- KQ
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06571-SB0-800
Piston kit
|
06571-SB0-800 |
— | ||
|
2
|
2
43352-568-003 SCREW, BLEEDER (NISSIN) |
43352-568-003 |
from US $4.22 |
||
|
3
|
3
43353-461-771 CapBLEEDER |
43353-461-771 |
from US $1.40 |
||
|
4
|
4
46472-568-000 PackingOIL BOLT |
46472-568-000 |
from US $3.18 |
||
|
5
|
5
57110-SE0-801 Modulator assy00000000 - 0C001383 |
57110-SE0-801 |
US $2,104.32 |
||
|
5
|
5
57110-SE0-881 Modulator assy0C001384 - 0C100000 |
57110-SE0-881 |
US $2,104.32 |
||
|
6
|
6
57115-SF0-800
Bracket
|
57115-SF0-800 |
— | ||
|
8
|
8
57120-SE0-801 Piston comp |
57120-SE0-801 |
US $54.91 |
||
|
9
|
9
57129-SB0-801
O-ring
|
57129-SB0-801 |
— | ||
|
10
|
10
57139-SB0-801 O-ringDIVIDER |
57139-SB0-801 |
US $2.86 |
||
|
11
|
11
57141-SE0-801
Spring
|
57141-SE0-801 |
— | ||
|
13
|
13
57150-SB0-801
Valve comp.
|
57150-SB0-801 |
— | ||
|
14
|
14
57160-SB0-801
Plug comp.
|
57160-SB0-801 |
— | ||
|
15
|
15
57165-SB0-801
Seal
|
57165-SB0-801 |
— | ||
|
16
|
16
57166-SB0-801
Spring
|
57166-SB0-801 |
— | ||
|
17
|
17
57167-SB0-801
Collar
|
57167-SB0-801 |
— | ||
|
18
|
18
57169-SB0-801
Washer
|
57169-SB0-801 |
— | ||
|
19
|
19
57171-SB0-801
Connector a
|
57171-SB0-801 |
— | ||
|
20
|
20
57172-SB0-801
Connector b
|
57172-SB0-801 |
— | ||
|
21
|
21
57173-SB0-801 O-ringCONNECTOR |
57173-SB0-801 |
US $2.07 |
||
|
22
|
22
57175-SB0-801
Hose
|
57175-SB0-801 |
— | ||
|
23
|
23
57181-SB0-803
Head
|
57181-SB0-803 |
— | ||
|
25
|
25
57185-SB0-801
Spring
|
57185-SB0-801 |
— | ||
|
26
|
26
57186-SB0-801
Plate
|
57186-SB0-801 |
— | ||
|
27
|
27
57188-SB0-801
Joint
|
57188-SB0-801 |
— | ||
|
29
|
29
57191-SB0-803
Tank comp.
|
57191-SB0-803 |
— | ||
|
30
|
30
57192-SB0-801
Band assy.
|
57192-SB0-801 |
— | ||
|
31
|
31
57193-SB0-801
Filter
|
57193-SB0-801 |
— | ||
|
32
|
32
57194-SB0-802
Cap
|
57194-SB0-802 |
— | ||
|
34
|
34
57196-SD4-801
Cap comp.
0C001384 - |
57196-SD4-801 |
— | ||
|
34
|
34
57196-SE0-801 Cap comp.RESERVE TANK 00000000 - 0C001383 |
57196-SE0-801 |
US $34.43 |
||
|
35
|
35
57197-SB0-801
Screw
|
57197-SB0-801 |
— | ||
|
36
|
36
57198-SB0-801
Screw
|
57198-SB0-801 |
— | ||
|
37
|
37
57199-SB0-801 ClampHOSE, 14MM |
57199-SB0-801 |
US $2.31 |
||
|
38
|
38
57200-SE0-801
Solenoid assy.
|
57200-SE0-801 |
— | ||
|
39
|
39
57202-SB0-801 O-ringSOLENOID |
57202-SB0-801 |
US $1.82 |
||
|
40
|
40
57250-SE0-801
Solenoid assy.
|
57250-SE0-801 |
— | ||
|
41
|
41
57290-SE0-801
Switch assy
|
57290-SE0-801 |
— | ||
|
42
|
42
57439-SB0-010
Holder
|
57439-SB0-010 |
— | ||
|
44
|
44
93492-060-120-0 Bolt-washer6X12 |
93492-060-120-0 |
from US $0.52 |
||
| replacement | |||||
|
44
|
44
93402-060-120-0 Bolt-washer6X12 |
93402-060-120-0 |
from US $0.52 |
||
|
45
|
45
93893-040-120-8 Screw-washer4X12 |
93893-040-120-8 |
from US $0.58 |
||
|
46
|
46
93893-050-141-8 Screw-washer5X14 |
93893-050-141-8 |
US $0.52 |
||
|
47
|
47
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
48
|
48
95700-080-140-8 BoltFLANGE, 8X14 |
95700-080-140-8 |
US $1.56 |
||
| replacement | |||||
|
48
|
48
95701-080-140-8 BoltFLANGE, 8X14 |
95701-080-140-8 |
from US $0.62 |
||
