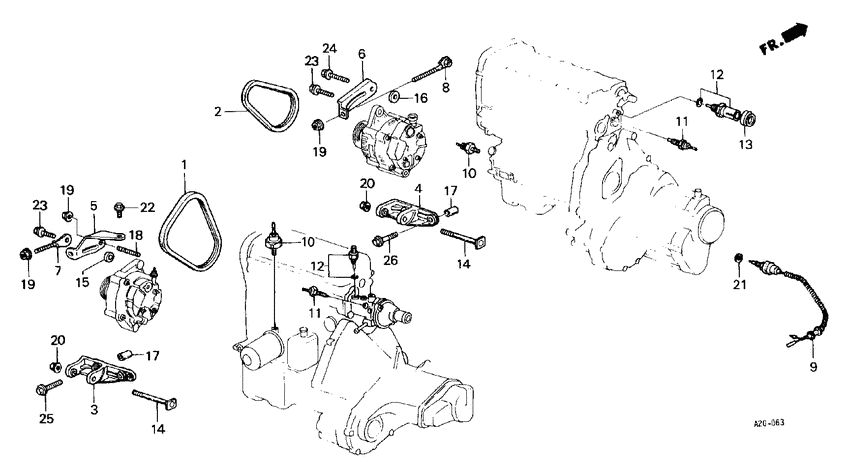

Alternator bracket/sensor (PGM-FI) Diagram Honda PRELUDE
- Year
- 1986
- Model code
- PRELUDE
- Sales region
- General
- Engine
- A20A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0SI
- power steering
- +
- area code
- KQ
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31110-PH2-003 BeltALTERNATOR (MITSUBOSHI) |
31110-PH2-003 |
US $35.71 |
||
|
1
|
1
31110-PH2-004 BeltALTERNATOR (BANDO) |
31110-PH2-004 |
US $35.71 |
||
|
3
|
3
31112-PH2-020
Bracket
|
31112-PH2-020 |
— | ||
|
5
|
5
31113-PH2-000
Stay
|
31113-PH2-000 |
— | ||
|
7
|
7
31116-PH1-000
Bolt
|
31116-PH1-000 |
— | ||
|
10
|
10
37240-PD2-003
Switch
|
37240-PD2-003 |
— | ||
|
10
|
10
37240-PD2-004
Switch
|
37240-PD2-004 |
— | ||
|
11
|
11
37750-PC1-004 Thermo unitDENSO |
37750-PC1-004 |
from US $50.86 |
||
|
12
|
12
37870-PD6-003
Sensor assy
|
37870-PD6-003 |
— | ||
|
13
|
13
37872-PD6-000
Cover
|
37872-PD6-000 |
— | ||
|
14
|
14
90057-PG7-003 BoltALTERNATOR |
90057-PG7-003 |
US $5.21 |
||
|
15
|
15
90430-PD2-000 Washer8.3X24X4.3 |
90430-PD2-000 |
US $24.91 |
||
|
17
|
17
90701-PD2-000 Dowel pin12X14 |
90701-PD2-000 |
from US $2.59 |
||
|
18
|
18
92900-08040-0B BoltSTUD, 8X40 |
92900-08040-0B |
from US $0.81 |
||
|
19
|
19
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
20
|
20
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
22
|
22
95700-080-180-8 BoltFLANGE, 8X18 |
95700-080-180-8 |
from US $0.59 |
||
|
23
|
23
95700-080-320-8 BoltFLANGE, 8X32 |
95700-080-320-8 |
from US $0.74 |
||
| replacement | |||||
|
23
|
23
95701-080-320-8 BoltFLANGE, 8X32 |
95701-080-320-8 |
from US $0.81 |
||
|
25
|
25
95700-100-320-8 BoltFLANGE, 10X32 |
95700-100-320-8 |
from US $0.81 |
||
| replacement | |||||
|
25
|
25
95701-100-320-8 BoltFLANGE, 10X32 |
95701-100-320-8 |
from US $0.90 |
||
