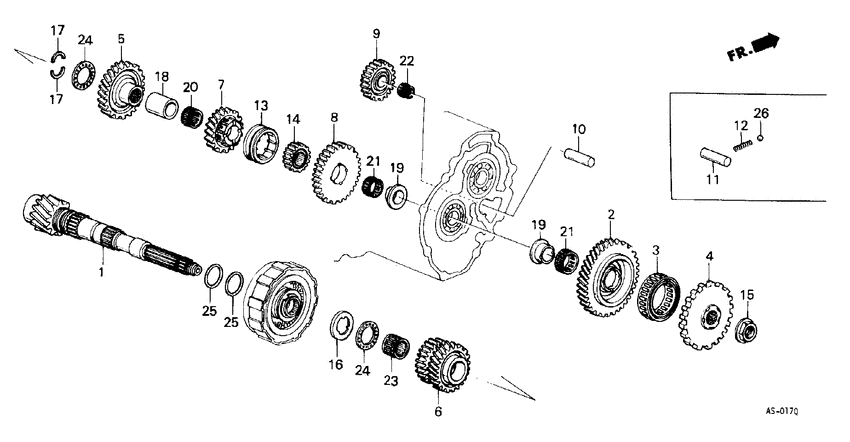

Countershaft Diagram Honda PRELUDE
- Year
- 1986
- Model code
- PRELUDE
- Sales region
- General
- Engine
- A20A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0SI
- power steering
- +
- area code
- KQ
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23220-PF4-010 Countershaft comp.00000000 - 6104022 |
23220-PF4-010 |
US $359.68 |
||
|
1
|
1
23220-PF4-030 Countershaft comp.6188922 - |
23220-PF4-030 |
US $309.76 |
||
|
1
|
1
23220-PF4-020 Countershaft comp.6104023 - 6188921 |
23220-PF4-020 |
US $331.52 |
||
|
2
|
2
23421-PF4-000
Gear
|
23421-PF4-000 |
— | ||
|
3
|
3
23423-PF4-003
Clutch assy.
|
23423-PF4-003 |
— | ||
|
4
|
4
23427-PF4-000
Gear
00000000 - 6289076 |
23427-PF4-000 |
— | ||
|
4
|
4
23427-PG4-000
Gear
6289077 - |
23427-PG4-000 |
— | ||
|
5
|
5
23441-PF4-000
Gear
|
23441-PF4-000 |
— | ||
|
6
|
6
23451-PF4-951
Gear
|
23451-PF4-951 |
— | ||
|
6
|
6
23451-PF4-950 GearCOUNTERSHAFT THIRD 00000000 - 6240804 |
23451-PF4-950 |
US $152.32 |
||
|
7
|
7
23471-PF4-950
Gear
|
23471-PF4-950 |
— | ||
|
8
|
8
23531-PF4-000
Gear
|
23531-PF4-000 |
— | ||
|
9
|
9
23541-PF4-000
Gear
|
23541-PF4-000 |
— | ||
|
10
|
10
23542-PF4-000
Shaft
00000000 - 6026198 |
23542-PF4-000 |
— | ||
|
11
|
11
23542-PH0-010
Shaft
6026199 - |
23542-PH0-010 |
— | ||
|
12
|
12
23543-PH0-000
Spring a
6026199 - |
23543-PH0-000 |
— | ||
|
13
|
13
23565-PC9-000
Selector
00000000 - 6374326 |
23565-PC9-000 |
— | ||
|
14
|
14
23566-PF4-000 HubREVERSE SELECTOR |
23566-PF4-000 |
US $44.16 |
||
|
15
|
15
90201-689-900
Nut
00000000 - 6104022 |
90201-689-900 |
— | ||
|
15
|
15
90202-PF4-000 NutFLANGE, 23MM 6104023 - 6493525 |
90202-PF4-000 |
US $7 |
||
|
16
|
16
90415-PF4-000
Washer
|
90415-PF4-000 |
— | ||
|
16
|
16
90418-PF4-000
Washer
|
90418-PF4-000 |
— | ||
|
16
|
16
90412-PF4-000
Washer
|
90412-PF4-000 |
— | ||
|
16
|
16
90414-PF4-000
Washer
|
90414-PF4-000 |
— | ||
|
16
|
16
90416-PF4-000
Washer
|
90416-PF4-000 |
— | ||
|
16
|
16
90411-PF4-000
Washer
|
90411-PF4-000 |
— | ||
|
16
|
16
90419-PF4-000
Washer
|
90419-PF4-000 |
— | ||
|
16
|
16
90413-PF4-000
Washer
|
90413-PF4-000 |
— | ||
|
17
|
17
90431-PC9-000 Cotter28MM |
90431-PC9-000 |
from US $3.22 |
||
|
18
|
18
90509-PC9-000 CollarDISTANCE, 28X38X39.15 |
90509-PC9-000 |
US $13.72 |
||
|
18
|
18
90503-PC9-000 CollarDISTANCE, 28X38X39.00 |
90503-PC9-000 |
US $11.90 |
||
|
18
|
18
90510-PC9-000 CollarDISTANCE, 28X38X39.25 |
90510-PC9-000 |
US $16.38 |
||
|
18
|
18
90505-PC9-000 CollarDISTANCE, 28X38X39.20 |
90505-PC9-000 |
US $16.38 |
||
|
18
|
18
90508-PC9-000 CollarDISTANCE, 28X38X39.05 |
90508-PC9-000 |
US $13.95 |
||
|
18
|
18
90504-PC9-000 CollarDISTANCE, 28X38X39.10 |
90504-PC9-000 |
US $13.95 |
||
|
18
|
18
90507-PC9-000 CollarDISTANCE, 28X38X39.30 |
90507-PC9-000 |
US $16.38 |
||
|
19
|
19
90509-PF4-000 CollarCOUNTERSHAFT LOW GEAR |
90509-PF4-000 |
US $7.70 |
||
|
20
|
20
91016-PA9-004 BearingNEEDLE, 28X33X20 (KOYO) |
91016-PA9-004 |
US $10.08 |
||
|
20
|
20
91016-PG4-003
Bearing
6184095 - 6257545 |
91016-PG4-003 |
— | ||
|
20
|
20
91016-PA9-003 BearingNEEDLE, 28X33X20 (NTN) 00000000 - 6184094 |
91016-PA9-003 |
US $9.24 |
||
|
21
|
21
91024-PF4-003 BearingNEEDLE, 32X38X14 (NTN) |
91024-PF4-003 |
US $7.98 |
||
|
22
|
22
91025-639-008 BearingNEEDLE, 14X18X15 (NTN) 00000000 - 6184094 |
91025-639-008 |
US $6.86 |
||
|
22
|
22
91025-639-004 BearingNEEDLE, 14X18X15 (KOYO) |
91025-639-004 |
US $7.42 |
||
|
22
|
22
91025-PJ2-003 BearingNEEDLE, 14X18X15 (NTN) 6184095 - |
91025-PJ2-003 |
US $5.46 |
||
|
24
|
24
91031-PG4-003 BearingTHRUST NEEDLE, 39X54X2.5 6240805 - |
91031-PG4-003 |
US $6.58 |
||
|
24
|
24
91031-PC9-003 BearingTHRUST NEEDLE, 39X54X2 (NTN) 00000000 - 6240804 |
91031-PC9-003 |
US $7.28 |
||
|
24
|
24
91031-PC9-006
Bearing
00000000 - 6240804 |
91031-PC9-006 |
— | ||
|
24
|
24
91031-PC9-005
Bearing
00000000 - 6240804 |
91031-PC9-005 |
— | ||
|
25
|
25
91307-PA9-004 O-ring31.2X1.9 (NOK) |
91307-PA9-004 |
US $3.93 |
||
| replacement | |||||
|
25
|
25
91307-PA9-003 O-ring 31.2X1.9 (ARAI)31.2X1.9 (ARAI) |
91307-PA9-003 |
from US $2.44 |
||
|
25
|
25
91307-PA9-003 O-ring 31.2X1.9 (ARAI)31.2X1.9 (ARAI) |
91307-PA9-003 |
from US $2.44 |
||
|
26
|
26
96211-07000 BallSTEEL, #7 (7/32) 6026199 - |
96211-07000 |
from US $0.15 |
||
