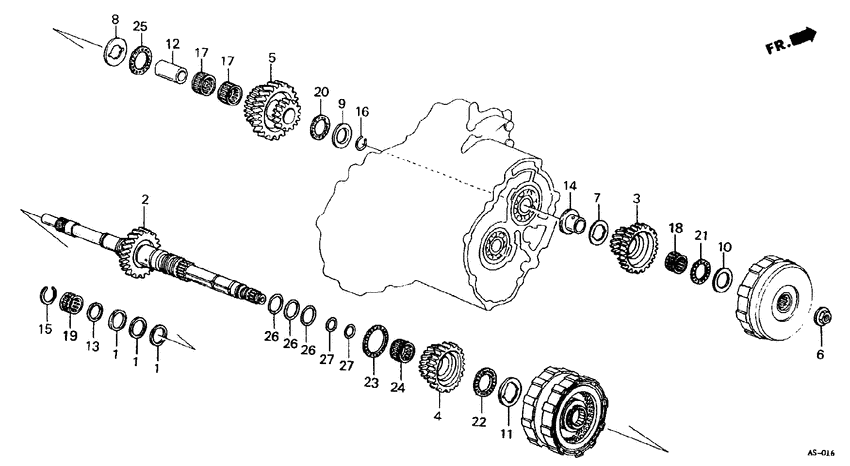

Mainshaft Diagram Honda PRELUDE
- Year
- 1986
- Model code
- PRELUDE
- Sales region
- General
- Engine
- A20A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0SI
- power steering
- +
- area code
- KQ
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22814-PF4-003 RingSEALING, 35MM |
22814-PF4-003 |
US $12.93 |
||
|
2
|
2
23210-PF4-950 Mainshaft comp. |
23210-PF4-950 |
US $271.36 |
||
|
3
|
3
23411-PF4-000 GearMAINSHAFT LOW |
23411-PF4-000 |
US $80 |
||
|
4
|
4
23431-PF4-010
Gear
6247570 - 6375586 |
23431-PF4-010 |
— | ||
|
4
|
4
23431-PF4-000 GearMAINSHAFT SECOND 00000000 - 6247569 |
23431-PF4-000 |
US $126.08 |
||
|
5
|
5
23461-PF4-950
Gear
|
23461-PF4-950 |
— | ||
|
6
|
6
90201-PC9-910 NutFLANGE, 19MM |
90201-PC9-910 |
US $3.71 |
||
|
7
|
7
90406-PF4-000
Washer
|
90406-PF4-000 |
— | ||
|
8
|
8
90407-PC9-000
Washer
|
90407-PC9-000 |
— | ||
|
9
|
9
90417-PC9-000
Washer
|
90417-PC9-000 |
— | ||
|
10
|
10
90422-PA9-000
Washer
|
90422-PA9-000 |
— | ||
|
11
|
11
90442-PF4-000
Washer
00000000 - 6247569 |
90442-PF4-000 |
— | ||
|
11
|
11
90449-PG4-000
Washer
6247570 - 6375586 |
90449-PG4-000 |
— | ||
|
11
|
11
90446-PF4-000
Washer
00000000 - 6247569 |
90446-PF4-000 |
— | ||
|
11
|
11
90444-PG4-000
Washer
6247570 - 6375586 |
90444-PG4-000 |
— | ||
|
11
|
11
90441-PF4-000
Washer
00000000 - 6247569 |
90441-PF4-000 |
— | ||
|
11
|
11
90448-PG4-000
Washer
6247570 - 6375586 |
90448-PG4-000 |
— | ||
|
11
|
11
90445-PF4-000
Washer
00000000 - 6247569 |
90445-PF4-000 |
— | ||
|
11
|
11
90443-PG4-000
Washer
6247570 - 6375586 |
90443-PG4-000 |
— | ||
|
11
|
11
90449-PF4-000
Washer
00000000 - 6247569 |
90449-PF4-000 |
— | ||
|
11
|
11
90447-PG4-000
Washer
6247570 - 6375586 |
90447-PG4-000 |
— | ||
|
11
|
11
90444-PF4-000
Washer
00000000 - 6247569 |
90444-PF4-000 |
— | ||
|
11
|
11
90442-PG4-000
Washer
6247570 - 6375586 |
90442-PG4-000 |
— | ||
|
11
|
11
90448-PF4-000
Washer
00000000 - 6247569 |
90448-PF4-000 |
— | ||
|
11
|
11
90446-PG4-000
Washer
6247570 - 6375586 |
90446-PG4-000 |
— | ||
|
11
|
11
90443-PF4-000
Washer
00000000 - 6247569 |
90443-PF4-000 |
— | ||
|
11
|
11
90441-PG4-000
Washer
6247570 - 6375586 |
90441-PG4-000 |
— | ||
|
11
|
11
90447-PF4-000
Washer
00000000 - 6247569 |
90447-PF4-000 |
— | ||
|
11
|
11
90445-PG4-000
Washer
6247570 - 6375586 |
90445-PG4-000 |
— | ||
|
12
|
12
90502-PC9-000
Collar
|
90502-PC9-000 |
— | ||
|
13
|
13
90506-PF4-000
Collar
|
90506-PF4-000 |
— | ||
|
14
|
14
90508-PF4-000 Collar26MM |
90508-PF4-000 |
US $12.46 |
||
|
15
|
15
90603-PF4-003 CirclipEXTERNAL, 23MM |
90603-PF4-003 |
US $2.31 |
||
|
16
|
16
90613-PA9-000 RingSNAP, 26MM |
90613-PA9-000 |
US $2 |
||
|
17
|
17
91011-PA9-003 BearingNEEDLE, 32X38X20 (NTN) 00000000 - 6184094 |
91011-PA9-003 |
US $31.45 |
||
| replacement | |||||
|
17
|
17
91011-PG4-003 BearingNEEDLE, 32X38X20 (NTN) 00000000 - 6184094 |
91011-PG4-003 |
US $31.45 |
||
|
17
|
17
91011-PG4-003 BearingNEEDLE, 32X38X20 (NTN) 6184095 - |
91011-PG4-003 |
US $31.45 |
||
|
17
|
17
91011-PA9-004 BearingNEEDLE, 32X38X20 (KOYO) 6184095 - |
91011-PA9-004 |
US $10.08 |
||
|
18
|
18
91012-PA9-003 BearingNEEDLE, 31X36X18.5 |
91012-PA9-003 |
US $9.24 |
||
|
19
|
19
91017-PF4-003
Bearing
|
91017-PF4-003 |
— | ||
|
20
|
20
91018-PA9-003
Bearing
|
91018-PA9-003 |
— | ||
| replacement | |||||
|
20
|
20
91018-P56-003 BearingTHRUST NEEDLE, 32X44X2 (NTN) |
91018-P56-003 |
from US $5.04 |
||
|
21
|
21
91019-PA9-013 BearingTHRUST NEEDLE, 31X47X2 |
91019-PA9-013 |
from US $7 |
||
|
22
|
22
91023-PG4-003
Bearing
6247570 - 6375586 |
91023-PG4-003 |
— | ||
|
22
|
22
91023-PF4-003 BearingTHRUST NEEDLE, 36X52X2 00000000 - 6247569 |
91023-PF4-003 |
US $7.42 |
||
|
23
|
23
91026-PC9-003 BearingTHRUST NEEDLE, 42X58X2 (NTN) |
91026-PC9-003 |
US $7.28 |
||
|
23
|
23
91026-PC9-006
Bearing
|
91026-PC9-006 |
— | ||
|
23
|
23
91026-PC9-005
Bearing
|
91026-PC9-005 |
— | ||
|
24
|
24
91027-PC9-003 BearingNEEDLE, 36X41X18.3 |
91027-PC9-003 |
US $35.12 |
||
| replacement | |||||
|
24
|
24
91027-PC9-E01 BearingNEEDLE, 36X41X18.3 |
91027-PC9-E01 |
from US $9.24 |
||
|
25
|
25
91031-PC9-005
Bearing
|
91031-PC9-005 |
— | ||
|
25
|
25
91031-PC9-003 BearingTHRUST NEEDLE, 39X54X2 (NTN) |
91031-PC9-003 |
US $7.28 |
||
|
25
|
25
91031-PC9-006
Bearing
|
91031-PC9-006 |
— | ||
|
26
|
26
91307-PA9-003 O-ring 31.2X1.9 (ARAI)31.2X1.9 (ARAI) |
91307-PA9-003 |
from US $2.44 |
||
|
26
|
26
91307-PA9-004 O-ring31.2X1.9 (NOK) |
91307-PA9-004 |
US $3.93 |
||
| replacement | |||||
|
26
|
26
91307-PA9-003 O-ring 31.2X1.9 (ARAI)31.2X1.9 (ARAI) |
91307-PA9-003 |
from US $2.44 |
||
|
27
|
27
91308-PA9-004 O-ring19.8X1.9 (NOK) |
91308-PA9-004 |
US $4.15 |
||
| replacement | |||||
|
27
|
27
91308-PA9-003 O-ring19.8X1.9 (ARAI) |
91308-PA9-003 |
from US $2.15 |
||
|
27
|
27
91308-PA9-003 O-ring19.8X1.9 (ARAI) |
91308-PA9-003 |
from US $2.15 |
||
