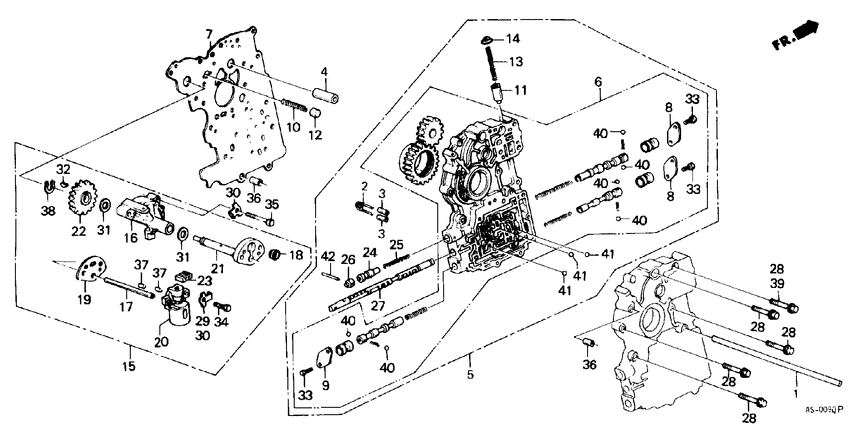

Main valve/governor Diagram Honda PRELUDE
- Year
- 1987
- Model code
- PRELUDE
- Sales region
- General
- Engine
- A20A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0SI
- abs
- +
- power steering
- +
- area code
- KQ
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22741-PF4-000
Pipe
|
22741-PF4-000 |
— | ||
|
2
|
2
24461-PA9-000
Spring
|
24461-PA9-000 |
— | ||
| replacement | |||||
|
2
|
2
24461-PA9-010
Spring
|
24461-PA9-010 |
— | ||
|
3
|
3
24471-612-000 Roller6X16 |
24471-612-000 |
US $3.43 |
||
|
4
|
4
25145-PA9-010 ShaftOIL PUMP GEAR |
25145-PA9-010 |
US $11.05 |
||
|
5
|
5
27000-PF4-613 Body assyMAIN VALVE 6325620 - |
27000-PF4-613 |
US $624.64 |
||
|
6
|
6
27105-PF4-613 Body sub assy.MAIN VALVE 6325620 - |
27105-PF4-613 |
US $613.12 |
||
|
7
|
7
27112-PF4-961
Plate
6325620 - |
27112-PF4-961 |
— | ||
|
8
|
8
27122-PA9-000 CoverSHIFT VALVE |
27122-PA9-000 |
US $3.29 |
||
|
9
|
9
27122-PC9-000 CoverSHIFT VALVE |
27122-PC9-000 |
US $2.73 |
||
|
10
|
10
27255-PF4-960
Spring
6066337 - |
27255-PF4-960 |
— | ||
|
10
|
10
27251-PF4-960
Spring
6066337 - |
27251-PF4-960 |
— | ||
|
10
|
10
27252-PF4-960
Spring
6066337 - |
27252-PF4-960 |
— | ||
|
10
|
10
27253-PF4-960
Spring
6066337 - |
27253-PF4-960 |
— | ||
|
10
|
10
27254-PF4-960
Spring
6066337 - |
27254-PF4-960 |
— | ||
|
11
|
11
27256-PA9-000
Valve
|
27256-PA9-000 |
— | ||
|
12
|
12
27256-639-000
Valve
|
27256-639-000 |
— | ||
|
13
|
13
27257-PA9-000
Spring
|
27257-PA9-000 |
— | ||
|
14
|
14
27258-680-900 SeatRELIEF VALVE SPRING |
27258-680-900 |
from US $1.82 |
||
|
15
|
15
27300-PF4-642 Governor assy.6277582 - |
27300-PF4-642 |
US $203.52 |
||
|
16
|
16
27310-PF4-000
Holder comp
|
27310-PF4-000 |
— | ||
|
17
|
17
27312-PC9-000
Pipe
|
27312-PC9-000 |
— | ||
|
18
|
18
27313-PF4-000 FilterGOVERNOR 6277582 - |
27313-PF4-000 |
US $4.48 |
||
|
19
|
19
27314-PC9-000 PlateGOVERNOR |
27314-PC9-000 |
US $3.15 |
||
|
20
|
20
27315-PF4-641
Body assy
|
27315-PF4-641 |
— | ||
|
21
|
21
27341-PC9-020
Shaft
6277582 - |
27341-PC9-020 |
— | ||
|
22
|
22
27342-PF4-000
Gear
|
27342-PF4-000 |
— | ||
|
23
|
23
27370-PF4-000 Filter assyEX. 6292273 - |
27370-PF4-000 |
US $4.20 |
||
|
24
|
24
27415-PF4-000
Valve
|
27415-PF4-000 |
— | ||
|
25
|
25
27417-PF4-000
Spring
|
27417-PF4-000 |
— | ||
|
26
|
26
27419-PF4-000
Cap
|
27419-PF4-000 |
— | ||
|
27
|
27
27421-PF4-000
Valve
|
27421-PF4-000 |
— | ||
|
29
|
29
90433-PF4-000
Washer
6258587 - |
90433-PF4-000 |
— | ||
|
30
|
30
90433-639-000 WasherLOCK, 6MM 6258587 - |
90433-639-000 |
US $7.38 |
||
|
31
|
31
90451-PC9-000 WasherTHRUST, 14MM |
90451-PC9-000 |
from US $2.44 |
||
|
32
|
32
90741-PA9-000 KeyWOODRUFF, 3MM |
90741-PA9-000 |
US $2.10 |
||
|
33
|
33
92000-05012-0A BoltHEX., 5X12 |
92000-05012-0A |
from US $0.37 |
||
| replacement | |||||
|
33
|
33
92101-05012-0G Bolt, hex. (5x12) |
92101-05012-0G |
from US $0.37 |
||
|
34
|
34
93300-060-180-A BoltHEX., 6X18 |
93300-060-180-A |
US $0.44 |
||
|
35
|
35
93300-060-300-H BoltHEX., 6X30 |
93300-060-300-H |
US $0.52 |
||
|
36
|
36
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
37
|
37
94303-05080 Dowel pin5X8 |
94303-05080 |
from US $0.81 |
||
|
38
|
38
94510-14000 CirclipEXTERNAL, 14MM |
94510-14000 |
from US $0.22 |
||
|
39
|
39
95701-060-380-7 BoltFLANGE, 6X38 6325620 - |
95701-060-380-7 |
US $0.59 |
||
|
40
|
40
96211-06000 BallSTEEL, #6(3/16) |
96211-06000 |
from US $0.15 |
||
|
42
|
42
96220-30198 Roller3X19.8 |
96220-30198 |
from US $0.22 |
||
