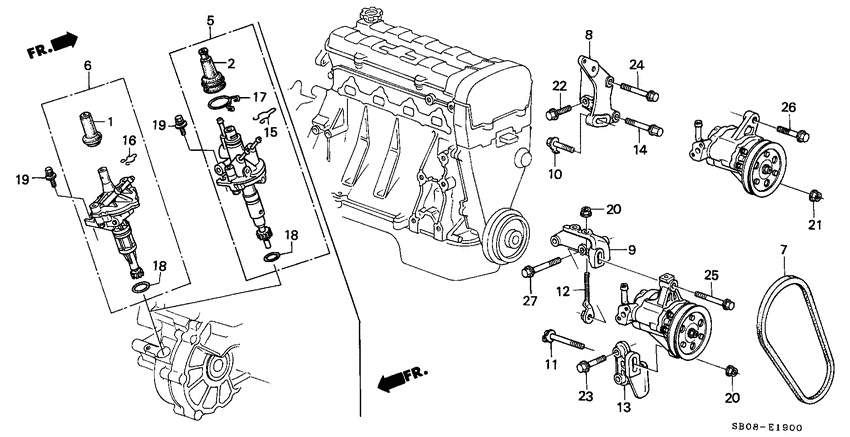

P.s. pump/speed sensor Diagram Honda PRELUDE
- Year
- 1987
- Model code
- PRELUDE
- Sales region
- General
- Engine
- A20A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0SI
- abs
- +
- power steering
- +
- area code
- KQ
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23814-689-000 SealGEAR HOLDER |
23814-689-000 |
US $5.18 |
||
|
6
|
6
56500-PH1-904 Sensor assySPEED 2700001 - |
56500-PH1-904 |
US $190.72 |
||
|
7
|
7
56992-PH1-004 BeltPOWER STEERING PUMP (BANDO) |
56992-PH1-004 |
US $15.36 |
||
|
8
|
8
56994-PH1-000
Bracket
|
56994-PH1-000 |
— | ||
|
10
|
10
56995-PC6-000
Bolt
|
56995-PC6-000 |
— | ||
|
14
|
14
95700-100-450-8 BoltFLANGE, 10X45 |
95700-100-450-8 |
US $0.89 |
||
|
16
|
16
90637-689-000 ClipSPEEDOMETER CABLE |
90637-689-000 |
US $3.42 |
||
|
18
|
18
91313-611-010 O-ring23.5X2 2700001 - |
91313-611-010 |
US $2.65 |
||
|
21
|
21
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
22
|
22
95700-100-300-8 BoltFLANGE, 10X30 |
95700-100-300-8 |
US $0.81 |
||
|
24
|
24
95700-100-500-8 BoltFLANGE, 10X50 |
95700-100-500-8 |
from US $0.89 |
||
| replacement | |||||
|
24
|
24
95701-100-500-8 BoltFLANGE, 10X50 |
95701-100-500-8 |
from US $0.98 |
||
