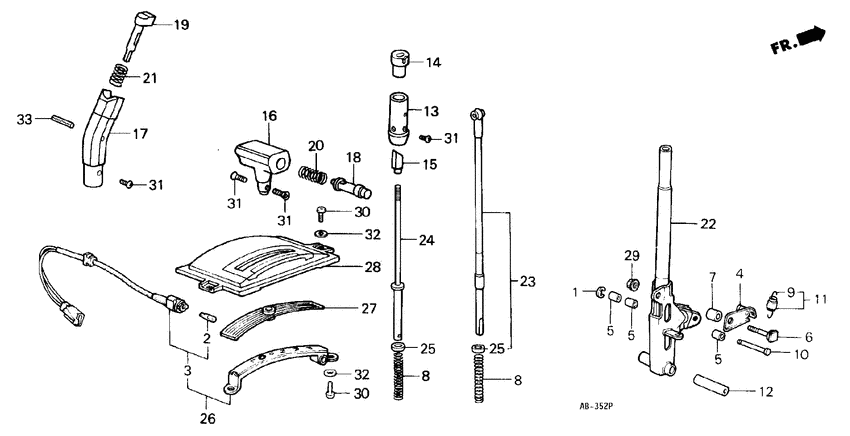

Selector lever (AT) Diagram Honda PRELUDE
- Year
- 1987
- Model code
- PRELUDE
- Sales region
- General
- Engine
- A20A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0SI
- abs
- +
- power steering
- +
- area code
- KQ
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30158-700-010 E-clip3MM |
30158-700-010 |
from US $1.14 |
||
|
2
|
2
35505-692-003 Bulb14V 1.4W |
35505-692-003 |
from US $2.07 |
||
|
3
|
3
37700-SB0-981
Lamp assy.
|
37700-SB0-981 |
— | ||
|
4
|
4
54110-SA5-981
Stopper comp
|
54110-SA5-981 |
— | ||
|
5
|
5
54113-692-980
Collar
|
54113-692-980 |
— | ||
|
6
|
6
54115-SA5-981
Bolt
|
54115-SA5-981 |
— | ||
|
7
|
7
54116-SA5-980
Collar
|
54116-SA5-980 |
— | ||
|
8
|
8
54117-SB0-980
Spring
|
54117-SB0-980 |
— | ||
|
9
|
9
54118-SA5-980
Spring
|
54118-SA5-980 |
— | ||
|
10
|
10
54119-689-981
Pin
|
54119-689-981 |
— | ||
|
11
|
11
54120-SA5-980
Spring
|
54120-SA5-980 |
— | ||
|
12
|
12
54123-SA0-980
Collar
|
54123-SA0-980 |
— | ||
|
13
|
13
54126-SB0-980
Pipe
|
54126-SB0-980 |
— | ||
|
14
|
14
54127-SB0-981
Bush
|
54127-SB0-981 |
— | ||
|
15
|
15
54128-SB0-981
Cam
|
54128-SB0-981 |
— | ||
|
17
|
17
54131-SB0-981
Knob
|
54131-SB0-981 |
— | ||
|
19
|
19
54132-SB0-981
Knob
|
54132-SB0-981 |
— | ||
|
21
|
21
54133-SB0-981
Spring
|
54133-SB0-981 |
— | ||
|
22
|
22
54135-SB0-730
Lever
|
54135-SB0-730 |
— | ||
|
24
|
24
54137-SB0-980
Rod
|
54137-SB0-980 |
— | ||
|
25
|
25
54142-SA5-980 BushGUIDE |
54142-SA5-980 |
from US $3.57 |
||
|
26
|
26
54210-SB0-702
Indicator assy.
|
54210-SB0-702 |
— | ||
|
27
|
27
54222-689-980
Cover
|
54222-689-980 |
— | ||
|
28
|
28
54710-SA5-981
Escutcheon comp.
|
54710-SA5-981 |
— | ||
|
29
|
29
90114-SA0-000 NutSELF-LOCK, 6MM |
90114-SA0-000 |
from US $1.70 |
||
|
30
|
30
93500-050-080-G ScrewPAN, 5X8 |
93500-050-080-G |
from US $0.37 |
||
|
31
|
31
93700-040-060-G ScrewOVAL, 4X6 |
93700-040-060-G |
from US $0.37 |
||
|
32
|
32
94101-05700 WasherPLAIN, 5MM |
94101-05700 |
from US $0.37 |
||
|
33
|
33
94305-20202 PinSPRING, 2X20 |
94305-20202 |
from US $0.74 |
