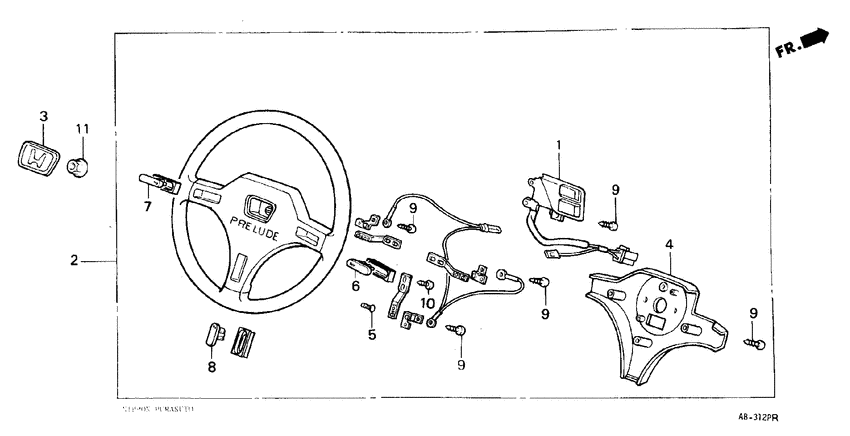

Steering wheel (PGM-FI) Diagram Honda PRELUDE
- Year
- 1987
- Model code
- PRELUDE
- Sales region
- General
- Engine
- A20A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0SI
- abs
- +
- power steering
- +
- area code
- KQ
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36770-SF0-671
Switch assy
0C100001 - |
36770-SF0-671 |
— | ||
|
2
|
2
53110-SF0-672ZA
Wheel comp.
0C100001 - |
53110-SF0-672ZA |
— | ||
|
3
|
3
53122-SF0-003ZA
Emblem *nh1l*
|
53122-SF0-003ZA |
— | ||
|
4
|
4
53133-SF0-671ZA
Cover
0C100001 - |
53133-SF0-671ZA |
— | ||
|
5
|
5
53162-692-003
Bolt
|
53162-692-003 |
— | ||
|
6
|
6
53171-SF0-003ZA
Button
|
53171-SF0-003ZA |
— | ||
|
7
|
7
53181-SF0-003ZA
Button
|
53181-SF0-003ZA |
— | ||
|
8
|
8
53191-SF0-003ZA
Button
|
53191-SF0-003ZA |
— | ||
|
9
|
9
90107-SA5-000
Screw
0C100001 - |
90107-SA5-000 |
— | ||
|
10
|
10
90110-SB2-003
Screw
|
90110-SB2-003 |
— | ||
|
11
|
11
90380-SB2-003 NutSELF-LOCK (OHASHI) |
90380-SB2-003 |
from US $2.28 |
