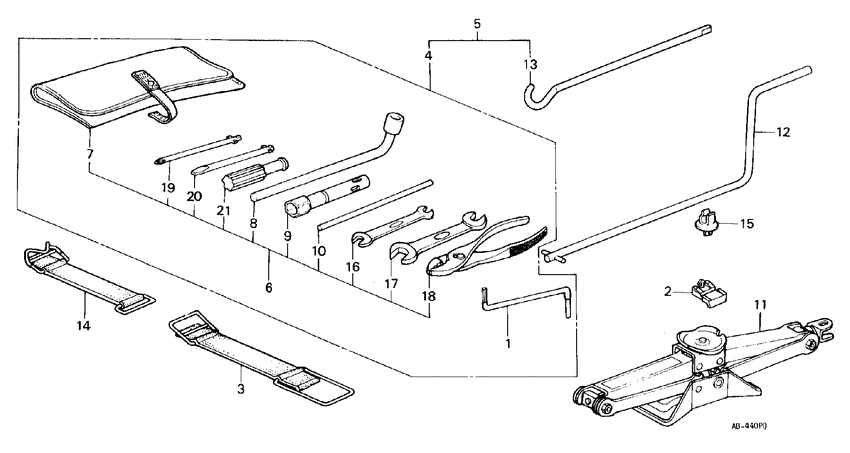

Tools/jack Diagram Honda PRELUDE
- Year
- 1987
- Model code
- PRELUDE
- Sales region
- General
- Engine
- A20A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0SI
- abs
- +
- power steering
- +
- area code
- KQ
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71969-SA7-890
Wrench
|
71969-SA7-890 |
— | ||
|
2
|
2
72234-SF0-003
Adapter
|
72234-SF0-003 |
— | ||
|
5
|
5
89000-SE3-900
Tool set
|
89000-SE3-900 |
— | ||
|
7
|
7
89101-SE3-010ZC BagTOOL *BROWN* 0C100001 - |
89101-SE3-010ZC |
US $9.66 |
||
|
7
|
7
89101-SE3-010ZD BagTOOL *ORANGE* 0C100001 - |
89101-SE3-010ZD |
US $9.66 |
||
|
7
|
7
89101-SE3-010ZA BagTOOL *NH1L* 0C100001 - |
89101-SE3-010ZA |
US $9.66 |
||
|
7
|
7
89101-SE3-010ZB BagTOOL *BLUE* 0C100001 - |
89101-SE3-010ZB |
US $9.66 |
||
|
8
|
8
89211-SE3-003
Wrench
|
89211-SE3-003 |
— | ||
|
9
|
9
89216-642-810
Wrench
|
89216-642-810 |
— | ||
|
10
|
10
89218-611-003
Shaft
|
89218-611-003 |
— | ||
| replacement | |||||
|
10
|
10
89218-611-004
Shaft
|
89218-611-004 |
— | ||
|
11
|
11
89310-SE3-Q03 Jack assyPANTOGRAPH 0C001036 - |
89310-SE3-Q03 |
US $128 |
||
|
13
|
13
89320-SE3-003
Bar
|
89320-SE3-003 |
— | ||
| replacement | |||||
|
13
|
13
89320-S50-003 BarJACK |
89320-S50-003 |
US $20.50 |
||
|
16
|
16
99001-10120 Spanner |
99001-10120 |
from US $3.55 |
||
|
17
|
17
99001-14170 Spanner14X17 |
99001-14170 |
from US $4.59 |
||
|
18
|
18
99002-15000 Pliers150 |
99002-15000 |
from US $6.51 |
||
|
19
|
19
99003-10000 Driver1PLUS SCREW(NO.2) |
99003-10000 |
from US $1.41 |
||
|
20
|
20
99003-30000 Driver 3MINUS SCREW (NO.2) |
99003-30000 |
from US $1.41 |
||
|
21
|
21
99003-50000 GripSCREW DRIVER |
99003-50000 |
from US $1.70 |
||
