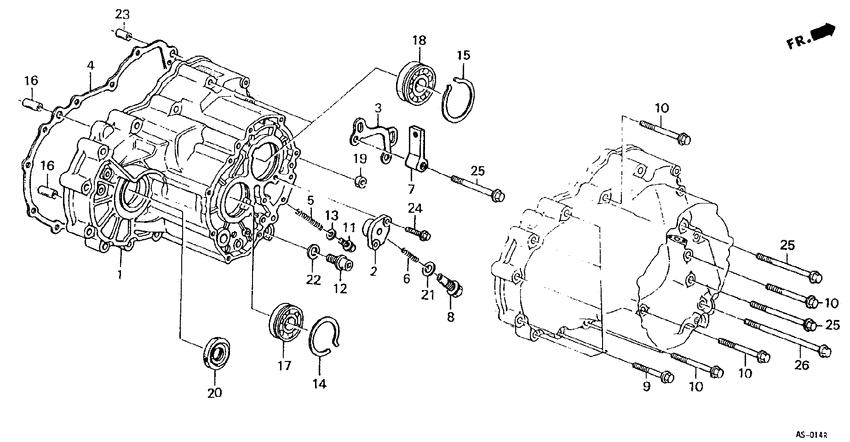

Transmission case Diagram Honda PRELUDE
- Year
- 1987
- Model code
- PRELUDE
- Sales region
- General
- Engine
- A20A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0SI
- abs
- +
- power steering
- +
- area code
- KQ
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21211-PF4-030 CaseTRANSMISSION 6230055 - |
21211-PF4-030 |
US $567.04 |
||
|
2
|
2
21215-PF4-000 HolderREVERSE IDLE SHAFT |
21215-PF4-000 |
US $10.50 |
||
|
3
|
3
21232-PF4-000
Hanger
|
21232-PF4-000 |
— | ||
|
4
|
4
21811-PF4-000
Gasket
|
21811-PF4-000 |
— | ||
|
6
|
6
23544-PC9-810
Spring b
|
23544-PC9-810 |
— | ||
|
7
|
7
27497-PF4-000
Stay
|
27497-PF4-000 |
— | ||
|
8
|
8
90007-PC9-810 BoltREVERSE HOLDER |
90007-PC9-810 |
US $2.94 |
||
|
9
|
9
90014-PA9-000 BoltFLANGE, 10X55 |
90014-PA9-000 |
US $3.36 |
||
|
10
|
10
90015-PA9-000 BoltFLANGE, 10X75 |
90015-PA9-000 |
US $11.17 |
||
|
12
|
12
90081-PB6-000 BoltPLUG, 14MM |
90081-PB6-000 |
from US $6.07 |
||
|
14
|
14
90609-PA9-000 RingSNAP, 68MM |
90609-PA9-000 |
US $6.44 |
||
|
15
|
15
90615-PF4-000 RingSNAP, 75MM |
90615-PF4-000 |
US $2.73 |
||
|
16
|
16
90705-PA9-000 Dowel pin14X25 |
90705-PA9-000 |
US $2.80 |
||
|
17
|
17
91002-PA9-003
Bearing
|
91002-PA9-003 |
— | ||
|
18
|
18
91006-PF4-003 BearingBALL, 63/32-26 (NTN) |
91006-PF4-003 |
US $14.72 |
||
|
19
|
19
91201-PA9-003 Oil seal9X18X7 (NOK) |
91201-PA9-003 |
US $7 |
||
|
19
|
19
91201-PA9-004 Oil seal9X18X7 (ARAI) |
91201-PA9-004 |
from US $3.33 |
||
|
20
|
20
91205-PC9-711 Oil seal40X62X8 (NOK) |
91205-PC9-711 |
from US $13.79 |
||
|
21
|
21
94102-10800 WasherPLAIN, 10MM |
94102-10800 |
from US $0.44 |
||
|
22
|
22
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
|
23
|
23
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
|
24
|
24
95700-060-200-8
Bolt
|
95700-060-200-8 |
— | ||
| replacement | |||||
|
24
|
24
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
25
|
25
95700-101-000-8 BoltFLANGE, 10X100 |
95700-101-000-8 |
from US $1.48 |
||
| replacement | |||||
|
25
|
25
95701-101-000-8 BoltFLANGE, 10X100 |
95701-101-000-8 |
from US $0.74 |
||
|
26
|
26
95700-101-400-8 BoltFLANGE, 10X140 |
95700-101-400-8 |
US $1.85 |
||
