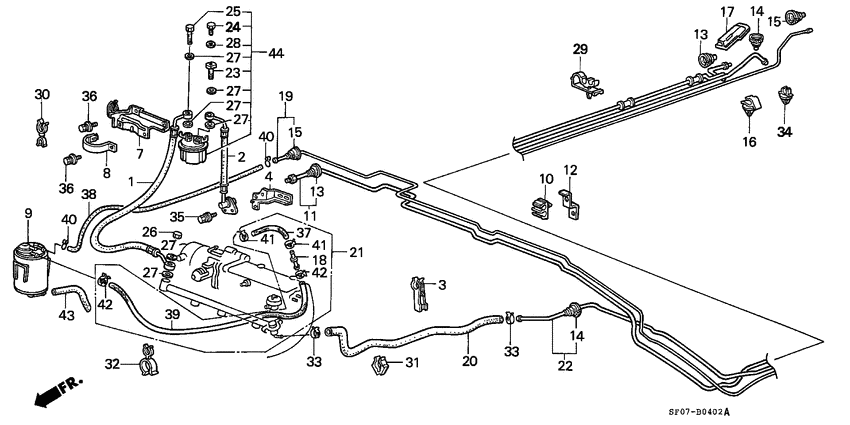

Feed pipe/return pipe (PGM-FI) Diagram Honda PRELUDE
- Year
- 1986
- Model code
- PRELUDE
- Sales region
- General
- Engine
- A20A
- transmission
- 5MT
- Number of doors
- 2
- grade
- 2.0SI
- power steering
- +
- area code
- KY
- auto cruise
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16720-PJ5-004
Hose comp. b
|
16720-PJ5-004 |
— | ||
|
2
|
2
16721-SF0-931 HoseFUEL STRAINER 00000000 - 0C000163 |
16721-SF0-931 |
US $72.32 |
||
|
2
|
2
16721-SF0-932
Hose
0C000164 - |
16721-SF0-932 |
— | ||
|
3
|
3
16724-PH3-000
Clamp a
|
16724-PH3-000 |
— | ||
|
4
|
4
16730-SF0-930
Stay
|
16730-SF0-930 |
— | ||
|
7
|
7
16918-SF0-670
Stay
|
16918-SF0-670 |
— | ||
|
8
|
8
16919-SF0-930
Band
|
16919-SF0-930 |
— | ||
|
9
|
9
17300-SE0-A30
Canister assy
|
17300-SE0-A30 |
— | ||
|
10
|
10
17506-SB0-671
Clip
|
17506-SB0-671 |
— | ||
|
11
|
11
17700-SF0-671
Pipe comp
|
17700-SF0-671 |
— | ||
|
12
|
12
17705-SB0-670
Bracket
|
17705-SB0-670 |
— | ||
|
13
|
13
17710-SD7-930
Grommet
|
17710-SD7-930 |
— | ||
|
14
|
14
17711-SA7-930
Grommet
|
17711-SA7-930 |
— | ||
|
15
|
15
17712-SA0-000 GrommetFUEL PIPE |
17712-SA0-000 |
US $8.14 |
||
|
16
|
16
17713-SA5-003 ClampFUEL VENT PIPE(BLACK) |
17713-SA5-003 |
US $2.31 |
||
|
17
|
17
17714-SB0-013
Cover
|
17714-SB0-013 |
— | ||
|
18
|
18
17716-SB2-680
Joint
|
17716-SB2-680 |
— | ||
|
19
|
19
17720-SF0-671
Pipe comp. a
|
17720-SF0-671 |
— | ||
|
20
|
20
17723-SF0-670
Hose
|
17723-SF0-670 |
— | ||
|
21
|
21
17726-SF0-680
Hose assy
|
17726-SF0-680 |
— | ||
|
22
|
22
17740-SF0-671
Pipe comp
|
17740-SF0-671 |
— | ||
|
23
|
23
90008-PD6-000
Bolt
|
90008-PD6-000 |
— | ||
|
24
|
24
90009-PE2-010 BoltSEALING, 6MM |
90009-PE2-010 |
US $4.03 |
||
| replacement | |||||
|
24
|
24
90009-RMX-010 Bolt,sealing 6mm |
90009-RMX-010 |
from US $2.73 |
||
|
25
|
25
90020-PD1-000 BoltSEALING, 12MM |
90020-PD1-000 |
US $6.19 |
||
| replacement | |||||
|
25
|
25
90020-PD6-000 BoltSEALING, 12MM |
90020-PD6-000 |
from US $7.99 |
||
|
26
|
26
90201-PD1-000 Nut aSEALING, 12MM |
90201-PD1-000 |
from US $2.15 |
||
|
27
|
27
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2.38 |
||
|
28
|
28
90430-PD6-003 WasherSEALING, 6MM |
90430-PD6-003 |
from US $1.48 |
||
|
29
|
29
90665-SD7-931
Clamp
|
90665-SD7-931 |
— | ||
|
30
|
30
90681-SA9-600
Clip
|
90681-SA9-600 |
— | ||
|
31
|
31
90684-SE0-000 ClipFUEL HOSE |
90684-SE0-000 |
US $2.59 |
||
|
32
|
32
90684-SF0-003
Clamp
|
90684-SF0-003 |
— | ||
|
33
|
33
91406-SA7-931 ClampFUEL HOSE, 15.5MM |
91406-SA7-931 |
US $10.18 |
||
| replacement | |||||
|
33
|
33
91406-SL0-931 ClampFUEL HOSE, 15.5MM |
91406-SL0-931 |
from US $4 |
||
|
34
|
34
91591-SB0-003
Clip
|
91591-SB0-003 |
— | ||
|
35
|
35
93495-060-120-8 Bolt-washer6X12 |
93495-060-120-8 |
US $0.59 |
||
|
36
|
36
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
36
|
36
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
37
|
37
95001-350-702-0 HoseFUEL, 3.5X70 (95001-35001-50M) |
95001-350-702-0 |
US $1.18 |
||
|
38
|
38
95001-451-403-0
Tube
|
95001-451-403-0 |
— | ||
|
39
|
39
95001-553-702-0 HoseFUEL, 5.3X370 (95001-55001-50M) |
95001-553-702-0 |
US $8.29 |
||
|
40
|
40
95002-02084 ClipTUBE (B8) |
95002-02084 |
from US $0.44 |
||
|
41
|
41
95002-408-000-4 ClampTUBE(D8) |
95002-408-000-4 |
from US $0.74 |
||
|
42
|
42
95002-410-500-8 ClampTUBE(D10.5) |
95002-410-500-8 |
from US $0.74 |
||
|
43
|
43
95003-400-206-0 TubeVINYL, 12X16X200 (95003-40001-60M) |
95003-400-206-0 |
US $4 |
||
|
44
|
44
16010-SF0-670
Strainer set
|
16010-SF0-670 |
— | ||
