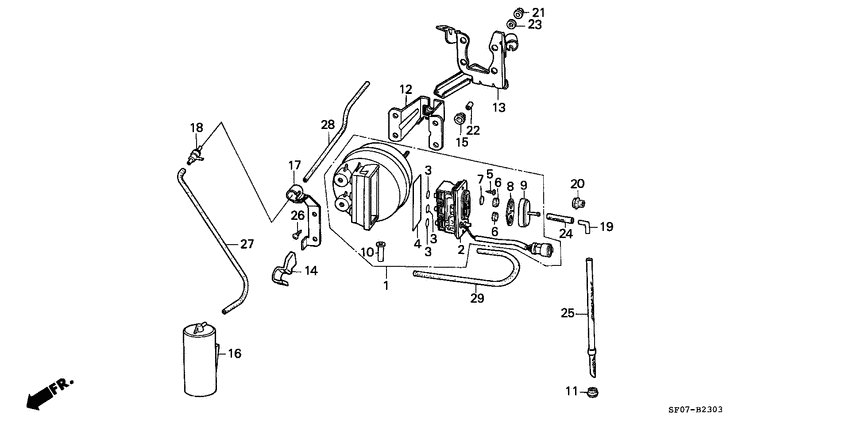

Auto cruise Diagram Honda PRELUDE
- Year
- 1986
- Model code
- PRELUDE
- Sales region
- General
- Engine
- A20A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0SI
- power steering
- +
- area code
- KY
- auto cruise
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36520-PH4-662
Actuator assy
|
36520-PH4-662 |
— | ||
|
2
|
2
36521-PH4-661
Valve comp
|
36521-PH4-661 |
— | ||
|
3
|
3
36522-PC1-004
O-ring
|
36522-PC1-004 |
— | ||
|
4
|
4
36523-PC1-004 PackingHITACHI |
36523-PC1-004 |
US $5.32 |
||
|
5
|
5
36524-PC1-004
Screw
|
36524-PC1-004 |
— | ||
|
6
|
6
36525-PC1-004
Filter
|
36525-PC1-004 |
— | ||
|
7
|
7
36526-PC1-004
Paper
|
36526-PC1-004 |
— | ||
|
8
|
8
36527-PC1-004 PackingFILTER (HITACHI) |
36527-PC1-004 |
US $3.57 |
||
|
9
|
9
36528-PC1-004
Cover
|
36528-PC1-004 |
— | ||
|
10
|
10
36529-PC1-014
Drain
|
36529-PC1-014 |
— | ||
|
11
|
11
36600-PD2-000
Grommet
|
36600-PD2-000 |
— | ||
|
12
|
12
36612-PC6-000
Support comp
|
36612-PC6-000 |
— | ||
|
13
|
13
36613-PJ6-660
Stay
00000000 - 0C100000 |
36613-PJ6-660 |
— | ||
|
14
|
14
36617-PC1-000
Clamp
|
36617-PC1-000 |
— | ||
|
15
|
15
36619-PC6-004 RubberMOUNTING |
36619-PC6-004 |
US $2.52 |
||
|
16
|
16
36625-PH4-661
Tank comp.
|
36625-PH4-661 |
— | ||
|
17
|
17
36626-PJ6-660
Stay
00000000 - 0C100000 |
36626-PJ6-660 |
— | ||
|
18
|
18
36627-PC1-004
Valve
|
36627-PC1-004 |
— | ||
| replacement | |||||
|
18
|
18
36627-PC1-014
Valve
|
36627-PC1-014 |
— | ||
|
19
|
19
36645-PC1-000
Joint
|
36645-PC1-000 |
— | ||
|
20
|
20
38989-PJ5-000
Grommet
|
38989-PJ5-000 |
— | ||
|
21
|
21
90301-PC1-000 NutHEX., 6MM |
90301-PC1-000 |
US $2.87 |
||
|
22
|
22
90526-PC1-000 CollarDISTANCE |
90526-PC1-000 |
US $2.24 |
||
|
23
|
23
90528-PC1-000
Washer
|
90528-PC1-000 |
— | ||
|
24
|
24
91426-PB3-000
Tube
|
91426-PB3-000 |
— | ||
|
25
|
25
91426-PJ5-000
Tube
|
91426-PJ5-000 |
— | ||
|
27
|
27
95005-452-201-0 Tube4.5X220 (95005-45001-10M) |
95005-452-201-0 |
US $4 |
||
|
28
|
28
95005-454-801-0 Tube4.5X480 (95005-45001-10M) |
95005-454-801-0 |
US $7.70 |
||
|
29
|
29
95005-456-301-0 Tube4.5X630 (95005-45001-10M) |
95005-456-301-0 |
US $10.21 |
||
