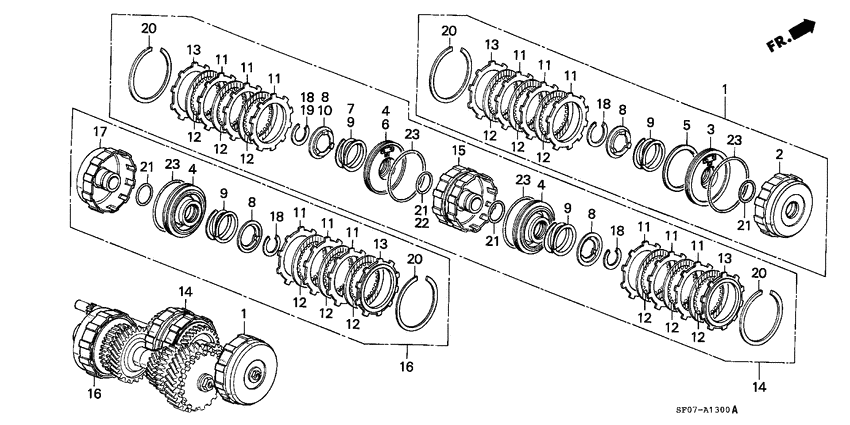

Clutch/clutch disk Diagram Honda PRELUDE
- Year
- 1986
- Model code
- PRELUDE
- Sales region
- General
- Engine
- A20A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0SI
- power steering
- +
- area code
- KY
- auto cruise
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22500-PF4-020 Clutch assy.LOW 00000000 - 6103205 |
22500-PF4-020 |
US $433.92 |
||
|
1
|
1
22500-PF4-040
Clutch assy.
6117008 - 6129596 |
22500-PF4-040 |
— | ||
|
1
|
1
22500-PF4-030 Clutch assy.LOW 6103206 - 6117007 |
22500-PF4-030 |
US $413.44 |
||
|
1
|
1
22500-PF4-050
Clutch assy.
6129597 - |
22500-PF4-050 |
— | ||
|
2
|
2
22510-PF4-000
Guide comp
|
22510-PF4-000 |
— | ||
|
3
|
3
22520-PF4-010 Piston compLOW CLUTCH |
22520-PF4-010 |
US $59.78 |
||
|
4
|
4
22530-PF4-000 Piston compCLUTCH 00000000 - 6375586 |
22530-PF4-000 |
US $57.73 |
||
|
5
|
5
22539-PF4-000
Plate
|
22539-PF4-000 |
— | ||
|
6
|
6
22540-PF4-000
Piston comp
6375587 - |
22540-PF4-000 |
— | ||
|
7
|
7
22541-PG4-000
Spring
6375587 - |
22541-PG4-000 |
— | ||
|
8
|
8
22542-PA9-000 SeatCLUTCH SPRING 00000000 - 6375586 |
22542-PA9-000 |
from US $2.80 |
||
|
9
|
9
22542-PF4-013
Spring
6117008 - 6375586 |
22542-PF4-013 |
— | ||
|
9
|
9
22542-PF4-003
Spring
00000000 - 6117007 |
22542-PF4-003 |
— | ||
|
10
|
10
22542-PG4-000
Seat
6375587 - |
22542-PG4-000 |
— | ||
|
11
|
11
22543-PF4-000 PlateCLUTCH (116MM) |
22543-PF4-000 |
US $7 |
||
|
12
|
12
22544-PF4-010 DiskCLUTCH 6129597 - |
22544-PF4-010 |
US $21.76 |
||
|
12
|
12
22544-PF4-000
Disk
00000000 - 6129596 |
22544-PF4-000 |
— | ||
|
13
|
13
22551-PF4-000
Plate
|
22551-PF4-000 |
— | ||
|
13
|
13
22558-PF4-000 PlateCLUTCH END (8) (2.8MM) |
22558-PF4-000 |
US $15.87 |
||
|
13
|
13
22553-PF4-000 PlateCLUTCH END (3) (2.3MM) |
22553-PF4-000 |
US $15.87 |
||
|
13
|
13
22560-PF4-000 PlateCLUTCH END (10) (3.0MM) |
22560-PF4-000 |
US $15.87 |
||
|
13
|
13
22555-PF4-000 PlateCLUTCH END (5) (2.5MM) |
22555-PF4-000 |
US $15.87 |
||
|
13
|
13
22557-PF4-000 PlateCLUTCH END (7) (2.7MM) |
22557-PF4-000 |
US $15.87 |
||
|
13
|
13
22552-PF4-000 PlateCLUTCH END (2) (2.2MM) |
22552-PF4-000 |
US $15.87 |
||
|
13
|
13
22559-PF4-000 PlateCLUTCH END (9) (2.9MM) |
22559-PF4-000 |
US $15.87 |
||
|
13
|
13
22554-PF4-000 PlateCLUTCH END (4) (2.4MM) |
22554-PF4-000 |
US $15.87 |
||
|
13
|
13
22556-PF4-000 PlateCLUTCH END (6) (2.6MM) |
22556-PF4-000 |
US $15.87 |
||
|
14
|
14
22600-PF4-020
Clutch assy.
6129597 - 6375586 |
22600-PF4-020 |
— | ||
|
14
|
14
22605-PF4-305
Clutch assy. set
6129597 - 6375586 |
22605-PF4-305 |
— | ||
|
14
|
14
22600-PF4-010
Clutch assy.
6117008 - 6129596 |
22600-PF4-010 |
— | ||
|
14
|
14
22600-PF4-000
Clutch assy.
00000000 - 6117007 |
22600-PF4-000 |
— | ||
|
15
|
15
22610-PF4-000
Guide comp
00000000 - 6375586 |
22610-PF4-000 |
— | ||
|
16
|
16
22650-PF4-000
Clutch assy.
00000000 - 6117007 |
22650-PF4-000 |
— | ||
|
16
|
16
22650-PF4-020
Clutch assy.
6129597 - |
22650-PF4-020 |
— | ||
|
16
|
16
22650-PF4-010
Clutch assy.
6117008 - 6129596 |
22650-PF4-010 |
— | ||
|
17
|
17
22661-PF4-000 Guide compTHIRD CLUTCH |
22661-PF4-000 |
US $166.40 |
||
|
18
|
18
90603-PA9-000 CirclipEXTERNAL, 40MM 00000000 - 6375586 |
90603-PA9-000 |
from US $3.11 |
||
|
19
|
19
90603-PG4-000 CirclipEXTERNAL, 43MM 6375587 - |
90603-PG4-000 |
US $3.99 |
||
|
20
|
20
90605-PF4-000 RingSNAP, 125MM |
90605-PF4-000 |
US $7 |
||
|
21
|
21
91302-PA9-004 O-ring39.8X2.2 (NOK) 00000000 - 6375586 |
91302-PA9-004 |
US $4.51 |
||
| replacement | |||||
|
21
|
21
91302-PA9-003 O-ring39.8X2.2 (ARAI) 00000000 - 6375586 |
91302-PA9-003 |
from US $2.96 |
||
|
21
|
21
91302-PA9-003 O-ring39.8X2.2 (ARAI) 00000000 - 6375586 |
91302-PA9-003 |
from US $2.96 |
||
|
22
|
22
91302-PG4-003 O-ring42.8X2.2 (ARAI) 6375587 - |
91302-PG4-003 |
US $3.40 |
||
|
23
|
23
91303-PF4-004 O-ring110X2.2 (NOK) |
91303-PF4-004 |
US $4 |
||
