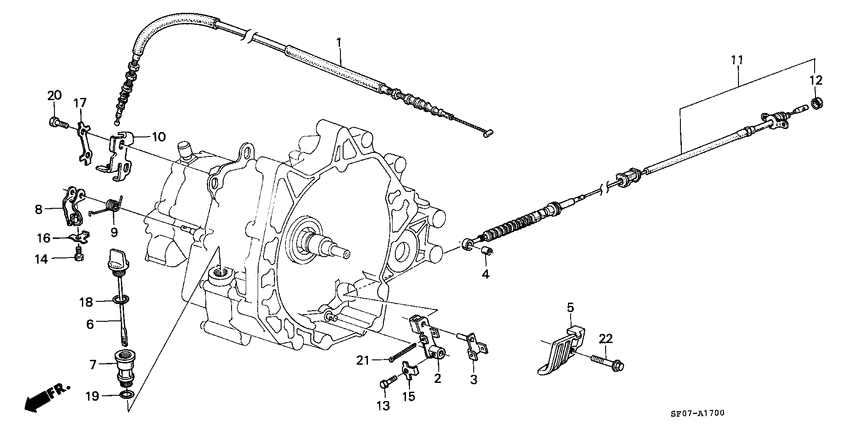

Control lever/ control wire Diagram Honda PRELUDE
- Year
- 1986
- Model code
- PRELUDE
- Sales region
- General
- Engine
- A20A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0SI
- power steering
- +
- area code
- KY
- auto cruise
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24360-PF4-013 Cable compTHROTTLE (AT) |
24360-PF4-013 |
US $32.64 |
||
|
2
|
2
24412-PC9-000
Lever
|
24412-PC9-000 |
— | ||
|
3
|
3
24414-PA9-010 PinCONTROL |
24414-PA9-010 |
US $4.06 |
||
|
4
|
4
24415-PA9-000 RollerCONTROL LEVER |
24415-PA9-000 |
US $2.80 |
||
|
5
|
5
24901-PF4-000
Holder
|
24901-PF4-000 |
— | ||
|
6
|
6
25610-PF4-020
Gauge comp.
00000000 - 6111196 |
25610-PF4-020 |
— | ||
|
6
|
6
25610-PF4-800
Gauge comp.
6111197 - |
25610-PF4-800 |
— | ||
|
7
|
7
25613-PF4-000
Pipe
|
25613-PF4-000 |
— | ||
|
8
|
8
27494-PF4-000
Lever
|
27494-PF4-000 |
— | ||
|
9
|
9
27495-PF4-000
Spring
|
27495-PF4-000 |
— | ||
|
10
|
10
27496-PF4-000
Stay
|
27496-PF4-000 |
— | ||
|
11
|
11
54315-SF0-984
Wire
|
54315-SF0-984 |
— | ||
|
11
|
11
54315-SF0-983
Wire
|
54315-SF0-983 |
— | ||
|
12
|
12
54341-SA0-980
Boot
|
54341-SA0-980 |
— | ||
|
13
|
13
90001-PA9-000 BoltHEX., 6MM |
90001-PA9-000 |
from US $1.89 |
||
|
14
|
14
90010-PA9-000
Bolt
|
90010-PA9-000 |
— | ||
|
15
|
15
90433-639-000 WasherLOCK, 6MM |
90433-639-000 |
US $7.38 |
||
|
16
|
16
90436-PA9-000
Washer
|
90436-PA9-000 |
— | ||
|
17
|
17
90437-PA9-000
Washer
|
90437-PA9-000 |
— | ||
|
18
|
18
91307-425-003 O-ring21.5X3.2 6278572 - |
91307-425-003 |
from US $1.67 |
||
|
18
|
18
91301-250-000 O-ring21.5MM 00000000 - 6278571 |
91301-250-000 |
from US $2.29 |
||
| replacement | |||||
|
18
|
18
91307-425-003 O-ring21.5X3.2 00000000 - 6278571 |
91307-425-003 |
from US $1.67 |
||
|
19
|
19
91324-PC6-000 O-ring20.6X2.6 |
91324-PC6-000 |
from US $1.78 |
||
|
20
|
20
92000-06016-0H BoltHEX., 6X16 |
92000-06016-0H |
from US $0.44 |
||
| replacement | |||||
|
20
|
20
92101-06016-0H BoltHEX., 6X16 |
92101-06016-0H |
from US $0.44 |
||
|
21
|
21
94201-20280 PinSPLIT, 2.0X28 |
94201-20280 |
from US $0.44 |
||
| replacement | |||||
|
21
|
21
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
22
|
22
95700-080-350-8 BoltFLANGE, 8X35 |
95700-080-350-8 |
from US $0.74 |
||
| replacement | |||||
|
22
|
22
95701-080-350-8 BoltFLANGE, 8X35 |
95701-080-350-8 |
from US $0.74 |
||
