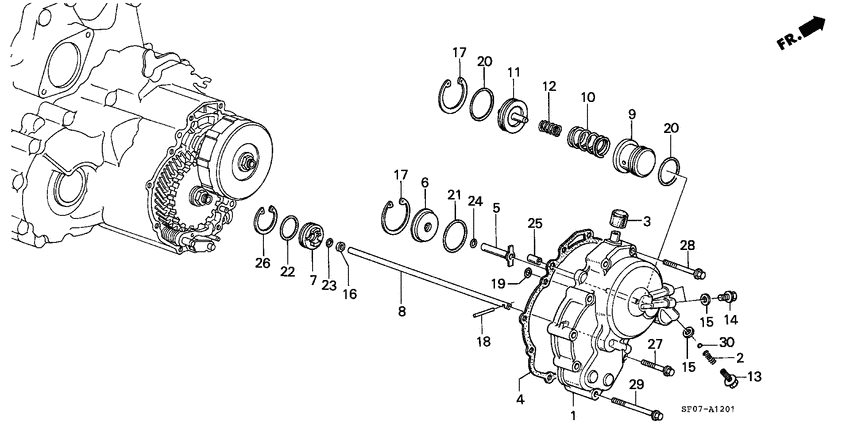

Right side cover Diagram Honda PRELUDE
- Year
- 1986
- Model code
- PRELUDE
- Sales region
- General
- Engine
- A20A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0SI
- power steering
- +
- area code
- KY
- auto cruise
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21240-PF4-020
Cover comp.
|
21240-PF4-020 |
— | ||
|
2
|
2
21244-PF4-010
Spring
|
21244-PF4-010 |
— | ||
|
3
|
3
21396-611-010 CapBREATHER |
21396-611-010 |
US $4.22 |
||
|
4
|
4
21812-PF4-000
Gasket
|
21812-PF4-000 |
— | ||
|
5
|
5
22710-PF4-010
Pipe a
|
22710-PF4-010 |
— | ||
|
6
|
6
22713-PC9-010 Guide aFEED PIPE |
22713-PC9-010 |
from US $2.38 |
||
|
7
|
7
22721-PA9-003 FlangeFEED PIPE |
22721-PA9-003 |
US $7.56 |
||
|
8
|
8
22722-PC9-000 Pipe cFEED 00000000 - 2700000 |
22722-PC9-000 |
US $14.98 |
||
|
9
|
9
27561-PF4-010
Piston
|
27561-PF4-010 |
— | ||
|
10
|
10
27562-PF4-600
Spring a
00000000 - 6278073 |
27562-PF4-600 |
— | ||
|
10
|
10
27562-PF4-601
Spring a
6278074 - |
27562-PF4-601 |
— | ||
|
11
|
11
27563-PF4-010
Cover
|
27563-PF4-010 |
— | ||
|
12
|
12
27564-PF4-600
Spring b
6278074 - |
27564-PF4-600 |
— | ||
|
12
|
12
27564-PF4-000
Spring b
00000000 - 6278073 |
27564-PF4-000 |
— | ||
|
13
|
13
90024-PF4-020
Bolt
|
90024-PF4-020 |
— | ||
|
14
|
14
90024-612-000 BoltSEALING, 8MM |
90024-612-000 |
from US $1.78 |
||
|
15
|
15
90471-580-000 Packing8MM |
90471-580-000 |
from US $1.92 |
||
|
16
|
16
90507-PA9-000 Collar8X11 |
90507-PA9-000 |
US $1.54 |
||
|
17
|
17
90601-PC9-860 CirclipINTERNAL, 38MM |
90601-PC9-860 |
US $2.24 |
||
|
18
|
18
90703-PA9-003 Roller2X19.8 |
90703-PA9-003 |
US $1.26 |
||
|
19
|
19
91301-PC9-004 O-ring7.7X2.3 (NOK) |
91301-PC9-004 |
US $3.01 |
||
| replacement | |||||
|
19
|
19
91301-PC9-003 O-ring7.7X2.3 (ARAI) |
91301-PC9-003 |
from US $2 |
||
|
19
|
19
91301-PC9-003 O-ring7.7X2.3 (ARAI) |
91301-PC9-003 |
from US $2 |
||
|
20
|
20
91302-PF4-000
O-ring
|
91302-PF4-000 |
— | ||
|
21
|
21
91305-PC9-003 O-ring34X1.9 (ARAI) |
91305-PC9-003 |
from US $2.74 |
||
|
21
|
21
91305-PC9-004
O-ring
|
91305-PC9-004 |
— | ||
| replacement | |||||
|
21
|
21
91305-PC9-003 O-ring34X1.9 (ARAI) |
91305-PC9-003 |
from US $2.74 |
||
|
22
|
22
91308-PA9-004 O-ring19.8X1.9 (NOK) |
91308-PA9-004 |
US $4.15 |
||
| replacement | |||||
|
22
|
22
91308-PA9-003 O-ring19.8X1.9 (ARAI) |
91308-PA9-003 |
from US $2.15 |
||
|
22
|
22
91308-PA9-003 O-ring19.8X1.9 (ARAI) |
91308-PA9-003 |
from US $2.15 |
||
|
23
|
23
91311-PA9-004 O-ring7.7X1.9 (NOK) |
91311-PA9-004 |
from US $1.78 |
||
|
23
|
23
91311-PA9-003 O-ring7.7X1.9 (ARAI) |
91311-PA9-003 |
US $3.32 |
||
| replacement | |||||
|
23
|
23
91311-PA9-004 O-ring7.7X1.9 (NOK) |
91311-PA9-004 |
from US $1.78 |
||
|
24
|
24
91314-PC9-004 O-ring8.5X1.9 (NOK) |
91314-PC9-004 |
from US $1.48 |
||
|
24
|
24
91314-PC9-003 O-ring8.5X1.9 (ARAI) |
91314-PC9-003 |
from US $1.63 |
||
| replacement | |||||
|
24
|
24
91314-PC9-004 O-ring8.5X1.9 (NOK) |
91314-PC9-004 |
from US $1.48 |
||
|
25
|
25
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
26
|
26
94520-26000 CirclipINTERNAL, 26MM |
94520-26000 |
from US $0.81 |
||
|
27
|
27
95700-060-350-8 BoltFLANGE, 6X35 |
95700-060-350-8 |
from US $0.59 |
||
| replacement | |||||
|
27
|
27
95701-060-350-8 BoltFLANGE, 6X35 |
95701-060-350-8 |
from US $0.59 |
||
|
28
|
28
95700-060-450-8 BoltFLANGE, 6X45 |
95700-060-450-8 |
US $2.31 |
||
| replacement | |||||
|
28
|
28
95701-060-450-8 BoltFLANGE, 6X45 |
95701-060-450-8 |
from US $0.74 |
||
|
29
|
29
95700-060-550-8 BoltFLANGE, 6X55 |
95700-060-550-8 |
from US $0.74 |
||
| replacement | |||||
|
29
|
29
95701-060-550-8 BoltFLANGE, 6X55 |
95701-060-550-8 |
from US $0.81 |
||
|
30
|
30
96211-07000 BallSTEEL, #7 (7/32) |
96211-07000 |
from US $0.15 |
||
