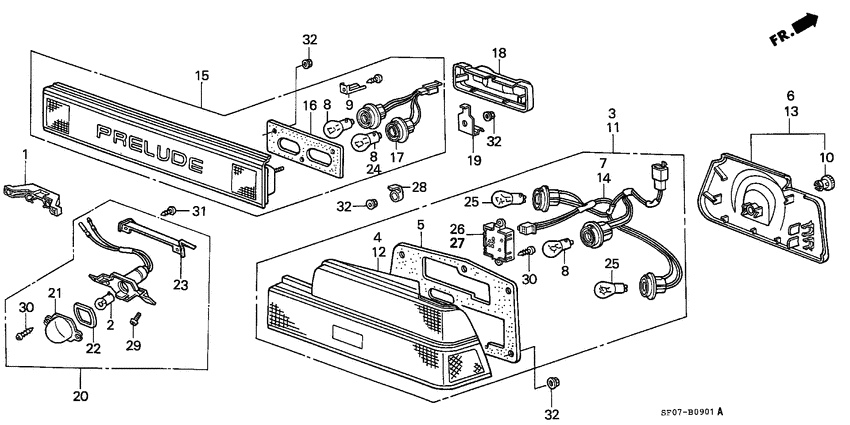

Taillight/back light (PGM-FI) Diagram Honda PRELUDE
- Year
- 1986
- Model code
- PRELUDE
- Sales region
- General
- Engine
- A20A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0SI
- power steering
- +
- area code
- KY
- auto cruise
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32813-SF0-010
Clip
|
32813-SF0-010 |
— | ||
|
2
|
2
34909-505-003 Bulb12V8W |
34909-505-003 |
US $37.40 |
||
| replacement | |||||
|
2
|
2
34904-634-611 BULB (12V 5W) (ECE)(12V, 5W) ECE |
34904-634-611 |
from US $1.41 |
||
|
3
|
3
33500-SF0-601
Taillight assy.
|
33500-SF0-601 |
— | ||
|
4
|
4
33501-SF0-601
R. TAILLIGHT
|
33501-SF0-601 |
— | ||
|
5
|
5
33502-SF0-003
Packing
|
33502-SF0-003 |
— | ||
|
6
|
6
33502-SF0-671
Cover assy.
|
33502-SF0-671 |
— | ||
|
7
|
7
33503-SF0-003
Cord comp
|
33503-SF0-003 |
— | ||
|
8
|
8
33503-506-600 Bulb12V 21W) (STANLEY |
33503-506-600 |
US $9.37 |
||
| replacements | |||||
|
8
|
8
34905-KV7-671 Bulb,winker (12v |
34905-KV7-671 |
from US $3.32 |
||
|
8
|
8
34908-634-611 Bulb12V 21W) (ECE) (STANLEY |
34908-634-611 |
from US $2.66 |
||
|
9
|
9
33507-SF0-003
Stay
|
33507-SF0-003 |
— | ||
|
10
|
10
33509-692-003ZJ NutSPECIAL *NH22L* |
33509-692-003ZJ |
US $2.80 |
||
|
11
|
11
33550-SF0-601
Taillight assy.
|
33550-SF0-601 |
— | ||
|
12
|
12
33551-SF0-601
Lens & housing comp.
|
33551-SF0-601 |
— | ||
|
13
|
13
33552-SF0-671
Cover assy.
|
33552-SF0-671 |
— | ||
|
14
|
14
33553-SF0-003
Cord comp
|
33553-SF0-003 |
— | ||
|
15
|
15
33700-SF0-671
Garnish
|
33700-SF0-671 |
— | ||
|
16
|
16
33702-SF0-671
Packing
|
33702-SF0-671 |
— | ||
|
17
|
17
33703-SF0-671
Cord comp
|
33703-SF0-671 |
— | ||
|
18
|
18
33705-SF0-000
Cover
|
33705-SF0-000 |
— | ||
|
19
|
19
33706-SB0-000
Spring
|
33706-SB0-000 |
— | ||
|
20
|
20
34100-SF0-671
Light assy
|
34100-SF0-671 |
— | ||
|
21
|
21
34101-SF0-003
Lens
|
34101-SF0-003 |
— | ||
|
22
|
22
34102-SF0-003
Packing
|
34102-SF0-003 |
— | ||
|
23
|
23
34104-SF0-671
Stay
|
34104-SF0-671 |
— | ||
|
24
|
24
34903-634-671 Bulb12V27W |
34903-634-671 |
US $2.17 |
||
|
25
|
25
34906-594-622 Bulb12V 21/5W |
34906-594-622 |
US $3.08 |
||
|
26
|
26
37540-SE0-Q01
Sensor
|
37540-SE0-Q01 |
— | ||
|
27
|
27
37540-SE3-A01
Sensor
|
37540-SE3-A01 |
— | ||
|
28
|
28
90607-SB0-000
Clip
|
90607-SB0-000 |
— | ||
|
29
|
29
93500-040-081-H ScrewPAN, 4X8 |
93500-040-081-H |
from US $0.37 |
||
| replacement | |||||
|
29
|
29
93500-040-080-H ScrewPAN, 4X8 |
93500-040-080-H |
from US $0.37 |
||
|
30
|
30
93901-24320 ScrewTAPPING, 4X12 |
93901-24320 |
from US $0.37 |
||
|
31
|
31
93901-24420 ScrewTAPPING, 4X16 |
93901-24420 |
from US $0.37 |
||
|
32
|
32
94071-05080 Nut-washer5MM |
94071-05080 |
from US $0.47 |
||
