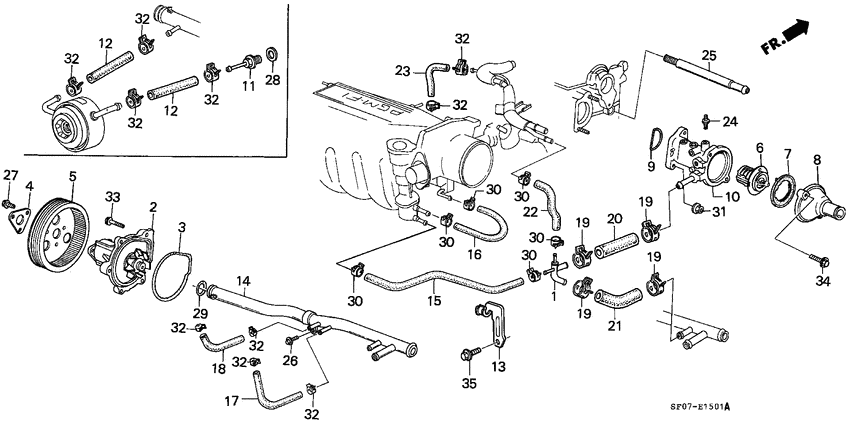

Water pump/thermostat (PGM-FI; Y) Diagram Honda PRELUDE
- Year
- 1986
- Model code
- PRELUDE
- Sales region
- General
- Engine
- A20A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0SI
- power steering
- +
- area code
- KY
- auto cruise
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17373-PJ0-660
Joint
|
17373-PJ0-660 |
— | ||
|
2
|
2
19200-PH1-000 Pump compWATER |
19200-PH1-000 |
US $152.32 |
||
|
3
|
3
19222-PC6-000 GasketWATER PUMP |
19222-PC6-000 |
US $3.78 |
||
|
4
|
4
19223-PH1-000
Plate
|
19223-PH1-000 |
— | ||
|
5
|
5
19224-PH1-000
Pulley
|
19224-PH1-000 |
— | ||
|
6
|
6
19300-PB2-003
Thermostat unit
|
19300-PB2-003 |
— | ||
| replacement | |||||
|
6
|
6
19300-PB2-023
Thermostat unit
|
19300-PB2-023 |
— | ||
|
6
|
6
19300-PB2-811
Thermostat unit
|
19300-PB2-811 |
— | ||
|
6
|
6
19300-PB2-024 Thermostat unit82) (FUJI SEIKO |
19300-PB2-024 |
US $32.01 |
||
|
6
|
6
19300-PB2-815
Thermostat unit
|
19300-PB2-815 |
— | ||
|
7
|
7
19305-PC6-000
Rubber
|
19305-PC6-000 |
— | ||
|
8
|
8
19311-PC6-000
Cover
|
19311-PC6-000 |
— | ||
|
9
|
9
19313-PC6-000
Gasket
|
19313-PC6-000 |
— | ||
|
10
|
10
19320-PJ0-620
Case comp.
|
19320-PJ0-620 |
— | ||
|
11
|
11
19400-PE7-731
Joint
|
19400-PE7-731 |
— | ||
|
12
|
12
19421-PJ0-660 Hose aOIL COOLER |
19421-PJ0-660 |
US $9.10 |
||
|
13
|
13
19503-PJ5-000
Clamp
|
19503-PJ5-000 |
— | ||
|
14
|
14
19505-PJ0-620
Pipe
|
19505-PJ0-620 |
— | ||
|
15
|
15
19507-PJ0-660
Hose a
|
19507-PJ0-660 |
— | ||
|
16
|
16
19508-PH3-000
Hose b
|
19508-PH3-000 |
— | ||
|
17
|
17
19510-PH3-000
Hose
|
19510-PH3-000 |
— | ||
|
18
|
18
19511-PH3-000
Hose
|
19511-PH3-000 |
— | ||
|
19
|
19
19512-PC6-003 ClipHOSE, 18.7MM |
19512-PC6-003 |
from US $3.18 |
||
|
20
|
20
19512-PJ0-660 HoseBYPASS IN. |
19512-PJ0-660 |
US $9.24 |
||
|
21
|
21
19513-PJ0-660
Hose a
|
19513-PJ0-660 |
— | ||
|
22
|
22
19514-PJ0-660
Hose a
|
19514-PJ0-660 |
— | ||
|
23
|
23
19515-PJ0-660
Hose b
|
19515-PJ0-660 |
— | ||
|
24
|
24
19516-PC1-000 BoltBREATHING WATER |
19516-PC1-000 |
from US $5.62 |
||
|
25
|
25
19517-PH1-000
Joint
|
19517-PH1-000 |
— | ||
|
26
|
26
90004-PA0-000 BoltHEX., 6X14 |
90004-PA0-000 |
US $2.80 |
||
|
27
|
27
90011-PC6-000 BoltFLANGE, 7X9.5 |
90011-PC6-000 |
from US $2.03 |
||
|
28
|
28
90443-283-000
Washer
|
90443-283-000 |
— | ||
|
29
|
29
91314-634-000 O-ring |
91314-634-000 |
from US $2.86 |
||
|
30
|
30
91405-PD1-004 ClampTUBE(D12) |
91405-PD1-004 |
from US $3.92 |
||
|
31
|
31
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
32
|
32
95002-412-500-4 ClampTUBE (D12.5) |
95002-412-500-4 |
from US $0.74 |
||
|
33
|
33
95700-060-250-8 BoltFLANGE, 6X25 |
95700-060-250-8 |
US $27.50 |
||
| replacement | |||||
|
33
|
33
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
34
|
34
95700-060-250-8 BoltFLANGE, 6X25 00000000 - 2700000 |
95700-060-250-8 |
US $27.50 |
||
| replacement | |||||
|
34
|
34
95701-060-250-8 BoltFLANGE, 6X25 00000000 - 2700000 |
95701-060-250-8 |
from US $0.59 |
||
|
35
|
35
95900-060-100-8 BoltFLANGE, 6X10 |
95900-060-100-8 |
from US $0.52 |
||
| replacement | |||||
|
35
|
35
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
