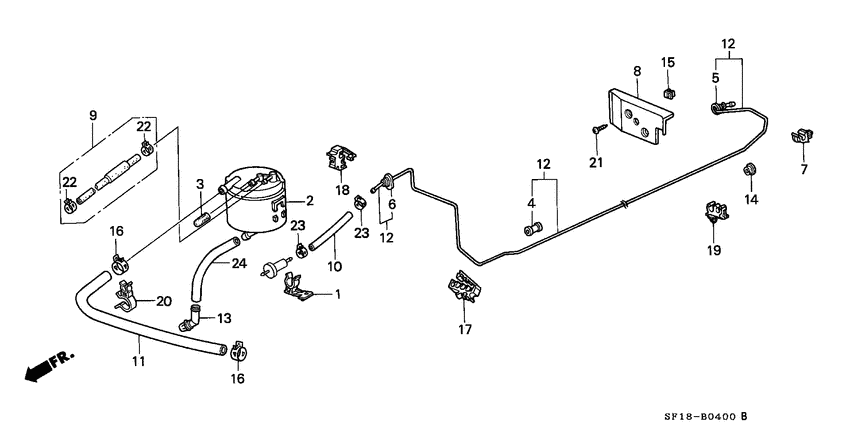

Fuel pipe (1) Diagram Honda PRELUDE
- Year
- 1988
- Model code
- PRELUDE
- Sales region
- General
- Engine
- B20A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0EX
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16234-PK1-000
Clamp
00000000 - 0C004064 |
16234-PK1-000 |
— | ||
|
1
|
1
16234-PK1-020 ClampFUEL FILTER (B) 0C004065 - |
16234-PK1-020 |
US $3.43 |
||
|
2
|
2
17300-SF1-911
Canister assy
|
17300-SF1-911 |
— | ||
|
3
|
3
17310-SF1-G00
Cap
|
17310-SF1-G00 |
— | ||
|
8
|
8
17719-SF1-010 Protector bFUEL PIPE |
17719-SF1-010 |
US $16.77 |
||
|
10
|
10
16233-PK1-000
Hose assy
0C004065 - |
16233-PK1-000 |
— | ||
|
10
|
10
17730-SF1-J00
Hose assy
00000000 - 0C003171 |
17730-SF1-J00 |
— | ||
|
10
|
10
95001-751-202-0
Hose
0C003172 - 0C004064 |
95001-751-202-0 |
— | ||
|
11
|
11
17736-SF1-010 HoseCANISTER VENT |
17736-SF1-010 |
US $48.64 |
||
|
12
|
12
17740-SF1-930 Pipe compFUEL RETURN |
17740-SF1-930 |
US $51.07 |
||
|
13
|
13
17742-SB2-651
Joint
00000000 - 0C004123 |
17742-SB2-651 |
— | ||
|
13
|
13
17742-SF1-003
Joint
0C004124 - |
17742-SF1-003 |
— | ||
|
14
|
14
46380-SB0-000 Grommet aBRAKE PIPE (BLACK) |
46380-SB0-000 |
US $3.18 |
||
|
15
|
15
90676-SA7-003 GrommetSCREW, 5MM (BLACK) |
90676-SA7-003 |
US $1.54 |
||
|
16
|
16
90682-SB0-671 ClampCANISTER HOSE |
90682-SB0-671 |
from US $3.70 |
||
|
17
|
17
91592-SF1-003
Clip
|
91592-SF1-003 |
— | ||
|
18
|
18
91593-SF1-003
Clip
|
91593-SF1-003 |
— | ||
|
19
|
19
91594-SF1-A01
Clamp
|
91594-SF1-A01 |
— | ||
|
21
|
21
93904-25220 ScrewTAPPING, 5X12 |
93904-25220 |
from US $0.37 |
||
|
23
|
23
95002-412-500-4 ClampTUBE (D12.5) |
95002-412-500-4 |
from US $0.74 |
||
|
24
|
24
95003-400-246-0 TubeVINYL, 12X16X240 (95003-40001-60M) |
95003-400-246-0 |
US $2.66 |
