Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 43352-567-000 Screw BLEEDER	43352-567-000	US $3.26
2	2 43353-548-003 Cap BLEEDER SCREW	43353-548-003	from US $2.25
4	4 46151-SF1-003 Yoke 0C008758 -	46151-SF1-003	—
4	4 46151-SB2-003 Yoke PUSH ROD (NISSIN) 00000000 - 0C008757	46151-SB2-003	US $18.92
5	5 46164-632-000 Float	46164-632-000	US $11.07
7	7 46182-500-013 Circlip	46182-500-013	from US $2.07
8	8 46184-611-000 Dust seal MASTER CYLINDER	46184-611-000	from US $5.77
9	9 46472-568-000 Packing OIL BOLT	46472-568-000	from US $3.33
10	10 46512-SB2-000 Pin PEDAL	46512-SB2-000	US $4.22
11	11 46920-SF1-A02 Cylinder assy. CLUTCH MASTER 00000000 - 0C008757	46920-SF1-A02	US $129.28
11	11 46920-SF1-A04 Cylinder assy. CLUTCH MASTER 0C024881 -	46920-SF1-A04	US $129.28
11	11 46920-SF1-A03 Cylinder assy. 0C008758 - 0C024880	46920-SF1-A03	—
14	14 46926-SF1-003 Piston assy.	46926-SF1-003	US $37.55
15	15 46928-SD4-000 Seal	46928-SD4-000	—
17	17 46929-SF1-000 Packing	46929-SF1-000	—
18	18 46930-SF1-003 Cylinder assy.	46930-SF1-003	—
19	19 46932-SD4-003 Piston SLAVE CYLINDER	46932-SD4-003	US $17.05
20	20 46933-SD4-003 Cup a PISTON	46933-SD4-003	US $2.52
21	21 46934-SD4-003 Cup b PISTON	46934-SD4-003	US $5.21
22	22 46935-SD4-003 Spring	46935-SD4-003	—
23	23 46937-SD4-003 Boot	46937-SD4-003	—
24	24 46938-SD4-003 Rod PUSH	46938-SD4-003	US $13.02
25	25 46940-SF1-A00 Bracket	46940-SF1-A00	—
26	26 46950-SF1-A01 Rod comp PUSH 00000000 - 0C008757	46950-SF1-A01	US $13.31
26	26 46950-SF1-A02 Rod comp 0C008758 -	46950-SF1-A02	—
28	28 46952-SD4-003 Joint TUBE	46952-SD4-003	US $4.34
29	29 46953-SD4-003 Packing	46953-SD4-003	US $2.03
30	30 46960-SF1-A03 Hose assy 0C001978 -	46960-SF1-A03	—
30	30 46960-SF1-A02 Hose assy 00000000 - 0C001977	46960-SF1-A02	—
31	31 46963-SD4-300 Bolt CLUTCH OIL	46963-SD4-300	US $4.76
32	32 46964-SF1-A02 Clamp	46964-SF1-A02	—
33	33 46966-SF1-A00 Holder	46966-SF1-A00	—
34	34 46968-SF1-003 Clamp HOSE & HARNESS	46968-SF1-003	US $2.87
35	35 46970-SF1-A01 Pipe comp	46970-SF1-A01	—
37	37 46971-SF1-A00 Tube	46971-SF1-A00	—
38	38 46972-SD4-003 Tank	46972-SD4-003	—
40	40 46973-SD4-003 Cap comp. RESERVE TANK	46973-SD4-003	US $18.22
41	41 46975-SD4-003 Seal RESERVE TANK	46975-SD4-003	US $2.73
42	42 46977-SF1-A00 Clip CLUTCH PIPE	46977-SF1-A00	US $1.54
44	44 46993-SF1-A01 Damper assy. CLUTCH	46993-SF1-A01	US $79.36
47	47 93402-060-120-8 Bolt-washer 6X12	93402-060-120-8	from US $0.52
48	48 93413-060-120-8 Bolt-washer 6X12	93413-060-120-8	US $0.59
49	49 93483-060-120-8 Bolt-washer 6X12	93483-060-120-8	US $0.59
50	50 93483-080-120-8 Bolt-washer 8X12	93483-080-120-8	US $0.74
51	51 93483-080-250-8 Bolt-washer 8X25	93483-080-250-8	US $0.81
52	52 94002-080-800-S Nut HEX., 8MM 0C008758 -	94002-080-800-S	from US $0.49
	replacement
52	52 94002-080-000-S Nut HEX., 8MM 0C008758 -	94002-080-000-S	from US $0.44
52	52 94050-08080 NUT, FLANGE, 8MM 00000000 - 0C008757	94050-08080	from US $0.52
53	53 94070-08080 Nut-washer 8MM 00000000 - 0C012857	94070-08080	from US $0.52
53	53 94050-08080 NUT, FLANGE, 8MM 0C012858 -	94050-08080	from US $0.52
54	54 94201-20200 Pin SPLIT, 2.0X20	94201-20200	US $0.37
	replacements
54	54 94201-29220 Pin	94201-29220	—
54	54 9420120350 Pin, cotter (2.0x35)	9420120350	from US $0.44
54	54 94201-20220 Pin 2.0X22 SPLIT, 2.0X22	94201-20220	US $0.44
55	55 95002-01130 Clip TUBE(A13)	95002-01130	from US $1.40

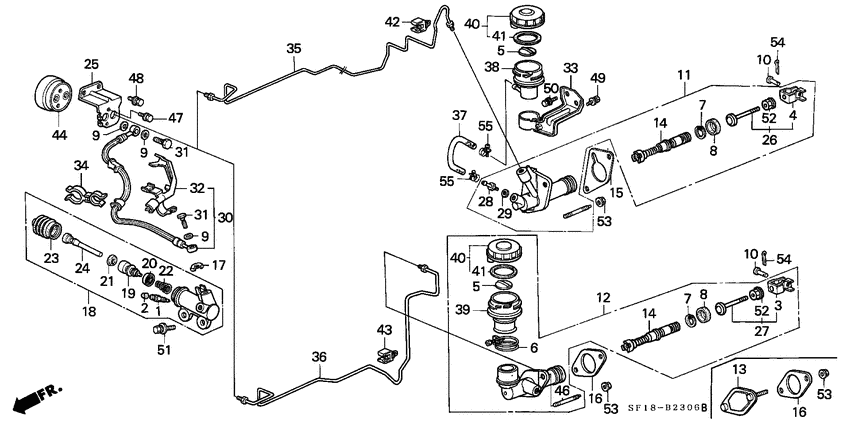

Clutch master cylinder Diagram Honda PRELUDE General 7071585-550021

Clutch master cylinder Diagram Honda PRELUDE General 7071585-550021
