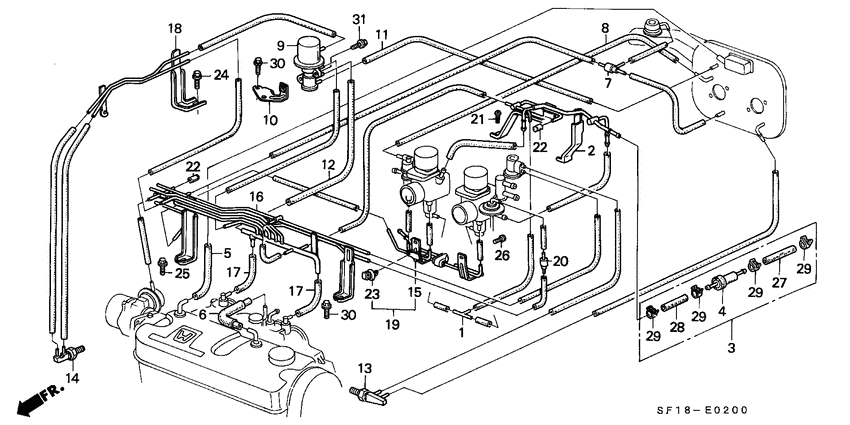

Install pipe/tubing (1) Diagram Honda PRELUDE
- Year
- 1988
- Model code
- PRELUDE
- Sales region
- General
- Engine
- B20A
- transmission
- 5MT
- Number of doors
- 2
- grade
- 2.0EX
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16137-657-670
Joint
|
16137-657-670 |
— | ||
|
2
|
2
16150-PK1-760
Pipe
|
16150-PK1-760 |
— | ||
|
3
|
3
16233-PK1-660 Hose assyFUEL |
16233-PK1-660 |
US $11.48 |
||
|
4
|
4
16235-PC6-013
Filter b
|
16235-PC6-013 |
— | ||
|
5
|
5
17135-PK1-000
Tube comp
|
17135-PK1-000 |
— | ||
|
6
|
6
17138-PK1-000
Tube comp
|
17138-PK1-000 |
— | ||
|
7
|
7
17150-PA6-004
Valve
|
17150-PA6-004 |
— | ||
|
8
|
8
17229-PK1-010
Tube
|
17229-PK1-010 |
— | ||
|
9
|
9
17340-PD2-661
Valve
|
17340-PD2-661 |
— | ||
|
10
|
10
17341-PK1-750
Stay
|
17341-PK1-750 |
— | ||
|
11
|
11
17346-PK1-750
Tube a
|
17346-PK1-750 |
— | ||
|
12
|
12
17347-PK1-750
Tube b
|
17347-PK1-750 |
— | ||
|
13
|
13
17360-PA0-661
Thermovalve
|
17360-PA0-661 |
— | ||
|
14
|
14
17360-PK1-641
Thermovalve
|
17360-PK1-641 |
— | ||
|
15
|
15
17410-PK1-750
Pipe b
|
17410-PK1-750 |
— | ||
|
16
|
16
17413-PK1-750
Pipe
|
17413-PK1-750 |
— | ||
|
17
|
17
17414-PK1-750
Tube
|
17414-PK1-750 |
— | ||
|
18
|
18
17420-PK1-640 Pipe cINSTALL |
17420-PK1-640 |
US $22.14 |
||
|
19
|
19
17440-PK1-Y00
Pipe b assy.
1001803 - |
17440-PK1-Y00 |
— | ||
|
21
|
21
90092-657-000 Screw-washer5X8 |
90092-657-000 |
from US $1.32 |
||
|
22
|
22
90634-PA0-000 CapSEALING |
90634-PA0-000 |
from US $2.37 |
||
|
23
|
23
91567-SH3-003
Clip
1001803 - |
91567-SH3-003 |
— | ||
|
24
|
24
93401-060-120-8 Bolt-washer6X12 |
93401-060-120-8 |
from US $0.52 |
||
|
25
|
25
93401-060-160-8 Bolt-washer6X16 |
93401-060-160-8 |
from US $0.58 |
||
|
26
|
26
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
|
27
|
27
95001-750-902-0 HoseFUEL, 7.3X90 (95001-75001-50M) |
95001-750-902-0 |
US $2.81 |
||
|
28
|
28
95001-751-702-0 HoseFUEL, 7.3X170 (95001-75001-50M) |
95001-751-702-0 |
US $5.03 |
||
|
29
|
29
95002-412-500-4 ClampTUBE (D12.5) |
95002-412-500-4 |
from US $0.74 |
||
|
30
|
30
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
31
|
31
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
