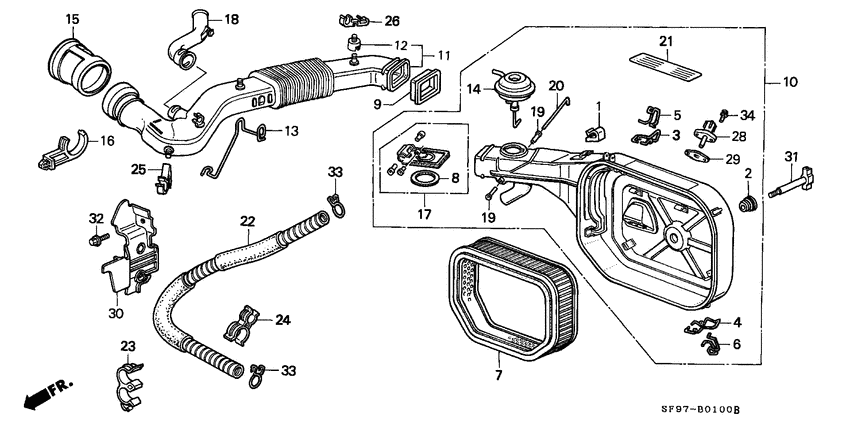

Air cleaner (1) Diagram Honda PRELUDE
- Year
- 1991
- Model code
- PRELUDE
- Sales region
- General
- Engine
- B20A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0EX
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
17214-PC6-000
Washer
|
17214-PC6-000 |
— | ||
|
3
|
3
17216-PK1-010
Clip A
|
17216-PK1-010 |
— | ||
|
4
|
4
17216-671-000
Clip A
|
17216-671-000 |
— | ||
|
5
|
5
17217-PK1-000
Clip b
|
17217-PK1-000 |
— | ||
|
6
|
6
17217-657-000
Clip b
|
17217-657-000 |
— | ||
|
7
|
7
17220-PK1-661 Element compAIR CLEANER |
17220-PK1-661 |
US $37.76 |
||
|
8
|
8
17222-PC6-300
Seal
|
17222-PC6-300 |
— | ||
|
10
|
10
17240-PK1-B00
Case assy.
|
17240-PK1-B00 |
— | ||
|
11
|
11
17242-PK1-902
Tube comp
|
17242-PK1-902 |
— | ||
|
12
|
12
17243-PK1-000
Clamp
|
17243-PK1-000 |
— | ||
|
13
|
13
17244-PK1-010
Stay
|
17244-PK1-010 |
— | ||
|
14
|
14
17245-PH1-003
Diaphragm
|
17245-PH1-003 |
— | ||
|
15
|
15
17245-PK1-660
Tube
|
17245-PK1-660 |
— | ||
|
16
|
16
17245-PK2-A01
Clamp
|
17245-PK2-A01 |
— | ||
|
17
|
17
17251-PK1-000
Valve comp.
|
17251-PK1-000 |
— | ||
|
18
|
18
17252-PK1-000
Tube
|
17252-PK1-000 |
— | ||
|
19
|
19
17253-PC6-300
Plug
|
17253-PC6-300 |
— | ||
|
20
|
20
17257-689-310
Pin
|
17257-689-310 |
— | ||
|
21
|
21
17273-PK1-751
Plate
|
17273-PK1-751 |
— | ||
|
22
|
22
17302-PK1-003
Pipe
|
17302-PK1-003 |
— | ||
|
23
|
23
17304-PK1-023
Clamp
|
17304-PK1-023 |
— | ||
|
24
|
24
17305-PK1-013
Clamp b
|
17305-PK1-013 |
— | ||
|
25
|
25
17347-PK2-013
Clamp
|
17347-PK2-013 |
— | ||
|
26
|
26
17436-PC6-003
Clamp b
|
17436-PC6-003 |
— | ||
|
30
|
30
74113-SF1-J01
Shelter
|
74113-SF1-J01 |
— | ||
|
31
|
31
90010-PC6-000
Bolt
|
90010-PC6-000 |
— | ||
|
32
|
32
90149-SA0-003 BoltBUMPER |
90149-SA0-003 |
US $2 |
||
|
33
|
33
90653-689-000
Circlip
|
90653-689-000 |
— |
