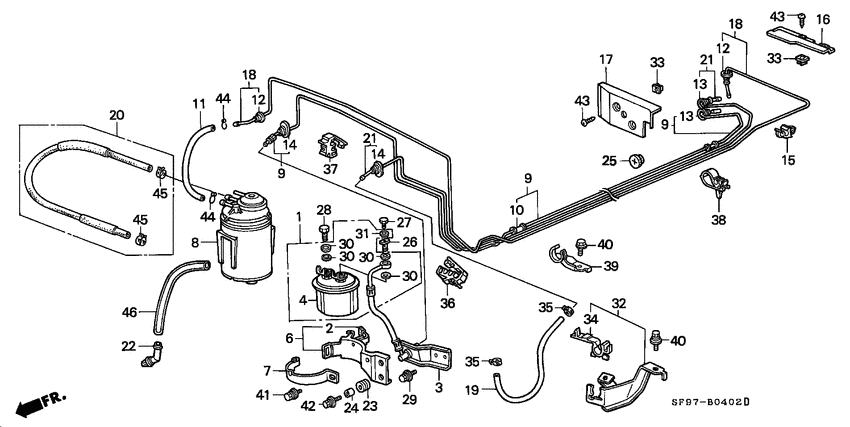

Fuel pipe (3) Diagram Honda PRELUDE
- Year
- 1991
- Model code
- PRELUDE
- Sales region
- General
- Engine
- B20A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0I-16 4WS
- area code
- KE
- right-hand drive
- +
- auto cruise
- +
- 4ws
- +
- front fog light
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
16712-SD7-930
Cushion
|
16712-SD7-930 |
— | ||
|
3
|
3
16721-SF1-E31
Hose
|
16721-SF1-E31 |
— | ||
|
4
|
4
16900-SF1-E02
Strainer comp.
|
16900-SF1-E02 |
— | ||
|
6
|
6
16918-SF1-931
Stay
|
16918-SF1-931 |
— | ||
|
7
|
7
16919-SF1-931
Band
|
16919-SF1-931 |
— | ||
|
9
|
9
17700-SF1-933
Pipe comp
|
17700-SF1-933 |
— | ||
|
10
|
10
17701-SA7-930 RubberFUEL PIPE INSULATOR |
17701-SA7-930 |
from US $2.66 |
||
|
13
|
13
17710-SE0-931
Grommet
|
17710-SE0-931 |
— | ||
|
14
|
14
17710-SF1-930
Grommet
|
17710-SF1-930 |
— | ||
|
15
|
15
17713-SE0-003 ClampFUEL PIPE |
17713-SE0-003 |
US $2.03 |
||
|
17
|
17
17719-SF1-020
Protector b
|
17719-SF1-020 |
— | ||
|
19
|
19
17723-SF1-933
Hose
|
17723-SF1-933 |
— | ||
|
21
|
21
17740-SF1-931
Pipe comp
|
17740-SF1-931 |
— | ||
|
23
|
23
38608-692-000 RubberMOUNTING |
38608-692-000 |
US $3.29 |
||
|
24
|
24
38609-692-000 CollarDISTANCE |
38609-692-000 |
from US $2.66 |
||
|
25
|
25
46380-SB0-000 Grommet aBRAKE PIPE (BLACK) |
46380-SB0-000 |
US $3.18 |
||
|
26
|
26
90008-PD6-010
Bolt
|
90008-PD6-010 |
— | ||
| replacement | |||||
|
26
|
26
90008-PP4-E02 BoltBANJO, 12MM |
90008-PP4-E02 |
from US $6.51 |
||
|
27
|
27
90009-PE2-010
Bolt
|
90009-PE2-010 |
— | ||
| replacement | |||||
|
27
|
27
90009-RMX-010 Bolt,sealing 6mm |
90009-RMX-010 |
from US $2.73 |
||
|
28
|
28
90020-PD6-000 BoltSEALING, 12MM |
90020-PD6-000 |
from US $7.99 |
||
|
29
|
29
90164-SD4-000 Bolt-washer6X16 |
90164-SD4-000 |
US $1.96 |
||
|
30
|
30
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2.59 |
||
|
31
|
31
90430-PD6-003 WasherSEALING, 6MM |
90430-PD6-003 |
from US $1.48 |
||
|
32
|
32
90669-SF1-040
Clamp
|
90669-SF1-040 |
— | ||
|
33
|
33
90676-SA7-003 GrommetSCREW, 5MM (BLACK) |
90676-SA7-003 |
US $1.54 |
||
|
34
|
34
90684-SF1-932
Clip
|
90684-SF1-932 |
— | ||
|
35
|
35
91406-SA7-931
Clamp
|
91406-SA7-931 |
— | ||
| replacement | |||||
|
35
|
35
91406-SL0-931 ClampFUEL HOSE, 15.5MM |
91406-SL0-931 |
from US $4 |
||
|
36
|
36
91592-SF1-003
Clip
|
91592-SF1-003 |
— | ||
|
37
|
37
91593-SF1-003
Clip
|
91593-SF1-003 |
— | ||
|
38
|
38
91594-SF1-003
Clamp
|
91594-SF1-003 |
— | ||
|
40
|
40
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.47 |
||
|
41
|
41
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
42
|
42
93405-060-250-8 Bolt-washer6X25 |
93405-060-250-8 |
US $0.74 |
||
|
43
|
43
93904-25220 ScrewTAPPING, 5X12 |
93904-25220 |
from US $0.37 |
||
