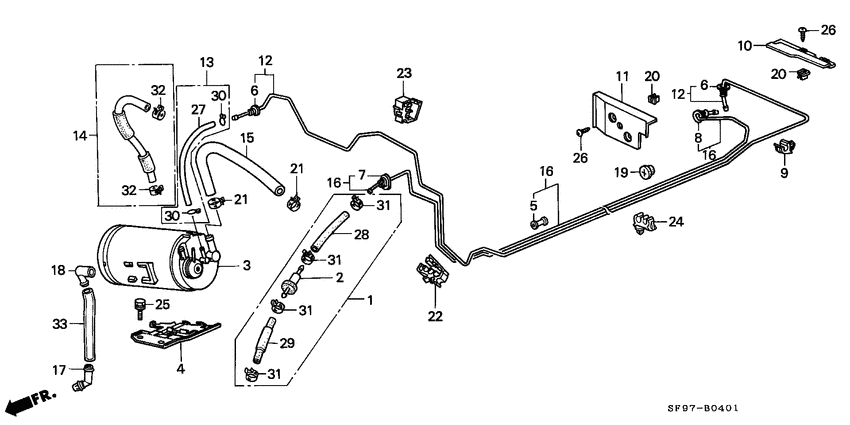

Fuel pipe (2) Diagram Honda PRELUDE
- Year
- 1991
- Model code
- PRELUDE
- Sales region
- General
- Engine
- B20A
- transmission
- 5MT
- Number of doors
- 2
- grade
- 2.0EX
- abs
- +
- area code
- KG
- left-hand drive
- +
- catalyst
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16233-PK1-760 Hose assyFUEL |
16233-PK1-760 |
US $41.98 |
||
|
2
|
2
16235-PC6-013
Filter b
|
16235-PC6-013 |
— | ||
|
3
|
3
17300-SF1-A01
Canister assy
|
17300-SF1-A01 |
— | ||
|
4
|
4
17358-SF1-A01
Bracket
|
17358-SF1-A01 |
— | ||
|
5
|
5
17701-SA7-930 RubberFUEL PIPE INSULATOR |
17701-SA7-930 |
from US $2.66 |
||
|
6
|
6
17710-SA0-000
Grommet
|
17710-SA0-000 |
— | ||
|
7
|
7
17710-SE0-931
Grommet
|
17710-SE0-931 |
— | ||
|
8
|
8
17710-SF1-930
Grommet
|
17710-SF1-930 |
— | ||
|
9
|
9
17713-SE0-003 ClampFUEL PIPE |
17713-SE0-003 |
US $2.03 |
||
|
10
|
10
17715-SF1-000
Protector
|
17715-SF1-000 |
— | ||
|
11
|
11
17719-SF1-020
Protector b
|
17719-SF1-020 |
— | ||
|
12
|
12
17720-SF1-A33
Pipe comp. a
|
17720-SF1-A33 |
— | ||
|
13
|
13
17727-SF1-A00
Tube assy
|
17727-SF1-A00 |
— | ||
|
14
|
14
17730-SF1-A10
Hose assy
|
17730-SF1-A10 |
— | ||
|
15
|
15
17736-SF1-020
Hose
|
17736-SF1-020 |
— | ||
|
16
|
16
17740-SF1-A31
Pipe comp
|
17740-SF1-A31 |
— | ||
|
17
|
17
17742-SF1-A01
Joint
|
17742-SF1-A01 |
— | ||
|
18
|
18
17743-SF1-A01
Joint
|
17743-SF1-A01 |
— | ||
|
19
|
19
46380-SB0-000 Grommet aBRAKE PIPE (BLACK) |
46380-SB0-000 |
US $3.18 |
||
|
20
|
20
90676-SA7-003 GrommetSCREW, 5MM (BLACK) |
90676-SA7-003 |
US $1.54 |
||
|
21
|
21
90682-SB0-671 ClampCANISTER HOSE |
90682-SB0-671 |
from US $3.70 |
||
|
22
|
22
91592-SF1-003
Clip
|
91592-SF1-003 |
— | ||
|
23
|
23
91593-SF1-003
Clip
|
91593-SF1-003 |
— | ||
|
24
|
24
91594-SF1-A01
Clamp
|
91594-SF1-A01 |
— | ||
|
25
|
25
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
26
|
26
93904-25220 ScrewTAPPING, 5X12 |
93904-25220 |
from US $0.37 |
||
|
27
|
27
95001-552-603-0
Tube
|
95001-552-603-0 |
— | ||
|
28
|
28
95001-750-902-0 HoseFUEL, 7.3X90 (95001-75001-50M) |
95001-750-902-0 |
US $2.81 |
||
|
29
|
29
95001-751-702-0 HoseFUEL, 7.3X170 (95001-75001-50M) |
95001-751-702-0 |
US $5.03 |
||
|
30
|
30
95002-02104 ClipTUBE (B10) |
95002-02104 |
US $0.52 |
||
|
31
|
31
95002-412-500-4 ClampTUBE (D12.5) |
95002-412-500-4 |
from US $0.74 |
||
|
32
|
32
95002-412-500-8 ClampTUBE (D12.5) |
95002-412-500-8 |
from US $0.74 |
||
|
33
|
33
95003-400-136-0 TubeVINYL, 12X16X130 (95003-40001-60M) |
95003-400-136-0 |
US $1.48 |
