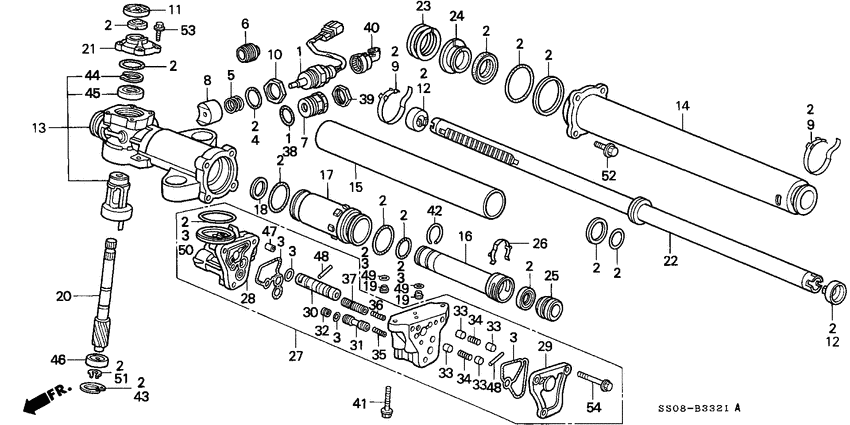

P.s. gear box components (RH) Diagram Honda PRELUDE
- Year
- 1992
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- CX
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
06531-SS0-000
Seal kit a
|
06531-SS0-000 |
— | ||
|
3
|
3
06532-SS0-000
Seal kit b
|
06532-SS0-000 |
— | ||
|
4
|
4
53412-SM4-J62 O-ringRACK GUIDE (ARAI) |
53412-SM4-J62 |
US $2.66 |
||
|
4
|
4
53412-SM4-J61 O-ringRACK GUIDE (NOK) |
53412-SM4-J61 |
US $3.03 |
||
|
5
|
5
53413-SD4-951
Spring
|
53413-SD4-951 |
— | ||
|
6
|
6
53414-SM4-J60 ScrewRACK GUIDE |
53414-SM4-J60 |
US $13.76 |
||
|
8
|
8
53416-SM4-J61
Guide
|
53416-SM4-J61 |
— | ||
|
9
|
9
53449-SL0-A00
Band b
|
53449-SL0-A00 |
— | ||
| replacement | |||||
|
9
|
9
53449-S04-J51 Band bBELLOWS |
53449-S04-J51 |
US $6.51 |
||
|
10
|
10
53458-SM4-J60 NutRACK SCREW LOCK |
53458-SM4-J60 |
US $5.45 |
||
|
11
|
11
53501-SF1-950
Cover
|
53501-SF1-950 |
— | ||
|
12
|
12
53536-SS0-000
Washer
|
53536-SS0-000 |
— | ||
|
13
|
13
53608-SS0-950
Housing sub assy.
|
53608-SS0-950 |
— | ||
|
14
|
14
53611-SS0-951
Cylinder comp
|
53611-SS0-951 |
— | ||
|
15
|
15
53612-SS0-950
Barrel
|
53612-SS0-950 |
— | ||
|
16
|
16
53613-SS0-950
Retainer
|
53613-SS0-950 |
— | ||
|
17
|
17
53614-SS0-950
Cap
|
53614-SS0-950 |
— | ||
|
18
|
18
53615-SM4-J60
Washer
|
53615-SM4-J60 |
— | ||
|
19
|
19
53617-SF1-950
Port
|
53617-SF1-950 |
— | ||
|
20
|
20
53622-SS0-951
Pinion
|
53622-SS0-951 |
— | ||
|
21
|
21
53625-SS0-950
Cap
|
53625-SS0-950 |
— | ||
|
22
|
22
53626-SS0-951
Rack comp
|
53626-SS0-951 |
— | ||
|
23
|
23
53630-SP0-000
Spring
|
53630-SP0-000 |
— | ||
|
24
|
24
53631-SS0-951
Bushing a
|
53631-SS0-951 |
— | ||
|
25
|
25
53632-SM4-J61
Bush
|
53632-SM4-J61 |
— | ||
|
26
|
26
53634-SM4-J60
Clip
|
53634-SM4-J60 |
— | ||
|
27
|
27
53640-SS0-950
Body unit
|
53640-SS0-950 |
— | ||
|
28
|
28
53643-SM4-J61
Port comp.
|
53643-SM4-J61 |
— | ||
|
29
|
29
53645-SK7-J50
Cap
|
53645-SK7-J50 |
— | ||
|
30
|
30
53647-SM4-010
Spool
|
53647-SM4-010 |
— | ||
|
31
|
31
53650-SK7-J51
Valve
|
53650-SK7-J51 |
— | ||
|
32
|
32
53658-SS0-950
Orifice
|
53658-SS0-950 |
— | ||
|
33
|
33
53666-SK7-A51
Plunger
|
53666-SK7-A51 |
— | ||
|
34
|
34
53667-SS0-950
Spring
|
53667-SS0-950 |
— | ||
|
35
|
35
53687-SK7-J50
Spring
|
53687-SK7-J50 |
— | ||
|
36
|
36
53688-SP0-000
Spring
|
53688-SP0-000 |
— | ||
|
37
|
37
53790-SK7-J51
Valve
|
53790-SK7-J51 |
— | ||
|
41
|
41
90102-SK7-J50
Bolt
|
90102-SK7-J50 |
— | ||
|
42
|
42
90684-SM4-J60
Ring
|
90684-SM4-J60 |
— | ||
|
43
|
43
90693-SE0-951
Circlip
|
90693-SE0-951 |
— | ||
|
44
|
44
90697-SA5-003
Circlip
|
90697-SA5-003 |
— | ||
|
45
|
45
91052-SL5-A01
Bearing
|
91052-SL5-A01 |
— | ||
|
46
|
46
91053-SM4-951 BearingRADIAL BALL, 6001ZZ |
91053-SM4-951 |
from US $11.25 |
||
|
47
|
47
91103-429-000 Dowel pin8X10 |
91103-429-000 |
from US $2.74 |
||
|
48
|
48
91154-SK7-J51
Roller
|
91154-SK7-J51 |
— | ||
|
49
|
49
91352-SF4-951
O-ring
|
91352-SF4-951 |
— | ||
| replacement | |||||
|
49
|
49
91318-PT0-003 O-ring9.8X1.9 (NOK) |
91318-PT0-003 |
from US $1.63 |
||
|
50
|
50
91362-SE0-952
O-ring
|
91362-SE0-952 |
— | ||
|
50
|
50
91362-SE0-951
O-ring
|
91362-SE0-951 |
— | ||
|
51
|
51
94510-12000 CirclipEXTERNAL, 12MM |
94510-12000 |
from US $0.44 |
||
|
52
|
52
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
||
|
53
|
53
95801-060-180-8 BoltFLANGE, 6X18 |
95801-060-180-8 |
US $1.41 |
||
| replacement | |||||
|
53
|
53
95701-060-180-8 Bolt, FLANGE, 6X18 |
95701-060-180-8 |
from US $0.34 |
||
|
54
|
54
95801-060-650-8 BoltFLANGE, 6X65 |
95801-060-650-8 |
from US $0.81 |
||
