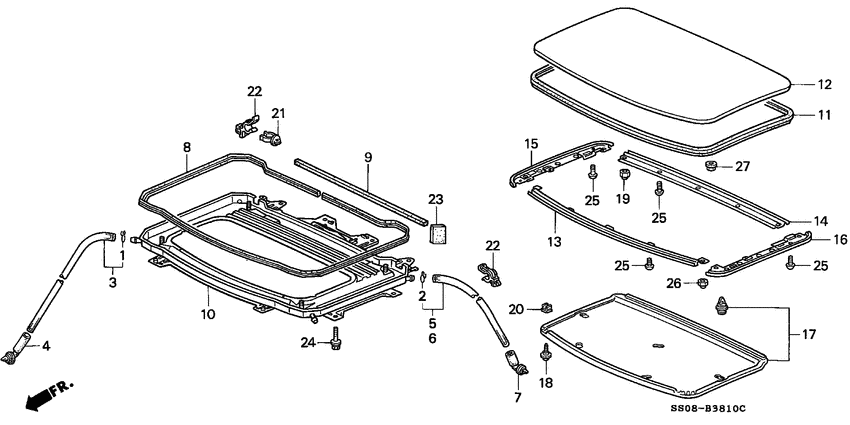

Sliding roof Diagram Honda PRELUDE
- Year
- 1992
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- CX
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15707-634-000 ClipOIL DRAIN TUBE |
15707-634-000 |
from US $2 |
||
|
2
|
2
18534-634-670 ClipAIR HOSE, 16MM |
18534-634-670 |
from US $1.68 |
||
|
3
|
3
70050-SS0-000
Tube
|
70050-SS0-000 |
— | ||
|
4
|
4
70052-SS0-000
Valve
|
70052-SS0-000 |
— | ||
|
5
|
5
70060-SS0-A00
Tube a
|
70060-SS0-A00 |
— | ||
|
6
|
6
70060-SS0-000
Tube
|
70060-SS0-000 |
— | ||
|
7
|
7
70062-SH3-000
Valve
|
70062-SH3-000 |
— | ||
|
8
|
8
70080-SS0-003
Seal
|
70080-SS0-003 |
— | ||
|
9
|
9
70081-SS0-003
Sub seal
|
70081-SS0-003 |
— | ||
|
10
|
10
70100-SS0-003 Frame compSUNROOF |
70100-SS0-003 |
US $334.08 |
||
|
11
|
11
70205-SS0-003
Seal
|
70205-SS0-003 |
— | ||
|
12
|
12
70250-SS0-003ZZ
Panel comp
|
70250-SS0-003ZZ |
— | ||
|
13
|
13
70271-SS0-003
Holder
|
70271-SS0-003 |
— | ||
|
14
|
14
70272-SS0-003
Holder
|
70272-SS0-003 |
— | ||
|
15
|
15
70273-SS0-003
Holder
|
70273-SS0-003 |
— | ||
|
16
|
16
70278-SS0-003
Holder
|
70278-SS0-003 |
— | ||
|
17
|
17
83210-SS0-003ZC
Lining
|
83210-SS0-003ZC |
— | ||
|
18
|
18
90110-SS0-000 ScrewTAPPING, 4X8 |
90110-SS0-000 |
US $1.68 |
||
|
19
|
19
90302-SS0-000 NutFLANGE CAP, 5MM |
90302-SS0-000 |
US $1.68 |
||
|
20
|
20
90662-679-003
Grommet
|
90662-679-003 |
— | ||
|
21
|
21
91504-SE3-920 ClipSLIDE ROOF DRAIN TUBE |
91504-SE3-920 |
US $1.61 |
||
|
22
|
22
91504-SS0-003
Clip
|
91504-SS0-003 |
— | ||
|
23
|
23
91902-SB2-003 CushionWIRE HARNESS(50X100) |
91902-SB2-003 |
from US $3.26 |
||
|
24
|
24
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
25
|
25
93500-050-080-G ScrewPAN, 5X8 |
93500-050-080-G |
from US $0.37 |
||
|
26
|
26
94021-050-700-S NutCAP, 5MM |
94021-050-700-S |
from US $0.47 |
||
|
27
|
27
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
