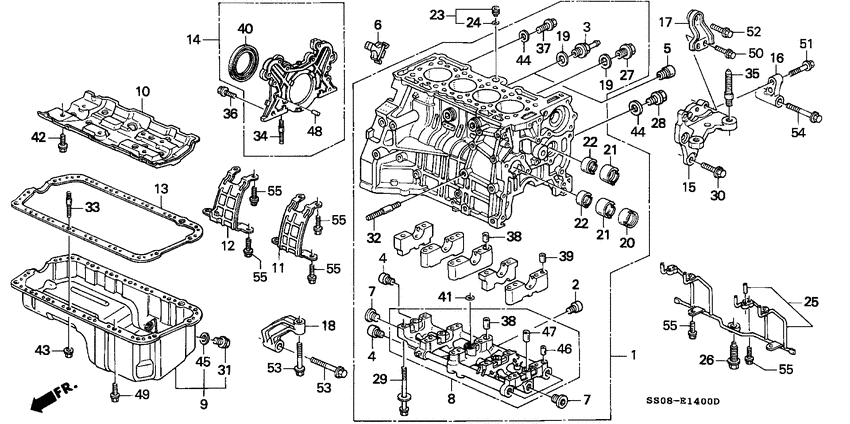

Cylinder block/oil pan Diagram Honda PRELUDE
- Year
- 1992
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 5MT
- Number of doors
- 2
- grade
- SI
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11000-PT0-010
Block assy
|
11000-PT0-010 |
— | ||
|
5
|
5
11108-PT0-003 BoltSEALING, 18MM |
11108-PT0-003 |
US $2.73 |
||
|
6
|
6
11109-PK2-010 SealTIMING RUBBER |
11109-PK2-010 |
from US $3.50 |
||
|
7
|
7
11126-PK1-003 BoltSEALING, 22MM |
11126-PK1-003 |
US $3.58 |
||
|
8
|
8
11130-PT0-000 Bridge compBEARING CAP |
11130-PT0-000 |
US $91.52 |
||
|
9
|
9
11200-PT0-000 Pan compOIL |
11200-PT0-000 |
US $200.96 |
||
|
13
|
13
11251-PT0-000
Gasket
|
11251-PT0-000 |
— | ||
|
14
|
14
11300-PT0-000
Cover assy.
|
11300-PT0-000 |
— | ||
|
15
|
15
11910-PT0-020
Bracket
|
11910-PT0-020 |
— | ||
|
16
|
16
11912-PT0-000
Stay a
|
11912-PT0-000 |
— | ||
|
19
|
19
12207-634-300
Washer
|
12207-634-300 |
— | ||
|
20
|
20
13421-PT0-003 MetalBALANCER SHAFT (NO.1) (DAIDO) |
13421-PT0-003 |
from US $23.28 |
||
|
21
|
21
13422-PT0-013 MetalBALANCER SHAFT (NO.2) (DAIDO) |
13422-PT0-013 |
from US $28.56 |
||
|
22
|
22
13423-PT0-003 MetalBALANCER SHAFT (NO.3) (DAIDO) |
13423-PT0-003 |
from US $23.28 |
||
|
23
|
23
15140-PH3-000 Orifice assyOIL CONTROL |
15140-PH3-000 |
from US $6.86 |
||
|
24
|
24
15142-PH3-003 O-ring10.8X2.4 (ARAI) |
15142-PH3-003 |
from US $2.96 |
||
|
27
|
27
90001-PM3-003 BoltDRAIN PLUG, 28MM |
90001-PM3-003 |
from US $7.16 |
||
|
29
|
29
90007-PK1-003 Bolt-washer11X121 |
90007-PK1-003 |
US $8.26 |
||
|
30
|
30
90008-PM3-000 BoltMOUNTING BRACKET, 10X32.5 |
90008-PM3-000 |
US $4.32 |
||
|
31
|
31
90009-PH1-000 BoltDRAIN PLUG, 14MM |
90009-PH1-000 |
from US $4.44 |
||
|
32
|
32
90030-PT0-000 BoltSTUD, 10X35 |
90030-PT0-000 |
US $3.92 |
||
|
33
|
33
90041-PA5-000 BoltSTUD, 6X28 |
90041-PA5-000 |
from US $2.52 |
||
|
34
|
34
90041-PA5-000 BoltSTUD, 6X28 |
90041-PA5-000 |
from US $2.52 |
||
|
35
|
35
90041-PT0-000 BoltSTUD, 12X60 |
90041-PT0-000 |
US $3.99 |
||
|
36
|
36
90051-PH7-000 BoltFLANGE, 6X18 |
90051-PH7-000 |
US $2.10 |
||
|
37
|
37
90061-PT0-000 BoltDRAIN PLUG, 12MM |
90061-PT0-000 |
from US $2.66 |
||
|
38
|
38
90705-PT0-000 Dowel pin16X22 |
90705-PT0-000 |
from US $1.48 |
||
|
39
|
39
90715-PC6-000 Dowel pin13X20 |
90715-PC6-000 |
from US $2.25 |
||
|
40
|
40
91214-PT0-004
Oil seal
|
91214-PT0-004 |
— | ||
|
40
|
40
91214-PC6-013
Oil seal
|
91214-PC6-013 |
— | ||
|
41
|
41
91323-PH7-003 PackingBEARING CAP BRIDGE (ARAI) |
91323-PH7-003 |
from US $1.76 |
||
|
43
|
43
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
44
|
44
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
45
|
45
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
|
46
|
46
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
47
|
47
94301-12200 Dowel pin12X20 |
94301-12200 |
from US $1.04 |
||
|
48
|
48
94303-06100 Dowel pin6X10 |
94303-06100 |
from US $0.93 |
||
|
49
|
49
95701-060-180-8 Bolt, FLANGE, 6X18 |
95701-060-180-8 |
from US $0.34 |
||
|
51
|
51
95701-080-400-8 BoltFLANGE, 8X40 |
95701-080-400-8 |
from US $0.74 |
||
|
54
|
54
95701-100-600-8 BoltFLANGE, 10X60 |
95701-100-600-8 |
from US $1.04 |
