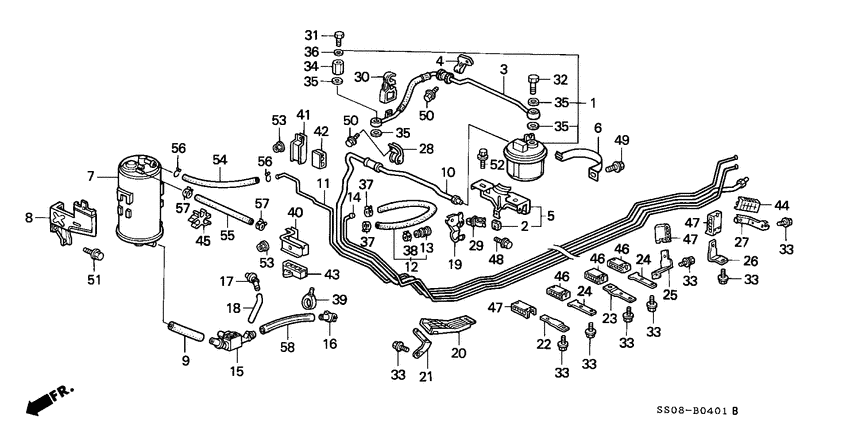

Fuel pipe (RH) Diagram Honda PRELUDE
- Year
- 1992
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 5MT
- Number of doors
- 2
- grade
- SI
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-SL5-A30
Strainer set
|
16010-SL5-A30 |
— | ||
|
2
|
2
16712-SF4-J30 CushionFUEL STRAINER |
16712-SF4-J30 |
US $1.96 |
||
|
3
|
3
16720-P13-003
Hose comp.
|
16720-P13-003 |
— | ||
|
4
|
4
16721-P13-000 ClampFUEL HOSE |
16721-P13-000 |
US $4.20 |
||
|
5
|
5
16918-SS0-931
Stay
|
16918-SS0-931 |
— | ||
|
6
|
6
16919-SL4-930
Band
|
16919-SL4-930 |
— | ||
|
10
|
10
17700-SS0-930
Pipe comp
|
17700-SS0-930 |
— | ||
|
12
|
12
17723-SS0-931
Hose
|
17723-SS0-931 |
— | ||
|
13
|
13
17727-SS0-930
Insulator rubber
|
17727-SS0-930 |
— | ||
|
14
|
14
17740-SS0-930
Pipe comp
|
17740-SS0-930 |
— | ||
|
19
|
19
17749-SS0-J31
Clamp
|
17749-SS0-J31 |
— | ||
|
20
|
20
17752-SS0-003
Protector
|
17752-SS0-003 |
— | ||
|
21
|
21
17762-SS0-000
Stay b
|
17762-SS0-000 |
— | ||
|
22
|
22
17763-SM4-000
Stay c
|
17763-SM4-000 |
— | ||
|
23
|
23
17764-SM4-000
Stay d
|
17764-SM4-000 |
— | ||
|
24
|
24
17765-SM4-000
Stay e
|
17765-SM4-000 |
— | ||
|
25
|
25
17766-SS0-000
Stay f
|
17766-SS0-000 |
— | ||
|
26
|
26
17767-SS0-000
Stay g
|
17767-SS0-000 |
— | ||
|
27
|
27
17768-SS0-000
Stay h
|
17768-SS0-000 |
— | ||
|
28
|
28
17768-SS0-930
Stay
|
17768-SS0-930 |
— | ||
|
30
|
30
36368-P13-003
Clamp
|
36368-P13-003 |
— | ||
|
31
|
31
90009-PE2-000
Bolt
|
90009-PE2-000 |
— | ||
|
32
|
32
90020-PD6-000 BoltSEALING, 12MM |
90020-PD6-000 |
from US $7.99 |
||
|
33
|
33
90146-SM4-000
Bolt-washer
|
90146-SM4-000 |
— | ||
|
34
|
34
90201-PT2-010
Nut a
|
90201-PT2-010 |
— | ||
|
35
|
35
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2.38 |
||
|
36
|
36
90430-PD6-003 WasherSEALING, 6MM |
90430-PD6-003 |
from US $1.48 |
||
|
37
|
37
91406-SL0-931 ClampFUEL HOSE, 15.5MM |
91406-SL0-931 |
from US $4 |
||
|
38
|
38
91462-SA5-950 Clamp d19MM |
91462-SA5-950 |
from US $2.17 |
||
|
40
|
40
91591-SS0-000
Clip b
|
91591-SS0-000 |
— | ||
|
43
|
43
91595-SS0-003
Clip b
|
91595-SS0-003 |
— | ||
|
44
|
44
91596-SM4-931
Clamp c
|
91596-SM4-931 |
— | ||
|
46
|
46
91598-SM4-931
Clamp b
|
91598-SM4-931 |
— | ||
|
47
|
47
91599-SM4-931
Clamp a
|
91599-SM4-931 |
— | ||
|
48
|
48
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
49
|
49
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.62 |
||
|
50
|
50
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
52
|
52
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
53
|
53
94070-06080 Nut-washer6MM |
94070-06080 |
from US $0.52 |
