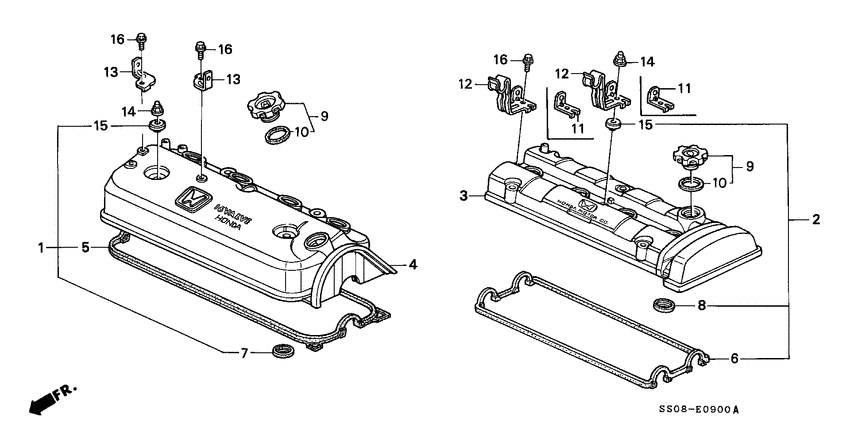

Cylinder head cover (SOHC/DOHC) Diagram Honda PRELUDE
- Year
- 1992
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 5MT
- Number of doors
- 2
- grade
- SI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12030-PT0-000 Packing setHEAD COVER |
12030-PT0-000 |
from US $74.39 |
||
|
4
|
4
12310-PT3-010
Cover comp.
|
12310-PT3-010 |
— | ||
|
5
|
5
12341-PT0-000 PackingCYLINDER HEAD COVER |
12341-PT0-000 |
from US $15.19 |
||
|
7
|
7
12342-PT0-000 Packing bHEAD COVER |
12342-PT0-000 |
from US $5.42 |
||
|
9
|
9
15610-PC6-000 Cap assy.OIL FILLER |
15610-PC6-000 |
from US $11.40 |
||
|
10
|
10
15613-PC6-000 Packing, Oil Filler |
15613-PC6-000 |
from US $4 |
||
|
13
|
13
32762-PT0-010
Stay b
|
32762-PT0-010 |
— | ||
|
14
|
14
90213-PH3-000 NutCAP, 6MM |
90213-PH3-000 |
from US $2.22 |
||
|
15
|
15
90441-PT0-000
Washer
|
90441-PT0-000 |
— | ||
|
16
|
16
96001-060-100-7 BoltFLANGE, 6X10 |
96001-060-100-7 |
from US $0.52 |
