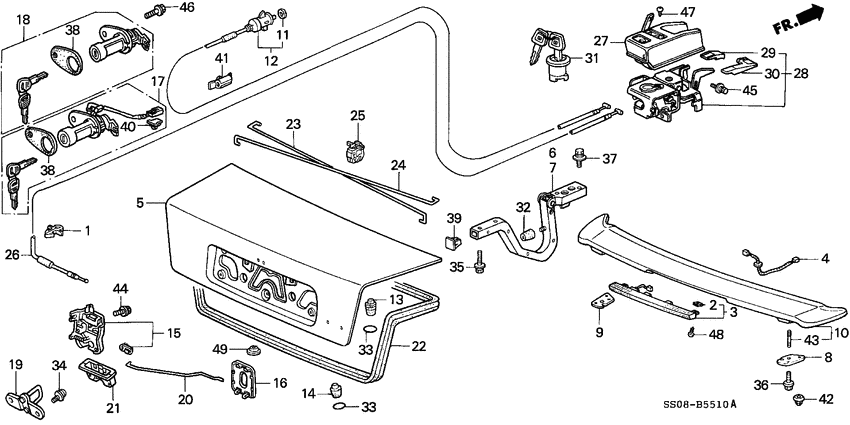

Trunk lid Diagram Honda PRELUDE
- Year
- 1992
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 5MT
- Number of doors
- 2
- grade
- SI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17706-SC3-003 ClipFUEL PIPE |
17706-SC3-003 |
from US $2.59 |
||
|
5
|
5
68500-SS0-A00ZZ
Lid comp
|
68500-SS0-A00ZZ |
— | ||
|
6
|
6
68610-SS0-000ZZ
Hinge comp
|
68610-SS0-000ZZ |
— | ||
|
7
|
7
68660-SS0-000ZZ
Hinge comp
|
68660-SS0-000ZZ |
— | ||
|
11
|
11
73219-693-951 SealFUEL LID OPENER (GREEN) |
73219-693-951 |
US $1.68 |
||
|
12
|
12
74411-SS0-A01
Cable
|
74411-SS0-A01 |
— | ||
|
13
|
13
74827-SH2-003
Stopper
|
74827-SH2-003 |
— | ||
|
14
|
14
74827-SK7-000
Stopper a
|
74827-SK7-000 |
— | ||
|
15
|
15
74851-SM4-003
Lock
|
74851-SM4-003 |
— | ||
|
16
|
16
74856-SS0-000
Cover
|
74856-SS0-000 |
— | ||
|
18
|
18
74861-SS0-003
Cylinder
|
74861-SS0-003 |
— | ||
|
19
|
19
74862-SE3-003
Striker
|
74862-SE3-003 |
— | ||
|
20
|
20
74863-SS0-003
Rod
|
74863-SS0-003 |
— | ||
|
21
|
21
74864-SM4-003
Cover
|
74864-SM4-003 |
— | ||
|
22
|
22
74865-SS0-000
Weatherstrip
|
74865-SS0-000 |
— | ||
|
23
|
23
74871-SS0-000
Spring
|
74871-SS0-000 |
— | ||
|
24
|
24
74872-SS0-000
Spring
|
74872-SS0-000 |
— | ||
|
25
|
25
74873-SM4-003 ClipTRUNK OPENER SPRING |
74873-SM4-003 |
from US $2.95 |
||
|
26
|
26
74880-SS0-A00
Cable
|
74880-SS0-A00 |
— | ||
|
27
|
27
74881-SM4-A01ZA
Cover
|
74881-SM4-A01ZA |
— | ||
|
28
|
28
74882-SM4-A01ZA
Opener assy
|
74882-SM4-A01ZA |
— | ||
|
29
|
29
74883-SM4-003ZA
Knob assy
|
74883-SM4-003ZA |
— | ||
|
30
|
30
74884-SM4-A01ZA
Knob assy
|
74884-SM4-A01ZA |
— | ||
|
31
|
31
74886-SH4-A03 CylinderTRUNK REMOTE CONTROL |
74886-SH4-A03 |
US $41.73 |
||
|
32
|
32
83418-SG3-003
Cushion
|
83418-SG3-003 |
— | ||
|
33
|
33
85268-SA0-000 ProtectionTAILGATE, 20MM (CIRCLE) |
85268-SA0-000 |
from US $1.63 |
||
|
34
|
34
90101-SM3-003 Screw-washer6X14 |
90101-SM3-003 |
US $1.26 |
||
|
35
|
35
90109-SM4-000 BoltSPECIAL, 6X35 |
90109-SM4-000 |
US $1.40 |
||
|
37
|
37
90127-SE0-000 Bolt-washer6X15 |
90127-SE0-000 |
US $2.94 |
||
|
38
|
38
90501-SS0-000
Packing
|
90501-SS0-000 |
— | ||
|
39
|
39
91517-SM4-003
Cap
|
91517-SM4-003 |
— | ||
|
41
|
41
91558-SE3-003 ClipHOOD WIRE |
91558-SE3-003 |
US $4 |
||
|
44
|
44
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
45
|
45
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
46
|
46
93403-060-200-8 Bolt-washer6X20 |
93403-060-200-8 |
from US $0.62 |
||
|
47
|
47
93903-44180 ScrewTAPPING, 4X8 |
93903-44180 |
US $0.37 |
||
|
49
|
49
95550-12000 PlugBLIND, 12MM |
95550-12000 |
US $1.55 |
