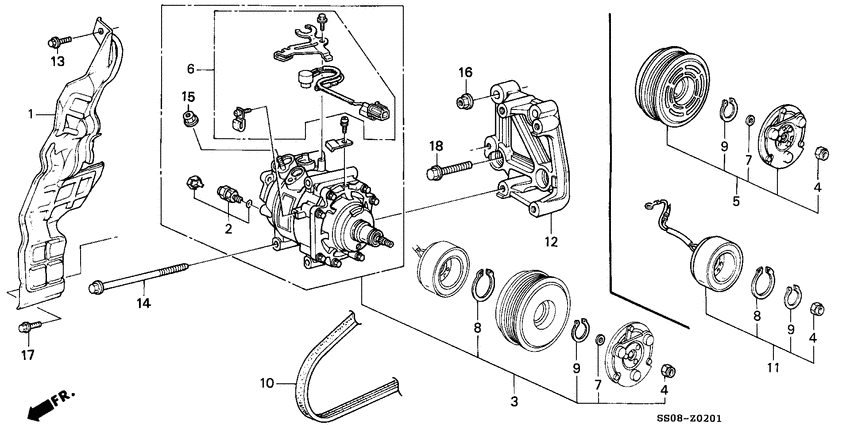

Air conditioner (COMPRESSOR; KEIHIN) Diagram Honda PRELUDE
- Year
- 1996
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- S
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18127-P13-010
Insulator
|
18127-P13-010 |
— | ||
|
2
|
2
38801-P06-006
Valve sub assy.
|
38801-P06-006 |
— | ||
|
3
|
3
38810-P13-016
Compressor comp.
|
38810-P13-016 |
— | ||
|
4
|
4
38829-P06-006 NutU |
38829-P06-006 |
US $1.68 |
||
|
5
|
5
38900-P14-016
Clutch set
|
38900-P14-016 |
— | ||
|
6
|
6
38908-P13-016
Protector set
|
38908-P13-016 |
— | ||
|
7
|
7
38912-P06-006
Shim set
|
38912-P06-006 |
— | ||
|
8
|
8
38913-P06-006 CirclipEXTERNAL, 45MM |
38913-P06-006 |
US $5.74 |
||
|
9
|
9
38914-P06-006
Circlip
|
38914-P06-006 |
— | ||
|
10
|
10
38920-P14-A01 BeltCOMPRESSOR (MITSUBOSHI) |
38920-P14-A01 |
US $37.12 |
||
|
10
|
10
38920-P14-A02 BeltCOMPRESSOR (BANDO) |
38920-P14-A02 |
US $37.12 |
||
|
11
|
11
38924-P13-016
Coil set
|
38924-P13-016 |
— | ||
|
12
|
12
38930-P13-000
Bracket
|
38930-P13-000 |
— | ||
|
13
|
13
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
14
|
14
90023-P01-000 BoltFLANGE, 8X105 |
90023-P01-000 |
US $3.71 |
||
|
15
|
15
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
16
|
16
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
17
|
17
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
18
|
18
95701-100-300-8 BoltFLANGE, 10X30 |
95701-100-300-8 |
from US $0.81 |
