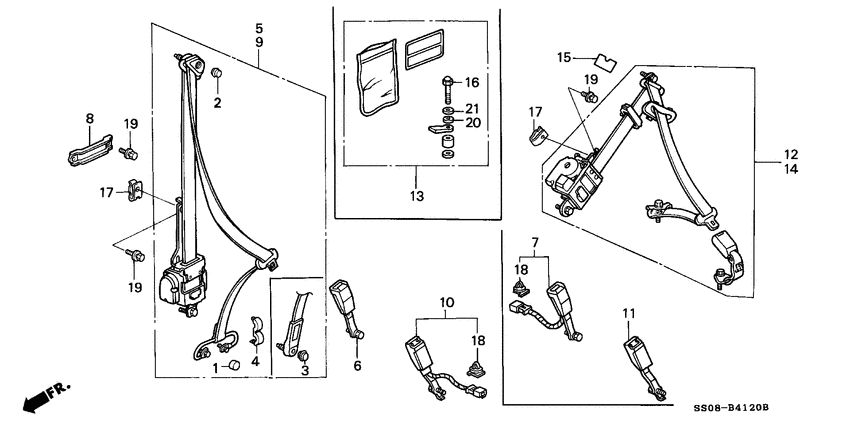

Seatbelts Diagram Honda PRELUDE
- Year
- 1996
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- S
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77636-692-004ZS
Cap
|
77636-692-004ZS |
— | ||
|
2
|
2
77682-SA5-004YW
Cap
|
77682-SA5-004YW |
— | ||
|
4
|
4
81403-SG0-004
Stopper
|
81403-SG0-004 |
— | ||
|
5
|
5
81450-SS0-Q02ZA
Tongue
|
81450-SS0-Q02ZA |
— | ||
|
7
|
7
81455-SS0-Q02ZA
Buckle
|
81455-SS0-Q02ZA |
— | ||
|
8
|
8
81495-SE0-A00 GuideWEBBING SHOULDER |
81495-SE0-A00 |
US $5.48 |
||
|
9
|
9
81850-SS0-Q02ZA
Tongue
|
81850-SS0-Q02ZA |
— | ||
|
11
|
11
81855-SS0-G02ZA
Buckle
|
81855-SS0-G02ZA |
— | ||
|
12
|
12
82400-SS0-G02ZA
Seatbelt assy.
|
82400-SS0-G02ZA |
— | ||
|
13
|
13
82410-ST7-Q00 Plate assy.CHILD SEAT ANCHOR |
82410-ST7-Q00 |
US $11.20 |
||
|
14
|
14
82800-SS0-G02ZA
Seatbelt assy.
|
82800-SS0-G02ZA |
— | ||
|
16
|
16
90135-ST7-Q00 BoltCAP, 5/16"X35 |
90135-ST7-Q00 |
US $3.43 |
||
|
17
|
17
90301-SS0-000 NutCLIP, 6MM |
90301-SS0-000 |
US $2.10 |
||
|
18
|
18
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.15 |
||
|
19
|
19
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
20
|
20
94102-08700 WasherPLAIN, 8MM |
94102-08700 |
from US $0.37 |
||
|
21
|
21
94111-08700 WasherSPRING, 8MM |
94111-08700 |
US $0.37 |
