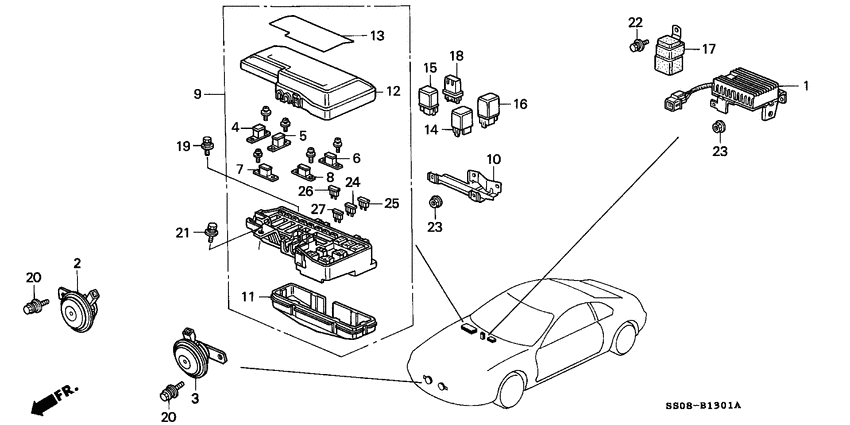

Control unit (ENGINE ROOM; RH) Diagram Honda PRELUDE
- Year
- 1996
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 5MT
- Number of doors
- 2
- grade
- S
- area code
- KQ
- right-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30700-SS0-013
Resistor assy.
|
30700-SS0-013 |
— | ||
|
2
|
2
38100-SM4-A02 Horn assyLOW |
38100-SM4-A02 |
US $66.42 |
||
|
3
|
3
38150-SM4-A02
Horn assy
|
38150-SM4-A02 |
— | ||
| replacement | |||||
|
3
|
3
38150-SH3-013 Horn assyHIGH (MITSUBA) |
38150-SH3-013 |
US $66.57 |
||
|
5
|
5
38212-SM4-003 FuseBLOCK (40A) |
38212-SM4-003 |
US $5.18 |
||
|
6
|
6
38213-SM4-003 FuseBLOCK (50A) |
38213-SM4-003 |
from US $6.36 |
||
|
8
|
8
38218-SM4-003 FuseBLOCK (100A) |
38218-SM4-003 |
from US $8.47 |
||
|
9
|
9
38250-SS0-A02
Box assy
|
38250-SS0-A02 |
— | ||
|
10
|
10
38251-SS0-000
Bracket
|
38251-SS0-000 |
— | ||
|
11
|
11
38251-SS0-003
Cover
|
38251-SS0-003 |
— | ||
|
12
|
12
38252-SS0-003
Cover
|
38252-SS0-003 |
— | ||
|
13
|
13
38253-SS0-A01
Label
|
38253-SS0-A01 |
— | ||
|
14
|
14
39762-SG0-003 Relay assyPOWER (5P) (DENSO) (056700-8160) |
39762-SG0-003 |
US $37.76 |
||
|
15
|
15
39792-SE0-004 Relay assyPOWER (4P) (OMRON) (G4R-1A21T-H22) |
39792-SE0-004 |
US $36.61 |
||
|
15
|
15
39792-SE0-003 Relay assyPOWER(4P)(DENSO) (056700-7410) |
39792-SE0-003 |
US $29.44 |
||
|
17
|
17
39793-SE3-004 Relay assyPOWER (5P) (058700-1081) (DENSO) |
39793-SE3-004 |
US $35.46 |
||
|
17
|
17
39793-SE3-003 Relay assyPOWER (5P) (MITSUBA) |
39793-SE3-003 |
US $37.13 |
||
|
18
|
18
39794-SL0-004 Relay assyPOWER(4P) (MITSUBA)(RC-2225)(BLACK) |
39794-SL0-004 |
US $16.51 |
||
|
18
|
18
39794-SE0-003 Relay assyPOWER(4P)(DENSO) (056700-7250) |
39794-SE0-003 |
US $18.43 |
||
|
19
|
19
90114-SM4-900 Bolt6X15 |
90114-SM4-900 |
US $3.91 |
||
|
20
|
20
90138-SM4-003 Bolt-washer8X14 |
90138-SM4-003 |
US $1.75 |
||
|
21
|
21
90182-SB6-000 Bolt-washer6X16 |
90182-SB6-000 |
from US $1.92 |
||
|
22
|
22
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
23
|
23
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
25
|
25
98200-31000 FuseBLADE (10A) |
98200-31000 |
from US $0.52 |
||
|
26
|
26
98200-31500 FuseBLADE (15A) |
98200-31500 |
from US $0.52 |
||
|
27
|
27
98200-32000 FuseBLADE (20A) |
98200-32000 |
from US $0.52 |
||
