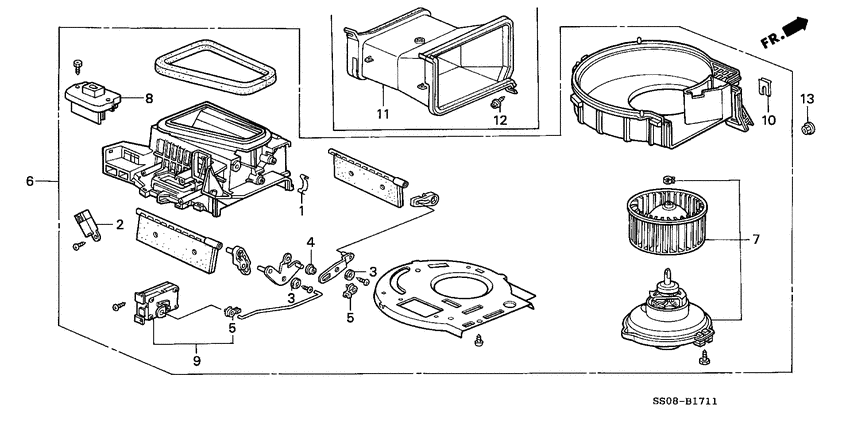

Heater blower (RH) Diagram Honda PRELUDE
- Year
- 1996
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 5MT
- Number of doors
- 2
- grade
- S
- area code
- KQ
- right-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39246-671-003
Clamp
|
39246-671-003 |
— | ||
|
3
|
3
79191-SD4-003
Washer
|
79191-SD4-003 |
— | ||
|
4
|
4
79192-SD4-003 Bush6.7MM |
79192-SD4-003 |
US $2.45 |
||
|
5
|
5
79195-SF1-003 HolderROD |
79195-SF1-003 |
US $1.82 |
||
|
6
|
6
79300-SS0-003
Blower assy
|
79300-SS0-003 |
— | ||
|
7
|
7
79310-SR3-003 Motor assy.BLOWER (DENSO) |
79310-SR3-003 |
US $357 |
||
|
8
|
8
79330-SS0-003
Resistor
|
79330-SS0-003 |
— | ||
|
9
|
9
79350-SS0-003
Motor assy.
|
79350-SS0-003 |
— | ||
|
10
|
10
79391-SM4-003
Holder
|
79391-SM4-003 |
— | ||
|
11
|
11
79800-SS0-003
Duct
|
79800-SS0-003 |
— | ||
|
12
|
12
90155-SE0-003 ScrewTAPPING, 6X20 |
90155-SE0-003 |
US $1.54 |
||
|
13
|
13
90301-SP0-003 NutPAINT CUTTING, 6MM |
90301-SP0-003 |
US $2.59 |
