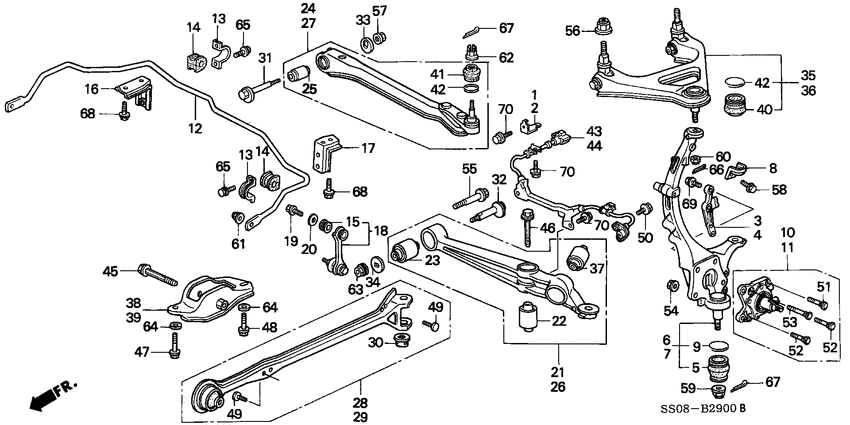

Rear stabilizer/ rear lower arm Diagram Honda PRELUDE
- Year
- 1996
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 5MT
- Number of doors
- 2
- grade
- S
- area code
- KQ
- right-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
47523-SS0-000
Stay
|
47523-SS0-000 |
— | ||
|
4
|
4
47524-SS0-000
Stay
|
47524-SS0-000 |
— | ||
|
5
|
5
51225-SL5-003 BootLOWER BALL DUST |
51225-SL5-003 |
US $10.26 |
||
|
6
|
6
52111-SS0-010
Knuckle comp
|
52111-SS0-010 |
— | ||
|
7
|
7
52116-SS0-010
Knuckle comp
|
52116-SS0-010 |
— | ||
|
8
|
8
52213-SS0-000
Protector
|
52213-SS0-000 |
— | ||
|
9
|
9
52226-SL0-003 CirclipLOWER BALL(MUSASHI) |
52226-SL0-003 |
from US $3.83 |
||
|
10
|
10
52250-SS0-000
Spindle assy
|
52250-SS0-000 |
— | ||
|
11
|
11
52260-SS0-000
Spindle assy
|
52260-SS0-000 |
— | ||
|
12
|
12
52300-SS0-003
Spring
|
52300-SS0-003 |
— | ||
|
13
|
13
52308-SS0-000 HolderRR. STABILIZER |
52308-SS0-000 |
from US $6.22 |
||
|
14
|
14
52315-SS0-010 BushRR. STABILIZER HOLDER |
52315-SS0-010 |
US $6.77 |
||
|
15
|
15
52316-SM4-960
Rubber
|
52316-SM4-960 |
— | ||
|
16
|
16
52317-SS0-000 BracketR. RR. STABILIZER |
52317-SS0-000 |
US $11.48 |
||
|
17
|
17
52318-SS0-000
Bracket
|
52318-SS0-000 |
— | ||
|
18
|
18
52320-SS0-003
Link assy
|
52320-SS0-003 |
— | ||
|
19
|
19
52323-SS0-003
Bolt
|
52323-SS0-003 |
— | ||
|
20
|
20
52328-SS0-010
Washer
|
52328-SS0-010 |
— | ||
|
21
|
21
52350-SS0-020 Arm compR. RR. LOWER |
52350-SS0-020 |
US $256 |
||
|
22
|
22
52353-SM4-962
Bush
|
52353-SM4-962 |
— | ||
|
23
|
23
52354-SS0-023
Bush a
|
52354-SS0-023 |
— | ||
|
24
|
24
52355-SS0-A01
Arm assy. b
|
52355-SS0-A01 |
— | ||
|
25
|
25
52357-SS0-013
Bush b
|
52357-SS0-013 |
— | ||
|
26
|
26
52360-SS0-020 Arm compL. RR. LOWER |
52360-SS0-020 |
US $256 |
||
|
27
|
27
52365-SS0-A01
Arm assy. b
|
52365-SS0-A01 |
— | ||
|
28
|
28
52371-SS0-A00
Arm comp
|
52371-SS0-A00 |
— | ||
|
29
|
29
52372-SS0-A00
Arm comp
|
52372-SS0-A00 |
— | ||
|
30
|
30
52379-SM4-961
Cap
|
52379-SM4-961 |
— | ||
|
31
|
31
52387-SE0-023 BoltLOWER ARM ADJUSTING |
52387-SE0-023 |
US $11.69 |
||
|
33
|
33
52388-SE0-030 PlateCAM |
52388-SE0-030 |
US $3.15 |
||
|
35
|
35
52390-SS0-003
Arm assy.
|
52390-SS0-003 |
— | ||
|
36
|
36
52400-SS0-003
Arm assy.
|
52400-SS0-003 |
— | ||
|
37
|
37
52622-SS0-003 BushRR. SHOCK ABSORBER LOWER |
52622-SS0-003 |
from US $17.54 |
||
|
38
|
38
52677-SS0-000
Bracket
|
52677-SS0-000 |
— | ||
|
39
|
39
52678-SS0-000
Bracket
|
52678-SS0-000 |
— | ||
|
40
|
40
53546-SA0-003 BootTIE ROD END (MUSASHI) |
53546-SA0-003 |
US $13.44 |
||
|
41
|
41
53546-SD4-003 BootTIE ROD END (MUSASHI) |
53546-SD4-003 |
US $14.06 |
||
|
42
|
42
53548-SL0-A01 CirclipTIE ROD |
53548-SL0-A01 |
US $3.99 |
||
|
45
|
45
90020-SM4-962
Bolt
|
90020-SM4-962 |
— | ||
|
46
|
46
90020-SM4-962
Bolt
|
90020-SM4-962 |
— | ||
|
47
|
47
90022-SM4-003 BoltTRAILING ARM BRACKET, 12X69 |
90022-SM4-003 |
US $6.44 |
||
|
48
|
48
90023-SM4-003 BoltTRAILING ARM BRACKET, 12X55.5 |
90023-SM4-003 |
US $6.44 |
||
|
49
|
49
90028-SM4-000 BoltTRAILING, 8X19 |
90028-SM4-000 |
US $1.40 |
||
|
51
|
51
90163-SS0-003
Bolt
|
90163-SS0-003 |
— | ||
|
52
|
52
90164-SM4-961
Bolt
|
90164-SM4-961 |
— | ||
|
53
|
53
90164-SS0-003
Bolt
|
90164-SS0-003 |
— | ||
|
54
|
54
90166-SM4-003 NutSELF-LOCK |
90166-SM4-003 |
US $2.80 |
||
|
55
|
55
90167-SF1-003
Bolt
|
90167-SF1-003 |
— | ||
|
56
|
56
90215-SB0-003 NutSELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
90215-SB0-003 |
from US $3.20 |
||
|
57
|
57
90216-SE0-010
Nut
|
90216-SE0-010 |
— | ||
| replacement | |||||
|
57
|
57
90216-SE0-305 NUT, LWR ARM |
90216-SE0-305 |
from US $5.02 |
||
|
58
|
58
90230-SB0-950 Bolt-washer6X12 (GREEN) |
90230-SB0-950 |
US $1.26 |
||
|
59
|
59
90307-SL5-000 NutCASTLE, 14MM |
90307-SL5-000 |
US $2.94 |
||
|
60
|
60
90321-SE0-000 NutUPPER BALL PIN, 10MM |
90321-SE0-000 |
US $2.60 |
||
|
61
|
61
90362-SG0-013
Nut
|
90362-SG0-013 |
— | ||
| replacement | |||||
|
61
|
61
90215-SMA-003 Nut |
90215-SMA-003 |
US $3.91 |
||
|
62
|
62
90363-SF1-000 NutCASTLE, 12MM |
90363-SF1-000 |
from US $3.48 |
||
|
64
|
64
90438-SE0-000 WasherTRAILING, 12MM |
90438-SE0-000 |
US $8.65 |
||
|
65
|
65
93412-080-160-8 Bolt-washer8X16 |
93412-080-160-8 |
from US $0.67 |
||
| replacement | |||||
|
65
|
65
93402-080-160-8 Bolt-washer8X16 |
93402-080-160-8 |
from US $0.67 |
||
|
66
|
66
94201-20180 PinSPLIT, 2.0X18 |
94201-20180 |
from US $0.37 |
||
| replacements | |||||
|
66
|
66
94201-29220
Pin
|
94201-29220 |
— | ||
|
66
|
66
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
66
|
66
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
67
|
67
94201-30220 Pin, SPLIT, 3.0X22 |
94201-30220 |
from US $0.44 |
||
|
68
|
68
95801-080-200-8 BoltFLANGE, 8X20 |
95801-080-200-8 |
from US $0.59 |
||
| replacement | |||||
|
68
|
68
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
||
|
69
|
69
95801-080-250-8 BoltFLANGE, 8X25 |
95801-080-250-8 |
US $0.70 |
||
| replacement | |||||
|
69
|
69
95701-080-250-8 BoltFLANGE, 8X25 |
95701-080-250-8 |
from US $0.74 |
||
